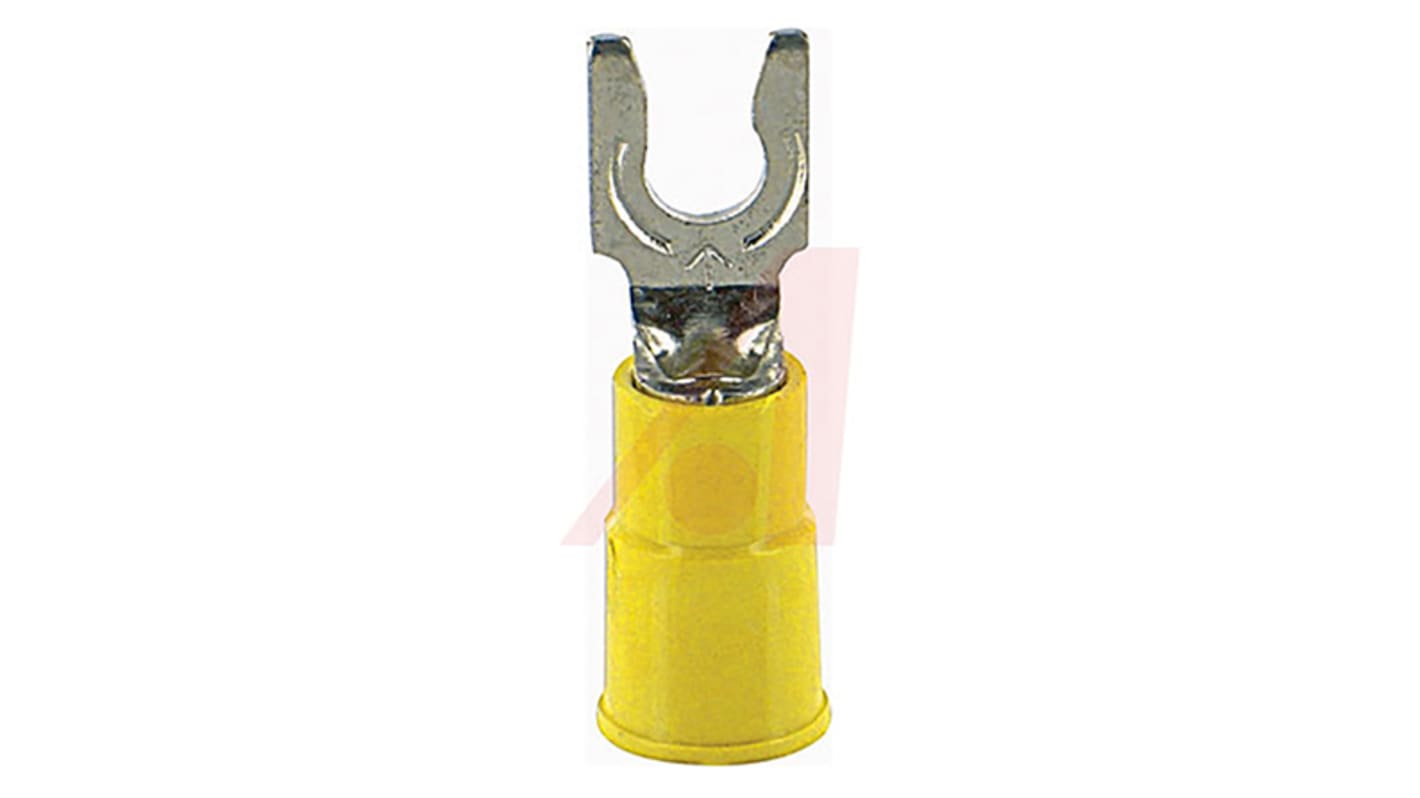

3M, LFV Insulated Crimp Spade Connector, 12AWG to 10AWG, #6 Stud Size Vinyl, Yellow
RS Stock No.:
837-7143
Mfr. Part No.:
LFV10-6Q
Brand:
3M
View all Fork Terminals
Discontinued product
RS Stock No.:
837-7143
Mfr. Part No.:
LFV10-6Q
Brand:
3M
Technical Reference
Legislation and Compliance
Product Details
Specifications
Datasheet
RoHS Certificate of Compliance
Statement of conformity
COO (Country of Origin):
US
3M Highland™ Locking Fork
These locking forks feature a spring-like tongue which locks into place around the stud even when the mount screw is not tightened. Once locked, extra force is required to remove it from the stud helping to reduce accidental disconnection.
Barrel Style: Butted
Insulation Material: Vinyl
Terminal Style: Locking Terminal Type
Standards
UL and CSA
3M Highland™ Series
Attribute
Value
Series
LFV
Insulation
Insulated
Insulation Material
Vinyl
Width
7.11mm
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
10AWG
Shrouded/Unshrouded
Unshrouded
Stud Size
#6
Colour
Yellow
Contact Plating
Tin
Overall Length
26.16mm
Contact Material
ETP Copper
Thickness
1.02mm
