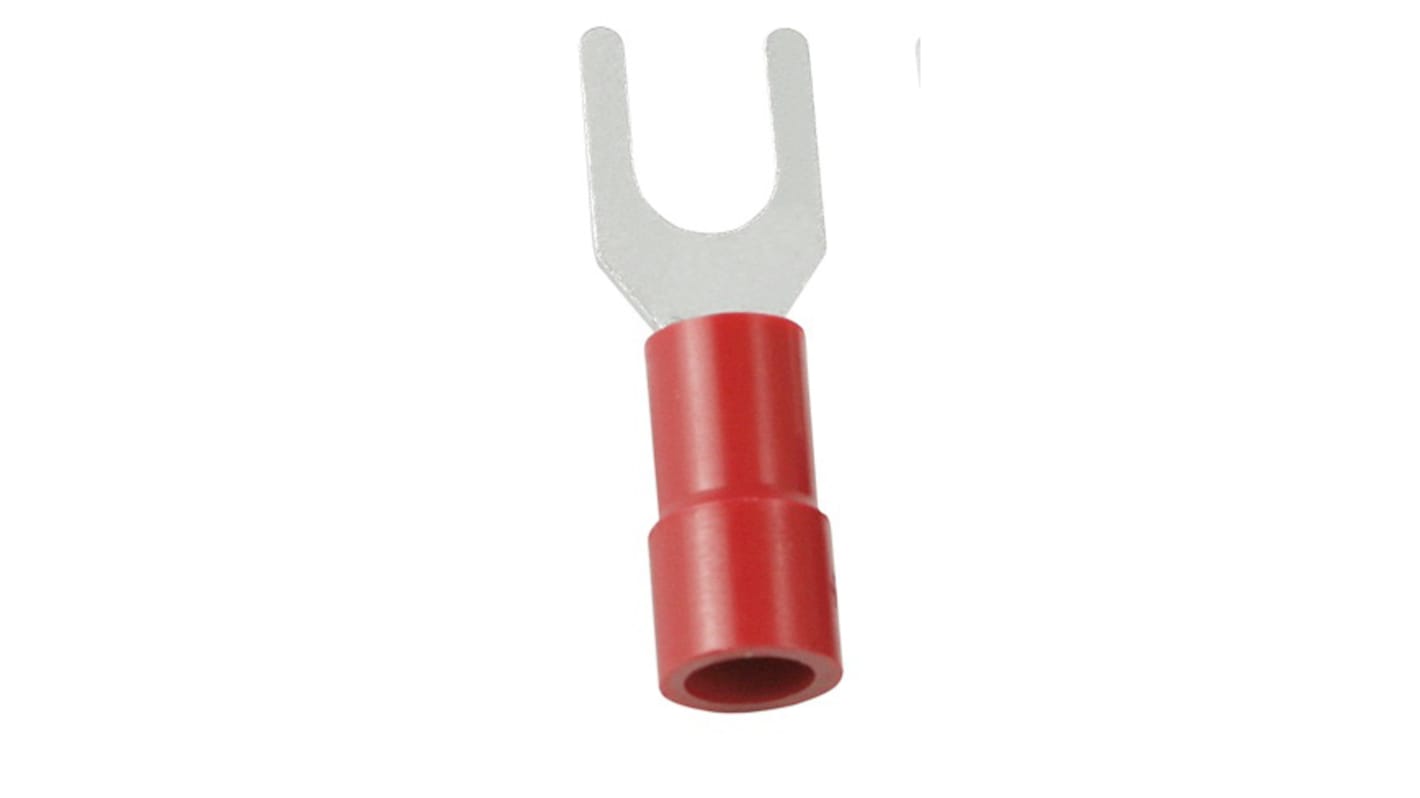

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.7mm Stud Size Vinyl, Red
- RS Stock No.:
- 178-8730
- Brand:
- RS PRO
Available to back order for despatch 04/06/2024
Added
Price Each (In a Bag of 100)
£0.046
(exc. VAT)
£0.055
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.046 | £4.60 |
| 1000 - 1900 | £0.042 | £4.20 |
| 2000 - 4900 | £0.038 | £3.80 |
| 5000 - 9900 | £0.035 | £3.50 |
| 10000 + | £0.033 | £3.30 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.7mm Stud Size Vinyl, Red
- RS Stock No.
- 178-8710
Price Each (In a Bag of 100)
£0.042
(exc. VAT)
£0.05
(inc. VAT)
- RS Stock No.:
- 178-8730
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Insulated spade connector has overall length of 22mm with thickness of 0.75mm and wire size of 16AWG.
Colour: Red
Maximum Temperature Range: 105°C
Maximum Temperature Range: 105°C
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Width | 7.2mm |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 3.7mm |
| Colour | Red |
| Overall Length | 22mm |
| Contact Material | Copper |
| Thickness | 0.75mm |
