Sauter FH 500UK Force Gauge 2000Hz RS232, Range: 500N, Resolution: 0.1 N, With RS Calibration
- RS Stock No.:
- 181-1971
- Mfr. Part No.:
- FH 500UK
- Brand:
- Sauter
2 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£691.30
(exc. VAT)
£829.56
(inc. VAT)
| Units | Per unit |
| 1 + | £691.30 |
- RS Stock No.:
- 181-1971
- Mfr. Part No.:
- FH 500UK
- Brand:
- Sauter
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

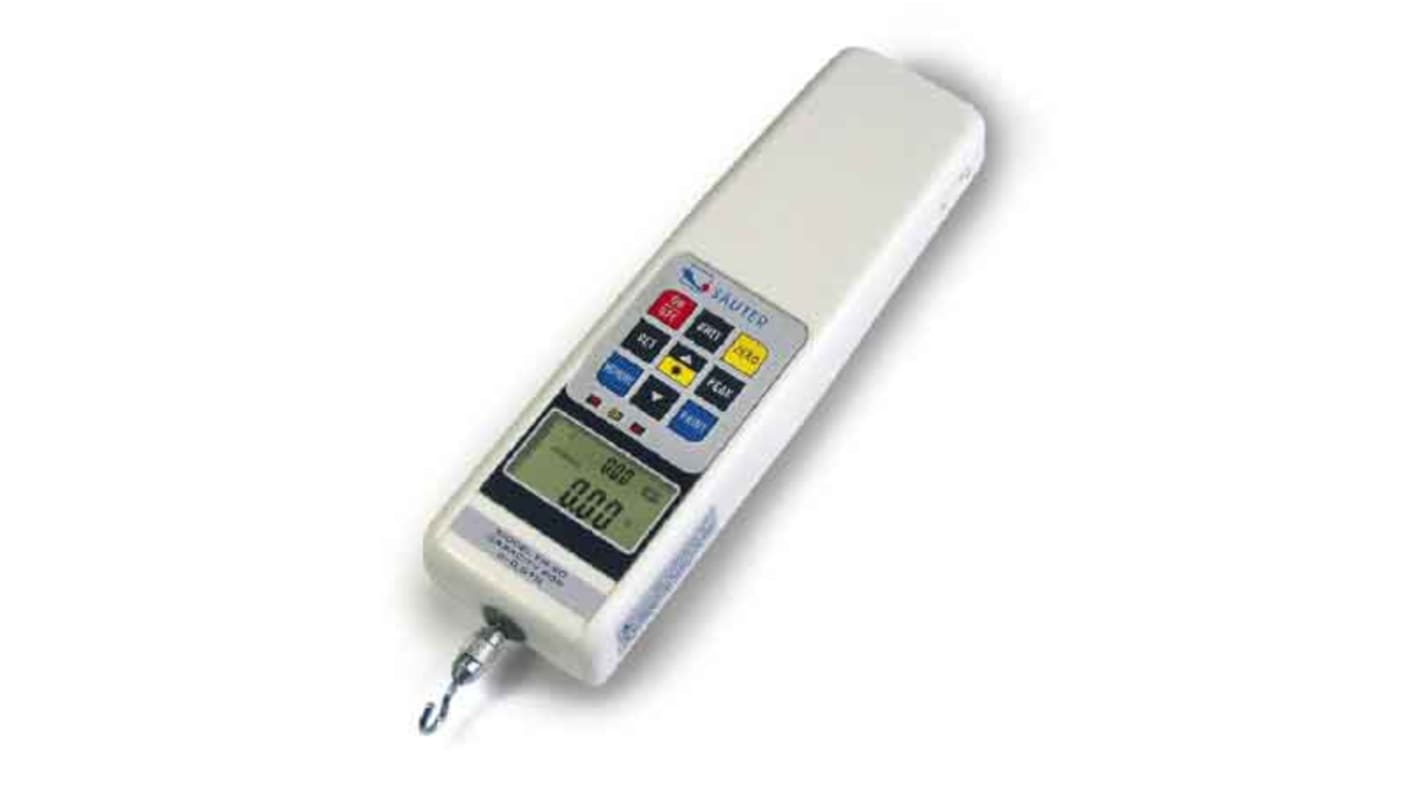

Sauter Force Gauge
The Sauter digital force gauge has a range of up to 500N. This gauge belongs to the Sauter FH series. It is a universal digital force gauge for tension and compression tests. This is lightweight and easy to carry. The gauge unit comes with rechargeable batteries and a charger with a hard carrying case.
Features and Benefits
• Turnable display with backlight
• Can be mounted on all the manual test stands
• Digital force gauge with an internal sensor
• Data interface RS-232 is included
• Standard attachments: as shown below, extension rod: 90mm
• Delivered in a hard carrying case
• Selectable measuring units: N, lb and kg
• Real-time or peak hold mode to observe transients or capture peaks
• Function to set limits, programming of maximum/minimum, in pull and push direction, with an output of audible and optical signal
• Ideal mode for efficient and accurate testing of standard parts
• Auto power OFF
• Mini statistics kit: Calculates the average result from up to 10 stored single results
• Can be mounted on all the manual test stands
• Digital force gauge with an internal sensor
• Data interface RS-232 is included
• Standard attachments: as shown below, extension rod: 90mm
• Delivered in a hard carrying case
• Selectable measuring units: N, lb and kg
• Real-time or peak hold mode to observe transients or capture peaks
• Function to set limits, programming of maximum/minimum, in pull and push direction, with an output of audible and optical signal
• Ideal mode for efficient and accurate testing of standard parts
• Auto power OFF
• Mini statistics kit: Calculates the average result from up to 10 stored single results
Applications
• Material force testing
• Quality control and assurance
• Spring testing
• Opening force testing
• Switch force activation
• Medical field
• Quality control and assurance
• Spring testing
• Opening force testing
• Switch force activation
• Medical field
Specifications
Attribute | Value |
|---|---|
| Range | 500N |
| Best Accuracy | ±0.5 % |
| Measurement Units | kg, kN, lb, N, t |
| Resolution | 0.1 N |
| Sampling Rate | 2000Hz |
| Digital Output | RS232 |
| Battery Life | 12 h |
| Battery Type | Rechargeable |
| Visual Alarm | Yes |
| Plug Type | Type C - European Plug |
| Calibrated | RSCAL |
| Weight | 640g |
| Length | 66mm |
| Height | 230mm |
| Width | 36mm |
