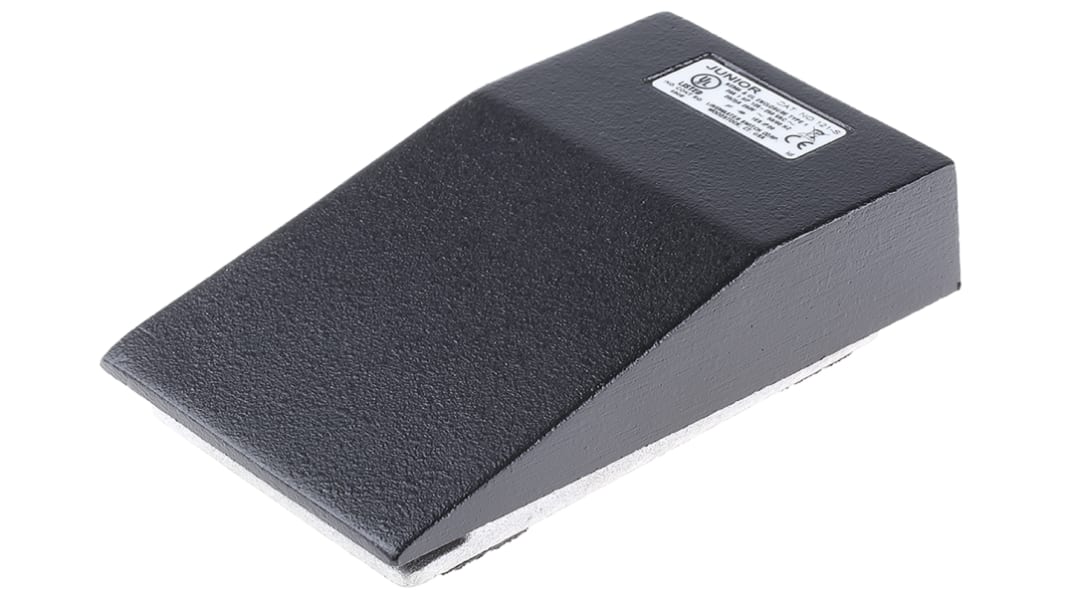

RS PRO Medium Duty Momentary Foot Switch - SPCO Aluminium 20A Contact Current, 250 V ac Contact Voltage
- RS Stock No.:
- 116-669
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£128.38
(exc. VAT)
£154.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £128.38 |
| 5 - 9 | £124.53 |
| 10 + | £119.14 |
*price indicative
- RS Stock No.:
- 116-669
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | RS PRO | |
| Product Type | Foot Switch | |
| Contact Configuration | SPCO | |
| Switch Operation | Momentary | |
| Housing Material | Aluminium | |
| Contact AC Voltage | 250V ac | |
| Switch Contact Current | 20A | |
| Switch Environment | Medium Duty | |
| IP Rating | IP20 | |
| Terminal Type | Relief Clamp | |
| Guard Cover | No | |
| Length | 140.49mm | |
| Height | 37.29mm | |
| Standards/Approvals | CE, RoHS | |
| Width | 82.55mm | |
| Hazardous Area Certification | No | |
| Colour | Black | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series RS PRO | ||
Product Type Foot Switch | ||
Contact Configuration SPCO | ||
Switch Operation Momentary | ||
Housing Material Aluminium | ||
Contact AC Voltage 250V ac | ||
Switch Contact Current 20A | ||
Switch Environment Medium Duty | ||
IP Rating IP20 | ||
Terminal Type Relief Clamp | ||
Guard Cover No | ||
Length 140.49mm | ||
Height 37.29mm | ||
Standards/Approvals CE, RoHS | ||
Width 82.55mm | ||
Hazardous Area Certification No | ||
Colour Black | ||
- COO (Country of Origin):
- US
Junior Foot Switch
Contact rating 20A 125-250Vac SPDT momentary
Black aluminum casting with non-skid base pad
Rated to IP20
Standards
EN 60529
Supplied with
Strain relief clamp
