RS PRO Medium Duty Momentary Foot Switch - Plastic Case Material, SP-CO, 10 A Contact Current, 250V Contact Voltage
- RS Stock No.:
- 122-2793
- Brand:
- RS PRO
Subtotal (1 unit)*
£65.63
(exc. VAT)
£78.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 119 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.63 |
*price indicative
- RS Stock No.:
- 122-2793
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Foot Switch Type | Momentary Foot Switch | |
| Contact Configuration | SP-CO | |
| Switch Operation | Momentary | |
| Case Material | Plastic | |
| Contact Voltage Rating AC | 250V | |
| Contact Voltage Rating DC | 500V | |
| Contact Current Rating | 10 A | |
| Switch Environment | Medium Duty | |
| IP Rating | IP68 | |
| Colour | Black | |
| Length | 110mm | |
| Dimensions | 110 x 170.5 x 50mm | |
| Width | 170.5mm | |
| Height | 50mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Foot Switch Type Momentary Foot Switch | ||
Contact Configuration SP-CO | ||
Switch Operation Momentary | ||
Case Material Plastic | ||
Contact Voltage Rating AC 250V | ||
Contact Voltage Rating DC 500V | ||
Contact Current Rating 10 A | ||
Switch Environment Medium Duty | ||
IP Rating IP68 | ||
Colour Black | ||
Length 110mm | ||
Dimensions 110 x 170.5 x 50mm | ||
Width 170.5mm | ||
Height 50mm | ||
- COO (Country of Origin):
- CN

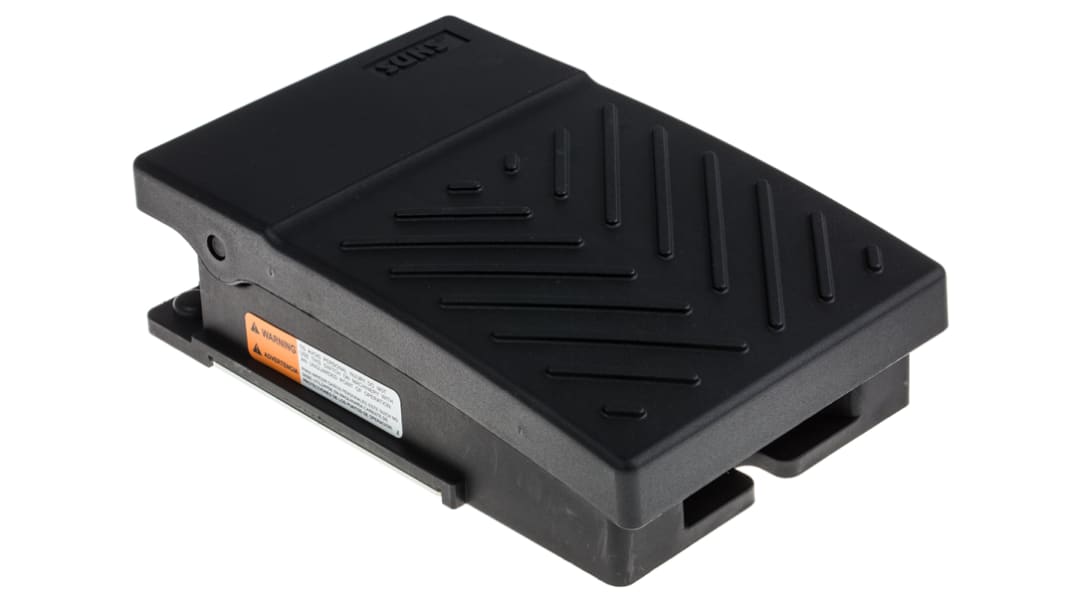

RS PRO Medium Duty Momentary Foot Switch – Plastic Case Material, SP-CO, 10 A Contact Current, 250 V Contact Voltage
Looking for a strong and reliable momentary foot switch? You can use this RS PRO switch in applications where you need to continually press the pedal to operate your equipment and turn it off by removing the pressure.
The switch has a robust body made from plastic reinforced with glass fibre, ensuring excellent insulation and durability. It features a slow action break, which gives you control over your equipment, allowing you to start it smoothly. The product also features galvanically insulated contacts for greater safety. It has screw terminals with self-lifting clamps to make sure you can connect it easily.
The switch is Ingress Protection (IP) IP68 rated, which means it will withstand dust, dirt and a temporary submersion in water. It also meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge requirements, so you can be rest assured the hazard of a discharge is reduced.
The switch has a robust body made from plastic reinforced with glass fibre, ensuring excellent insulation and durability. It features a slow action break, which gives you control over your equipment, allowing you to start it smoothly. The product also features galvanically insulated contacts for greater safety. It has screw terminals with self-lifting clamps to make sure you can connect it easily.
The switch is Ingress Protection (IP) IP68 rated, which means it will withstand dust, dirt and a temporary submersion in water. It also meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge requirements, so you can be rest assured the hazard of a discharge is reduced.
Features and Benefits
• Plastic case material
• Black colour
• SP-CO (single pole, change over) contact configuration
• Contact current rating of 10 A
• Contact voltage rating of 250 V AC
• Contact voltage rating of 500 V DC
• Dimensions of 110 (length) x 170.5 (width) x 50 mm (height)
• IP (Ingress Protection) rating of IP68
• Medium-duty switch environment
• Momentary switch operation
• Black colour
• SP-CO (single pole, change over) contact configuration
• Contact current rating of 10 A
• Contact voltage rating of 250 V AC
• Contact voltage rating of 500 V DC
• Dimensions of 110 (length) x 170.5 (width) x 50 mm (height)
• IP (Ingress Protection) rating of IP68
• Medium-duty switch environment
• Momentary switch operation
