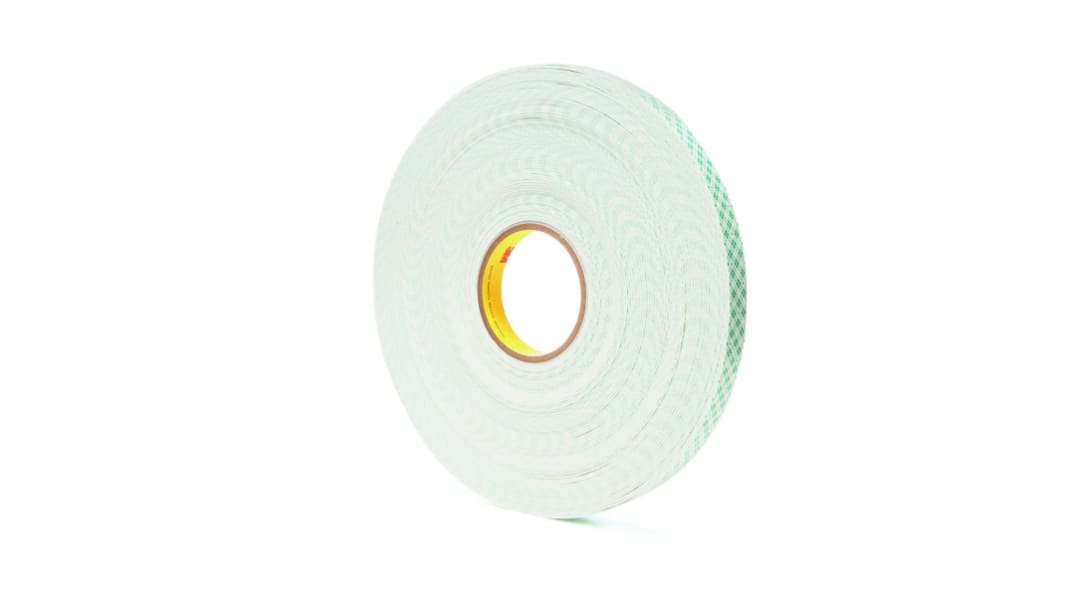

3M 3M™ 4016 White Foam Tape, 19mm x 13.7m, 1.6mm Thick

  • RS Stock No. 763-8801
  • Mfr. Part No. 3M 4016 19mm x 13,7m
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

3M™ Double Coated Urethane Foam Tape 4016, Creme 19 mm x 13.7 m

The 3M™ 4016 is a 1.6 mm white double coated Urethane foam tape. The open cell Urethane foam tape that offers high shear strength when used in interior applications. This extraordinary tape adheres to broad ranges of surfaces, including metals, plastics and wood.


The 3M™ 4016 provides high strength and long-term durability through a general purpose rubber adhesive. The addition of a paper lining provides conformability and reliable performance for industrial applications. Its high-temperature performance in applications up 104°C for a prolonged time. It is designed for good adhesion metals, high surface energy plastics, with good chemical and temperature resistance.

Features and Benefits

High shear strength on metal and high surface energy plasticsDurable foam is ideal for interior mounting applicationsOff-white colour provides a clean appearanceIdeal for bonding, attaching and mountingThick foam dampens and prevents vibrationOpen-cell structure aids component coolingSuitable for soft PVC

Benefits of choosing 3M Foam Tape

Design and deliver with 3M™ Tape. Utilizing the unique rubber adhesive on both sides of a conformable foam strip makes it the most capable Urethane Tape. It's been designed to adhere to a variety of surfaces like plastics, metals, wood and glass.

Unconventional foam tape. 3M invented the first foam tape, they have been at the forefront of improving the properties of this tape to ensure extreme reliability, consistent durability and a consistent bond. The 3M™ Foam Tape is a proven alternative to rivets, screws and welding for a number of applications

Reliability and durability. 3M™ Foam Tape does not only offer a strong reliable yet durable bond it enhances the appearance of finished goods. It does this by eliminating the rivet and screw heads as well as visible welds whilst providing an immediate bond. Fastening the tape is a quicker process than conventional methods such as drilling, fastening or liquid adhesives. The unique acrylic adhesive is extremely durable and resistant to changing temperatures over time from the heat of Dubai to the cold of Norway.

Attribute Value
Width 19mm
Thickness 1.6mm
Length 13.7m
Backing Material Polyurethane
Colour White
Adhesion Strength 34 N/cm
Single/Double Sided Double Sided
Foam Density 175kg/m³
Adhesive Material Acrylic
Tensile Strength 17N/cm
Model Number 3M™ 4016
Maximum Operating Temperature +104°C
Adhesion Strength Unfaced Side 7.7N/cm
47 in stock for FREE next working day delivery
239 available from Europe for delivery within 1 working day(s).
Price Each
£ 13.73
(exc. VAT)
£ 16.48
(inc. VAT)
Per unit
1 - 5
6 - 14
15 +
