RS PRO Paddle Flow Switch for Liquid, 7.5L/min Min, 10L/min Max

View all Flow Sensors

Subtotal (1 unit)*

£269.86

(exc. VAT)

£323.83

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£269.86

*price indicative

RS Stock No.:
613-4222
Distrelec Article No.:
303-95-279
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Flow Switch

Media Monitored

Liquid

Device Type

Paddle

Minimum Flow Rate

7.5L/min

Maximum Flow Rate

10L/min

Housing Material

Nickel Plated Brass

Connection Type

3/4 in BSP Female

Maximum Pressure

25bar

IP Rating

IP65

Maximum Supply Voltage

250V ac

Minimum Operating Temperature

110°C

Maximum Media Temperature

110°C

Maximum Operating Temperature

110°C

Standards/Approvals

No

Current Rating

5A

Non Compliant

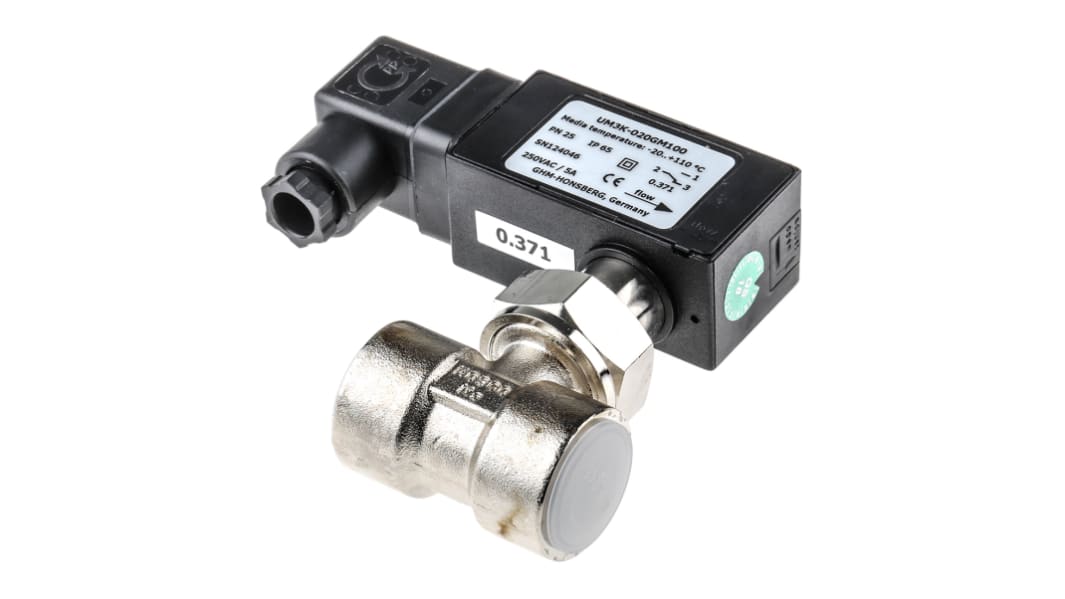

RS PRO Flow Switch, Max. 10 L/min


This flow switch lets you monitor the flow of a liquid or gas. It has a 3/4 in British Standard Pipe (BSP) female connection and is useful for indicating flow problems in equipment.

The flow switch features a paddle with a magnet that approaches a second magnet at a preset flow rate between 7.5 and 10 litres per minute. This second magnet activates a microswitch that adjusts the flow when the rate is outside the preset range.

Part of the RS PRO series, this product is tested for quality and safety. It features a stainless steel paddle and a nickel-plated brass body for corrosion resistance. An IP65 rating means it's protected from water splashes and dust, and it can withstand a maximum pressure of 25 bar and a maximum operating temperature of +110°C.

You'll find this flow switch useful for detecting problems in ventilation, cooling and heating systems.

Features and Benefits


• Paddle flow switch for monitoring liquid and gas flow

• Functional parts made of stainless steel

• Body made from nickel-plated brass

• 3/4 in BSP female connection

• Minimum flow rate of 7.5 L/min

• Maximum flow rate of 10 L/min

• Maximum pressure of 25 bar

• Maximum operating temperature of +110°C

• Supply voltage of 250 V AC

• Current rating of 5 A

• Height of 88 mm

• Length of 50 mm

• Width of 12 mm

• Weight of 0.35 kg

• Hermetic separation of electrical and hydraulic components

• DIN 43650-A plug

• IP65 rating (resistant to dust and water spray)
