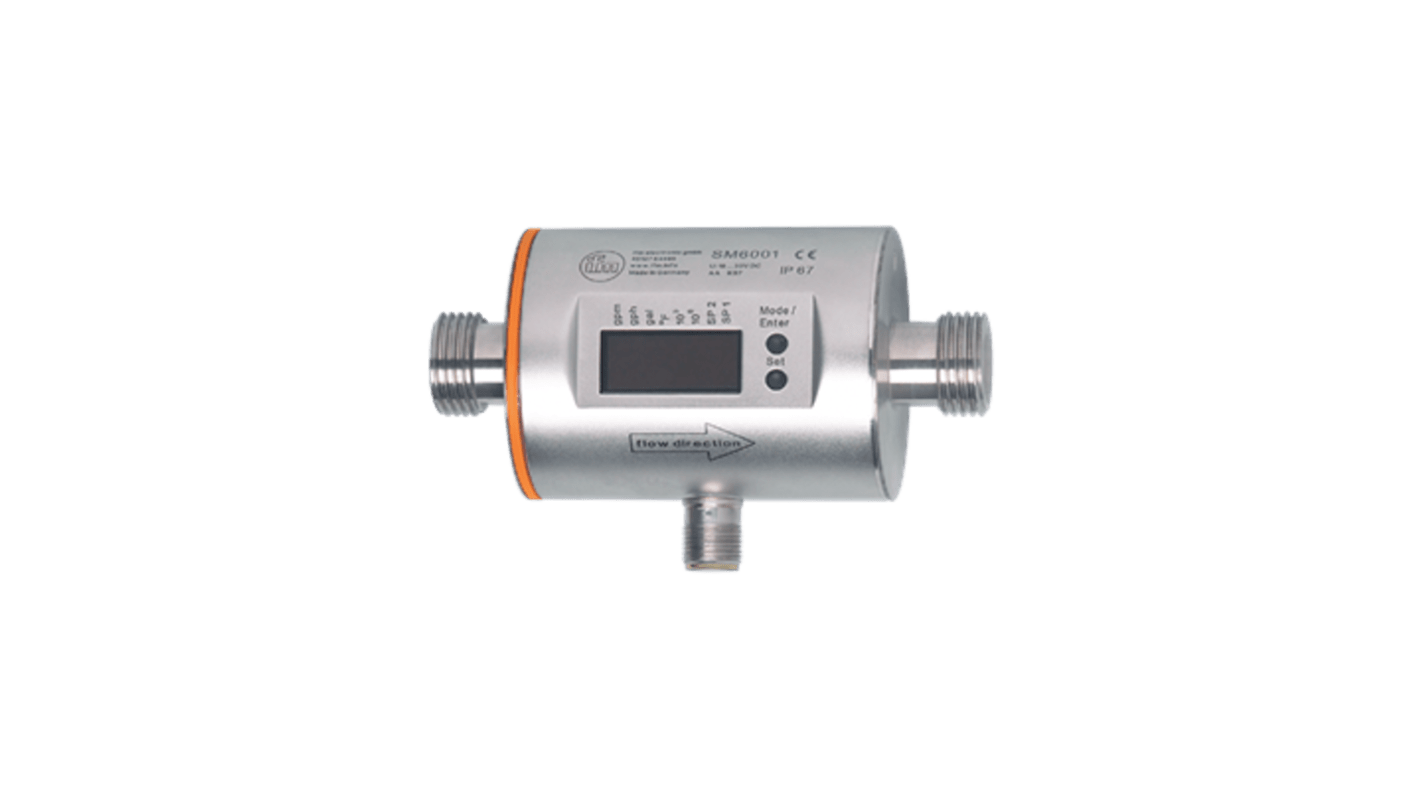

ifm electronic SM6001 Series Magnetic Inductive Flow Meter Flow Meter for Liquid, 1.5g/h Min, 396g/h Max
- RS Stock No.:
- 596-709
- Mfr. Part No.:
- SM6001
- Brand:
- ifm electronic
Subtotal (1 unit)*
£628.58
(exc. VAT)
£754.30
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £628.58 |
*price indicative
- RS Stock No.:
- 596-709
- Mfr. Part No.:
- SM6001
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Meter | |
| Media Monitored | Liquid | |
| Device Type | Magnetic Inductive Flow Meter | |
| Minimum Flow Rate | 1.5g/h | |
| Maximum Flow Rate | 396g/h | |
| Housing Material | 316L Stainless Steel, Fluorelastomer, Fibreglass Reinforced PBT GF20, Polycarbonate, Thermoplastic Elastomer | |
| Connection Type | G 1/2 External Thread | |
| Maximum Pressure | 1.6MPa | |
| Maximum Supply Voltage | 30V dc | |
| IP Rating | IP67 | |
| Minimum Media Temperature | 40°C | |
| Minimum Operating Temperature | 14°F | |
| Maximum Media Temperature | 40°C | |
| Maximum Operating Temperature | 140°F | |
| Standards/Approvals | DIN EN 60068-2-6, DIN EN 60947-5-9, DIN EN 60068-2-27 | |
| Series | SM6001 | |
| Current Rating | 200mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Meter | ||
Media Monitored Liquid | ||
Device Type Magnetic Inductive Flow Meter | ||
Minimum Flow Rate 1.5g/h | ||
Maximum Flow Rate 396g/h | ||
Housing Material 316L Stainless Steel, Fluorelastomer, Fibreglass Reinforced PBT GF20, Polycarbonate, Thermoplastic Elastomer | ||
Connection Type G 1/2 External Thread | ||
Maximum Pressure 1.6MPa | ||
Maximum Supply Voltage 30V dc | ||
IP Rating IP67 | ||
Minimum Media Temperature 40°C | ||
Minimum Operating Temperature 14°F | ||
Maximum Media Temperature 40°C | ||
Maximum Operating Temperature 140°F | ||
Standards/Approvals DIN EN 60068-2-6, DIN EN 60947-5-9, DIN EN 60068-2-27 | ||
Series SM6001 | ||
Current Rating 200mA | ||
The ifm electronic magnetic-inductive flow meter offers precise measurement and monitoring of conductive liquids in various industrial applications. Designed for reliability, it features a robust construction that ensures accurate readings across a substantial range of flow rates. With capabilities for totalizer functions and a versatile setup interface, this flow meter is adaptable for diverse processing environments. Its IP67 protection rating ensures durability against environmental factors. The integrated IO-Link communication interface enhances connectivity and facilitates efficient data transmission, making it an ideal choice for modern automation systems.
Two digital outputs offer flexible signaling options for different applications
One analogue output allows for scalable current or voltage readings
Supports a wide measuring range from 1.5 to 396 gph for versatile flow monitoring
Built-in short-circuit and overload protection enhances reliability and longevity
