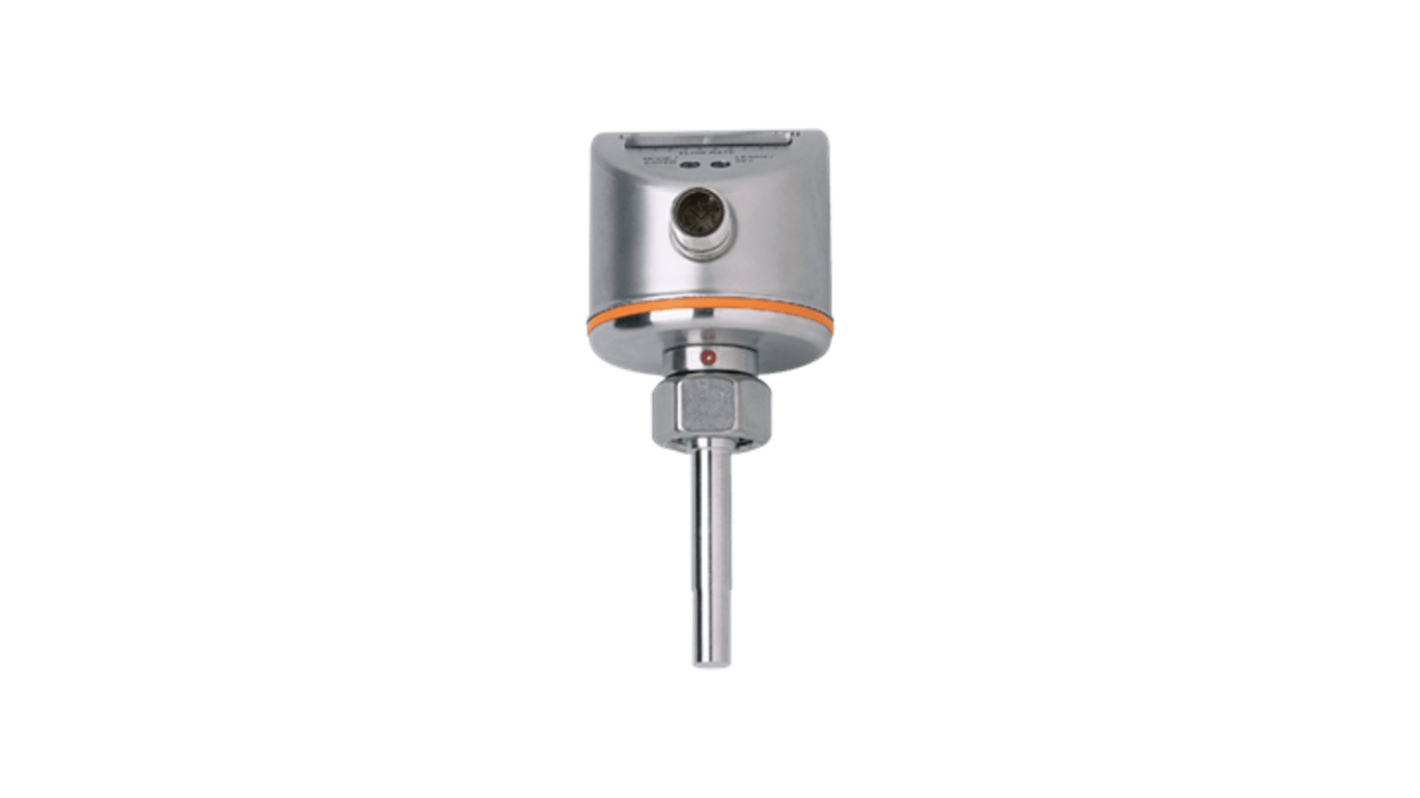

ifm electronic SI5001 Series Flow Monitor Flow Sensor for Liquid, 200cm/s Min, 3000cm/s Max
- RS Stock No.:
- 596-491
- Mfr. Part No.:
- SI5001
- Brand:
- ifm electronic
Subtotal (1 unit)*
£343.97
(exc. VAT)
£412.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £343.97 |
*price indicative
- RS Stock No.:
- 596-491
- Mfr. Part No.:
- SI5001
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Media Monitored | Liquid | |
| Product Type | Flow Sensor | |
| Device Type | Flow Monitor | |
| Minimum Flow Rate | 200cm/s | |
| Housing Material | Polycarbonate, 316L Stainless Steel, Ethylene Propylene Diene Monomer, Fibreglass Reinforced PBT GF20, 301 Stainless Steel | |
| Maximum Flow Rate | 3000cm/s | |
| Connection Type | M18 x 1.5 Internal Thread | |
| Maximum Pressure | 3MPa | |
| Minimum Media Temperature | -20°C | |
| Maximum Supply Voltage | 36V | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Media Temperature | 100°C | |
| Maximum Operating Temperature | 80°C | |
| Series | SI5001 | |
| Standards/Approvals | DIN EN 60068-2-6, EN 61000-4-4 Burst, EN 61000-4-6 HF conducted, EN 61000-4-2 ESD, EN 61000-4-3 HF radiated, DIN IEC 68-2-27 | |
| Current Rating | 250mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Media Monitored Liquid | ||
Product Type Flow Sensor | ||
Device Type Flow Monitor | ||
Minimum Flow Rate 200cm/s | ||
Housing Material Polycarbonate, 316L Stainless Steel, Ethylene Propylene Diene Monomer, Fibreglass Reinforced PBT GF20, 301 Stainless Steel | ||
Maximum Flow Rate 3000cm/s | ||
Connection Type M18 x 1.5 Internal Thread | ||
Maximum Pressure 3MPa | ||
Minimum Media Temperature -20°C | ||
Maximum Supply Voltage 36V | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Media Temperature 100°C | ||
Maximum Operating Temperature 80°C | ||
Series SI5001 | ||
Standards/Approvals DIN EN 60068-2-6, EN 61000-4-4 Burst, EN 61000-4-6 HF conducted, EN 61000-4-2 ESD, EN 61000-4-3 HF radiated, DIN IEC 68-2-27 | ||
Current Rating 250mA | ||
- COO (Country of Origin):
- RO
The ifm electronic flow monitor is an advanced device designed for precise measurement of both liquid and gas flow. With a multi-functional LED bar display and robust pushbutton settings, this innovative product ensures effortless operation and monitoring. Its threaded connection (M18 x 1.5 internal thread) allows for easy installation, while the IP 67 protection class guarantees reliable performance in challenging environments. Supporting a wide medium temperature range of -25 to 80°C, this flow monitor can withstand various conditions and maintain accuracy across diverse applications. Its compact cylindrical housing, crafted from high-quality stainless steel, enhances durability and ensures longevity.
Supports both liquids and gases, making it versatile for various applications
Features a user-friendly LED display for instant visual feedback on flow conditions
Boasts a compact design with a cylindrical housing for ease of installation and integration
Offers a broad medium temperature range, ensuring functionality in extreme conditions
