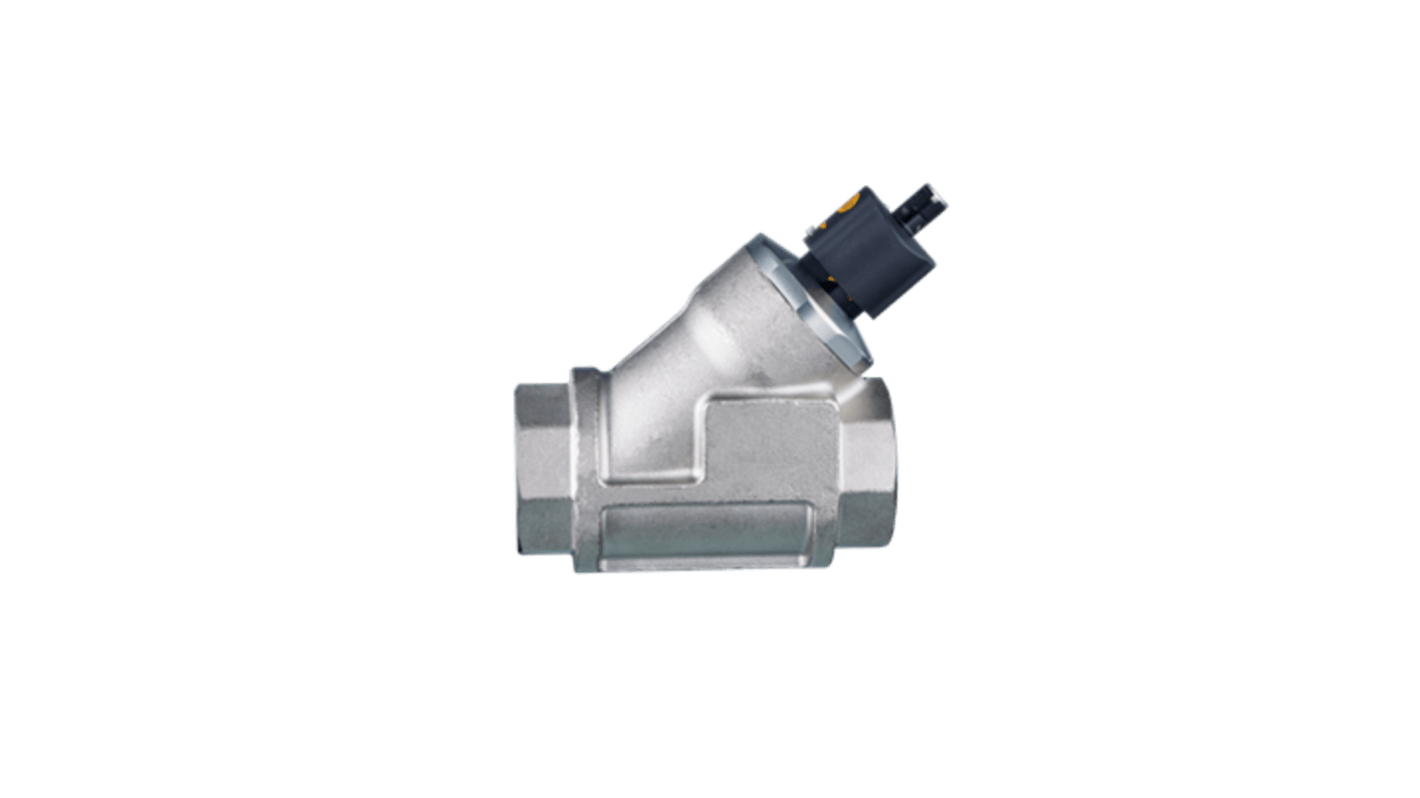

ifm electronic SBY357 Series Flow Sensor Flow Sensor, 20L/min Min, 200L/min Max
- RS Stock No.:
- 596-101
- Mfr. Part No.:
- SBY357
- Brand:
- ifm electronic
Subtotal (1 unit)*
£405.34
(exc. VAT)
£486.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £405.34 |
*price indicative
- RS Stock No.:
- 596-101
- Mfr. Part No.:
- SBY357
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Sensor | |
| Device Type | Flow Sensor | |
| Minimum Flow Rate | 20L/min | |
| Housing Material | Polyamide, Polypropylene, Brass Chemically Nickel Plated, Anodised Aluminium | |
| Maximum Flow Rate | 200L/min | |
| Connection Type | Rp 1 1/2 Internal Thread | |
| Maximum Pressure | 2.5MPa | |
| Maximum Supply Voltage | 30V dc | |
| IP Rating | IP67, IP65 | |
| Minimum Media Temperature | -20°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Media Temperature | 100°C | |
| Maximum Operating Temperature | 60°C | |
| Series | SBY357 | |
| Standards/Approvals | DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 60068-2-6 | |
| Current Rating | 100mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Sensor | ||
Device Type Flow Sensor | ||
Minimum Flow Rate 20L/min | ||
Housing Material Polyamide, Polypropylene, Brass Chemically Nickel Plated, Anodised Aluminium | ||
Maximum Flow Rate 200L/min | ||
Connection Type Rp 1 1/2 Internal Thread | ||
Maximum Pressure 2.5MPa | ||
Maximum Supply Voltage 30V dc | ||
IP Rating IP67, IP65 | ||
Minimum Media Temperature -20°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Media Temperature 100°C | ||
Maximum Operating Temperature 60°C | ||
Series SBY357 | ||
Standards/Approvals DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 60068-2-6 | ||
Current Rating 100mA | ||
The ifm electronic flow sensor with integrated backflow prevention is designed to optimize fluid control in industrial applications. Engineered for reliability, this innovative sensor caters to various media including liquids, water, and glycol solutions. With a robust pressure rating of 25 bar and medium temperature tolerance ranging from 0 to 85 °C, it ensures effective management under diverse conditions. The device features a PNP electrical design with a total of one digital output, facilitating straightforward integration into existing systems. Additionally, its compact size and durable materials make it ideal for both ambient and process environments, highlighting its versatility and robustness.
Integrated backflow prevention enhances operational safety
Robust construction with brass and stainless steel materials for durability
Protective features such as short-circuit and overload protection ensure reliability
Fast response time of less than 0.01 seconds enables efficient monitoring
