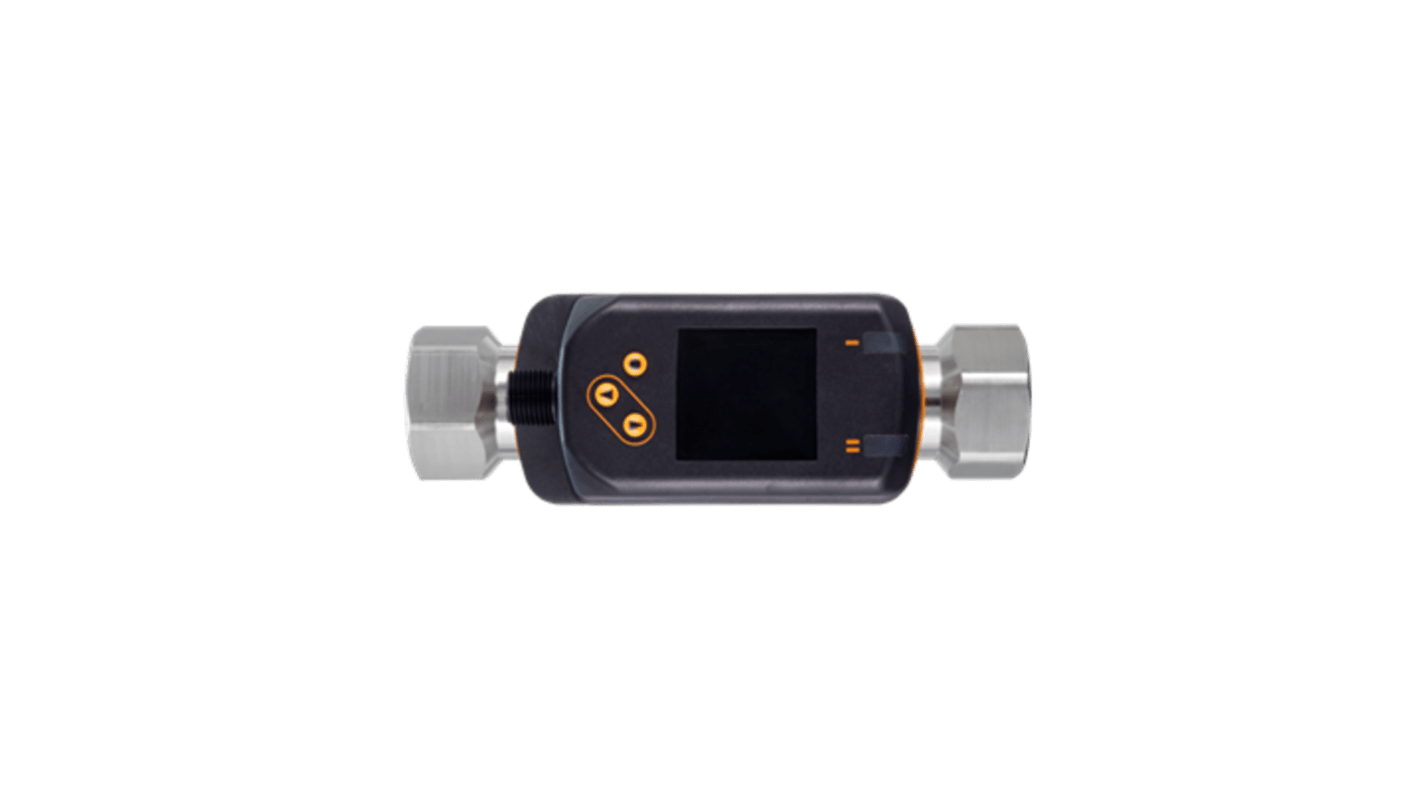

ifm electronic SV7204 Series Vortex Flow Meter Flow Meter for Coolants, 5L/min Min, 100L/min Max
- RS Stock No.:
- 596-324
- Mfr. Part No.:
- SV7204
- Brand:
- ifm electronic
Subtotal (1 unit)*
£410.33
(exc. VAT)
£492.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £410.33 |
*price indicative
- RS Stock No.:
- 596-324
- Mfr. Part No.:
- SV7204
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Meter | |
| Media Monitored | Coolants | |
| Device Type | Vortex Flow Meter | |
| Minimum Flow Rate | 5L/min | |
| Housing Material | Electronics: Polycarbonate 10% Fibreglass, Polyphenylenesulfide 40% Fibreglass | |
| Maximum Flow Rate | 100L/min | |
| Connection Type | G 3/4 Internal Thread | |
| Maximum Pressure | 1.2MPa | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 30V | |
| Minimum Media Temperature | -10°C | |
| Maximum Media Temperature | 90°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 60068-2-27 | |
| Series | SV7204 | |
| Current Rating | 20mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Meter | ||
Media Monitored Coolants | ||
Device Type Vortex Flow Meter | ||
Minimum Flow Rate 5L/min | ||
Housing Material Electronics: Polycarbonate 10% Fibreglass, Polyphenylenesulfide 40% Fibreglass | ||
Maximum Flow Rate 100L/min | ||
Connection Type G 3/4 Internal Thread | ||
Maximum Pressure 1.2MPa | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 30V | ||
Minimum Media Temperature -10°C | ||
Maximum Media Temperature 90°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 60068-2-27 | ||
Series SV7204 | ||
Current Rating 20mA | ||
- COO (Country of Origin):
- US
The ifm electronic vortex flow meter is a precision instrument designed for monitoring volumetric flow and temperature across a range of industrial applications. With a robust measuring range of 5 to 100 l/min and a versatile output configuration, it ensures reliable performance while handling media such as water, glycol solutions, and coolants. This flow meter offers an intuitive display, showcasing vital parameters clearly, making it an ideal solution for engineers needing accurate flow measurements in demanding environments.
Gold-plated contacts ensure high reliability and reduce signal degradation
IP 65 and IP 67 protection ratings provide resilience against dust and water ingress
Accurate flow monitoring with ± 2% measurement accuracy ensures precision in application
Compact rectangular housing design with dimensions 135 x 45 x 72 mm facilitates easy installation
