ifm electronic SV0527 Series Vortex Flow Meter Flow Meter for Water, 1L/min Min, 20L/min Max
- RS Stock No.:
- 596-293
- Mfr. Part No.:
- SV0527
- Brand:
- ifm electronic
Subtotal (1 unit)*
£369.52
(exc. VAT)
£443.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £369.52 |
*price indicative
- RS Stock No.:
- 596-293
- Mfr. Part No.:
- SV0527
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Meter | |
| Media Monitored | Water | |
| Device Type | Vortex Flow Meter | |
| Minimum Flow Rate | 1L/min | |
| Housing Material | 316Ti Stainless Steel, Fluorelastomer, 316L Stainless Steel, Thermoplastic Elastomer, Fibreglass Reinforced PBT GF20, Polyetherimide | |
| Maximum Flow Rate | 20L/min | |
| Connection Type | 1/2 in NPT Internal Thread | |
| Maximum Pressure | 1.2MPa | |
| IP Rating | IP67, IP65 | |
| Maximum Supply Voltage | 30V | |
| Minimum Media Temperature | 40°C | |
| Maximum Media Temperature | 40°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Series | SV0527 | |
| Standards/Approvals | DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 60068-2-6, DIN EN 61000-6-3 | |
| Current Rating | 100mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Meter | ||
Media Monitored Water | ||
Device Type Vortex Flow Meter | ||
Minimum Flow Rate 1L/min | ||
Housing Material 316Ti Stainless Steel, Fluorelastomer, 316L Stainless Steel, Thermoplastic Elastomer, Fibreglass Reinforced PBT GF20, Polyetherimide | ||
Maximum Flow Rate 20L/min | ||
Connection Type 1/2 in NPT Internal Thread | ||
Maximum Pressure 1.2MPa | ||
IP Rating IP67, IP65 | ||
Maximum Supply Voltage 30V | ||
Minimum Media Temperature 40°C | ||
Maximum Media Temperature 40°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Series SV0527 | ||
Standards/Approvals DIN EN 60068-2-27, DIN EN 61000-6-2, DIN EN 60068-2-6, DIN EN 61000-6-3 | ||
Current Rating 100mA | ||
- COO (Country of Origin):
- US

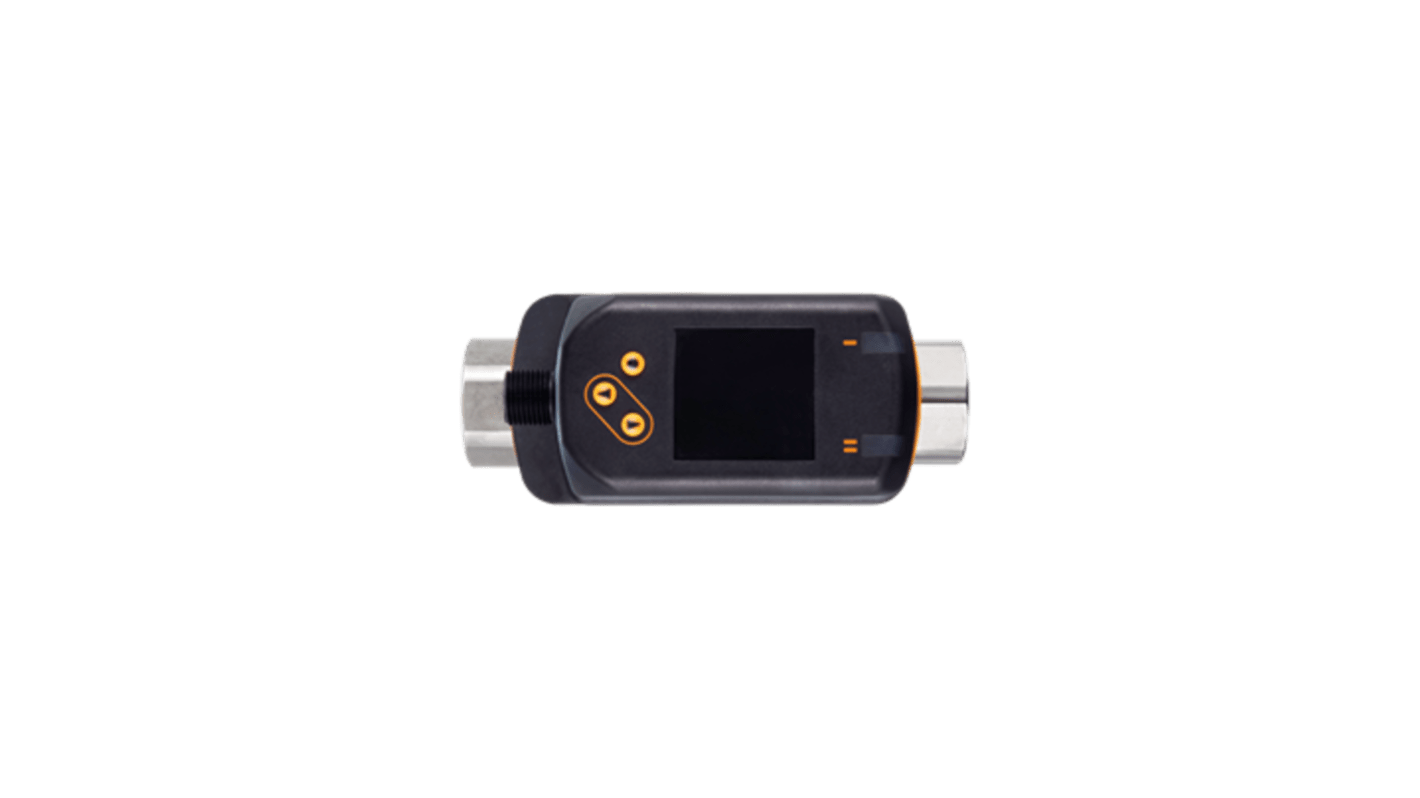

The ifm electronic vortex flow meter with display is a robust and efficient solution designed for precise flow measurement in industrial applications. Featuring a measurement range from 1 to 20 l/min, it enables reliable monitoring of water flow across various conditions, with impressive accuracy of ± 2% of the measured value. This device is equipped with a clear 1.44-inch color display, ensuring easy readability and user-friendly operation. Additionally, its protection class rating of IP 65/IP 67 ensures durability and reliability in demanding environments, making it an essential instrument for professionals seeking efficiency and effectiveness in fluid measurement.
Measuring range of 1 to 20 l/min for optimal flow precision
Integrated color display for straightforward visual monitoring
Configured with two digital outputs for versatile data communication
Robust protection class of IP 65/IP 67 for excellent ingress protection
