ifm electronic SB7257 Series Flow Meter Flow Sensor for Liquid, 8L/min Min, 200L/min Max
- RS Stock No.:
- 596-092
- Mfr. Part No.:
- SB7257
- Brand:
- ifm electronic
Subtotal (1 unit)*
£549.50
(exc. VAT)
£659.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £549.50 |
*price indicative
- RS Stock No.:
- 596-092
- Mfr. Part No.:
- SB7257
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Flow Meter | |
| Minimum Flow Rate | 8L/min | |
| Maximum Flow Rate | 200L/min | |
| Housing Material | Brass Chemically Nickel Plated, Fibreglass Reinforced PBT GF20, 316L Stainless Steel, Polycarbonate, Glass Filled Polybutylene Terephthalate | |
| Connection Type | G 1 1/2 Internal Thread | |
| Maximum Pressure | 10MPa | |
| Minimum Media Temperature | 40°C | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 30V dc | |
| Maximum Media Temperature | 40°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Series | SB7257 | |
| Standards/Approvals | UL, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 60068-2-27, DIN EN 61000-6-3 | |
| Current Rating | 150mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Flow Meter | ||
Minimum Flow Rate 8L/min | ||
Maximum Flow Rate 200L/min | ||
Housing Material Brass Chemically Nickel Plated, Fibreglass Reinforced PBT GF20, 316L Stainless Steel, Polycarbonate, Glass Filled Polybutylene Terephthalate | ||
Connection Type G 1 1/2 Internal Thread | ||
Maximum Pressure 10MPa | ||
Minimum Media Temperature 40°C | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 30V dc | ||
Maximum Media Temperature 40°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Series SB7257 | ||
Standards/Approvals UL, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 60068-2-27, DIN EN 61000-6-3 | ||
Current Rating 150mA | ||
- COO (Country of Origin):
- DE

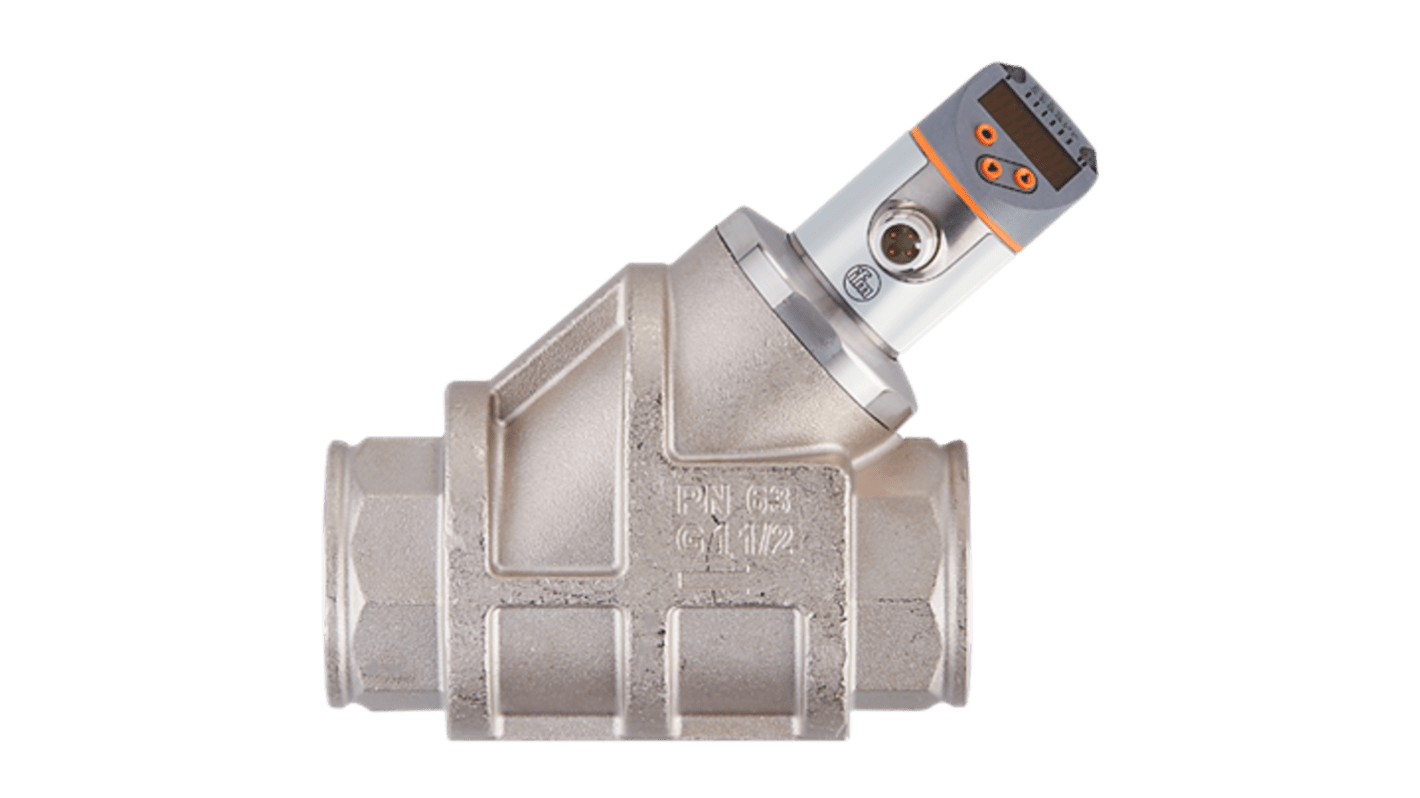

The ifm electronic flow meter is designed for precise measurement and monitoring of liquid flow rates with integrated backflow prevention and a clear display. This versatile instrument features a broad measuring range from 8 to 200 l/min, making it ideal for applications in various industries. Engineered with robust materials like stainless steel and equipped with gold-plated contacts, the device ensures reliability and durability even under demanding conditions. Its user-friendly interface includes an alphanumeric display that alternates between red and green, ensuring easy readability. The product is suitable for a temperature range of -10 to 100 °C and incorporates cutting-edge technology for monitoring both flow and temperature metrics to optimize system performance effectively.
Integrated backflow prevention for enhanced operational safety
Multiple output options including switching, analogue, and frequency signals
Configurable output functions for tailored applications
Short-circuit and overload protection for added reliability
