Schneider Electric Spacial SM Steel, Single Door Floor Standing Enclosure, 1800 x 1000 x 400mm, IP55

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): ES
Product Details

Schneider Electric Spacial SM Monobloc Enclosures:

These Spacial Metal floor-standing enclosures and boxes offer both single door and double door enclosures with a range of sizes and easy to use accessories helping you find the most suitable fit and solution for your needs. These compact metal enclosures are made up of a compact body, welded rear panel and front part forming a rigid frame with its corners welded.

Features and Benefits

• Four deep supports, 2 at the top and 2 at the bottom, for adjusting the equipment fixing bracket with a pitch of 25 mm
• Sheet steel door, painted with epoxy-polyester resin in textured RAL7035 grey
• Reinforcement frame made up of two perforated uprights with a pitch of 25mm and two-door rails (height-adjustable), which can be used for fixing cables
• Standard locking system with handle and 5mm double bar insert
• Supplied with galvanized mounting plate and 4 support brackets
• Cable gland plate in 2 parts - IP55 according to IEC 60529 and IK10 according to IEC62262
• Certifications: BV, DNV, UL, and cUL

Applications and Uses

• Indoor industrial environment in mechanical plants to protect electric and electronic components against dust, splashing with oil and impacts.
• Demanding industrial environments for food and beverage, pharmaceutical, petrochemical, and infrastructure industries for helping with hygiene and resistance to corrosion

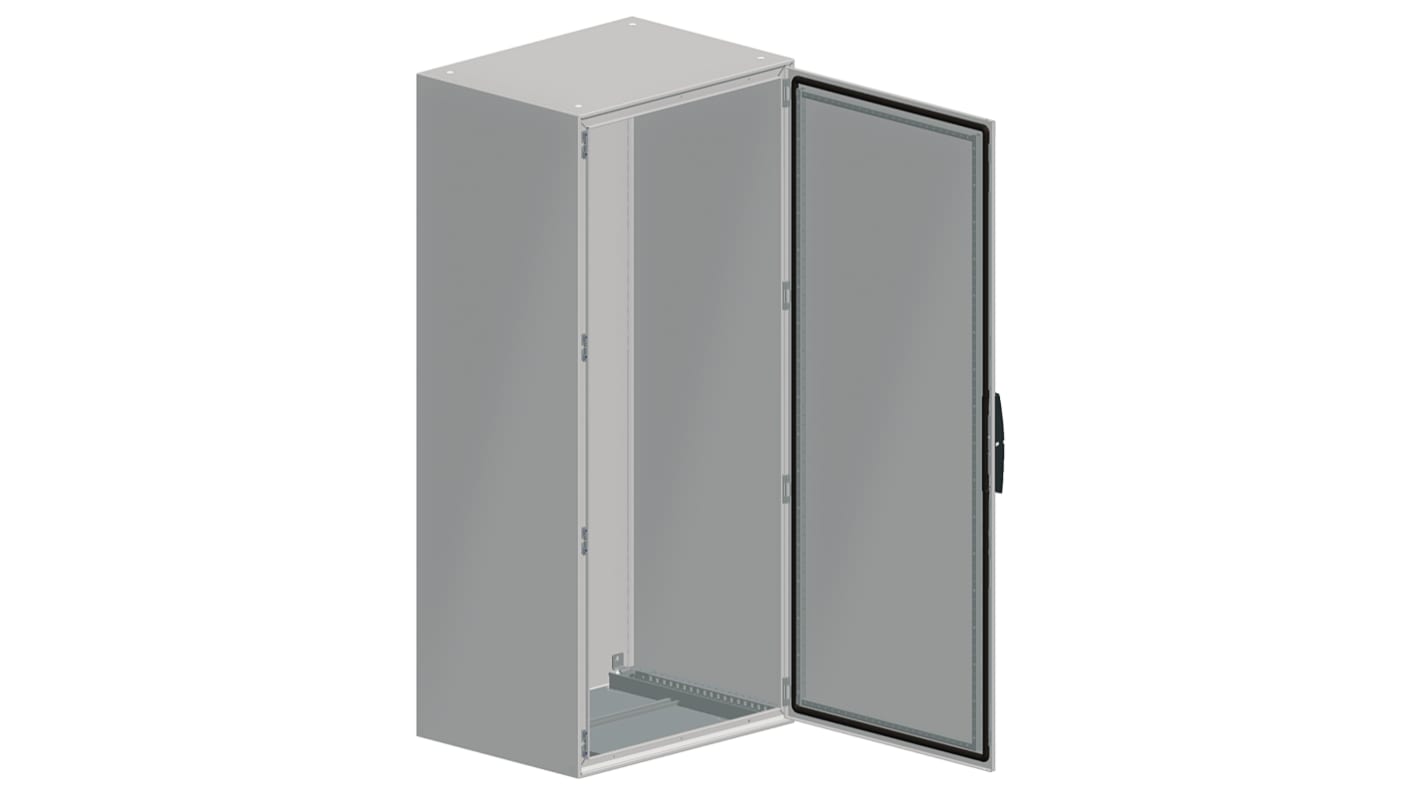

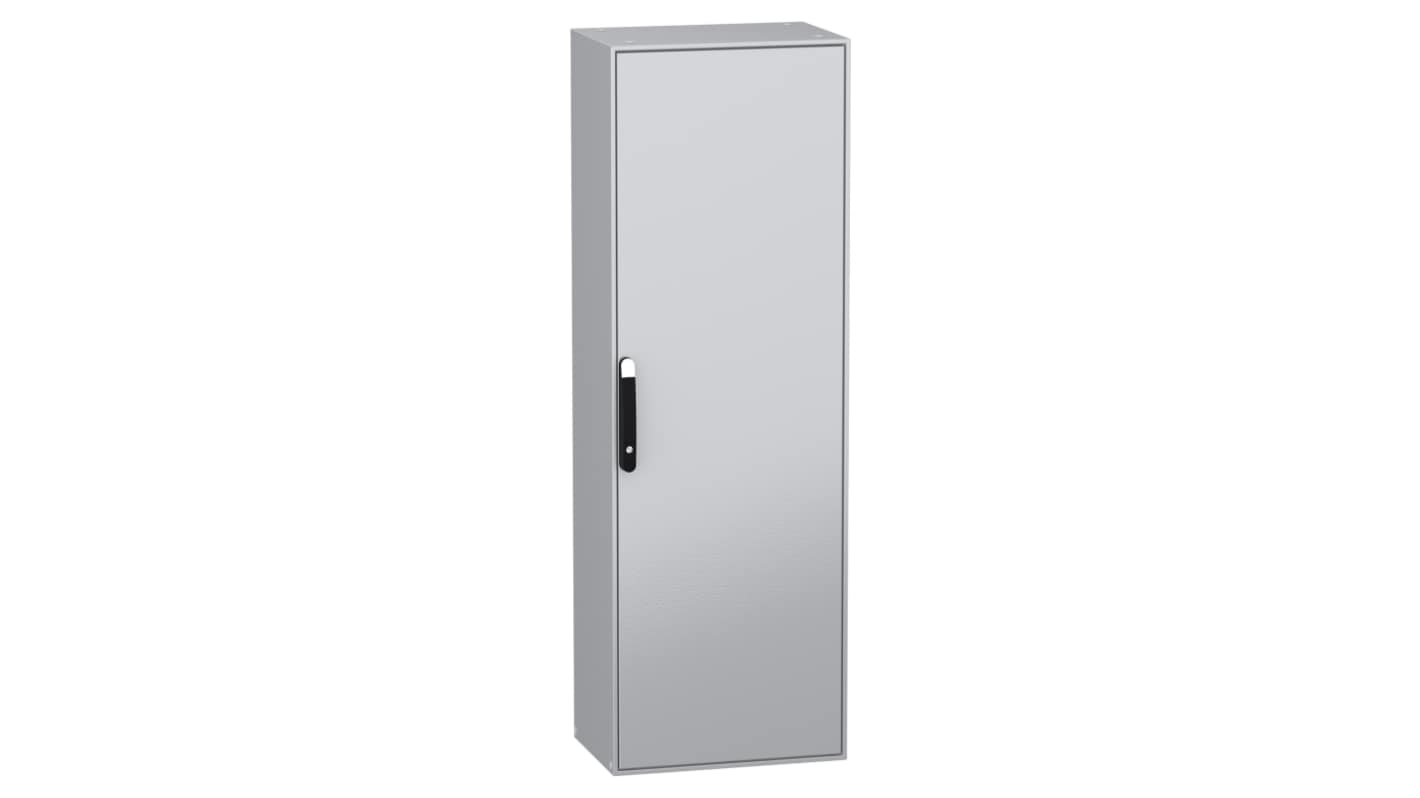

Single Door Steel Floor-Standing Enclosure

• Multi-purpose floor-standing enclosure
• Dimensions: height 1800 mm, width 1000 mm, depth 400 mm
• Locking system with handle for door
• 4 x mounting plate bracket
• 1 x door
• Reversible 120 º door opening
• 1 x cable entry
• 1 x mounting plate
• IP55

Specifications
Attribute Value
Number of Doors 1
IP Rating IP55
Series Spacial SM
Door Type Opaque
Construction Type Welded
Body Material Steel
Colour Grey
External Dimensions 1800 x 1000 x 400mm
External Depth 400mm
External Height 1800 mm
External Width 1000 mm
10 In stock - FREE next working day delivery available
Price Each
£ 614.00
(exc. VAT)
£ 736.80
(inc. VAT)
Units
Per unit
1 +
£614.00
