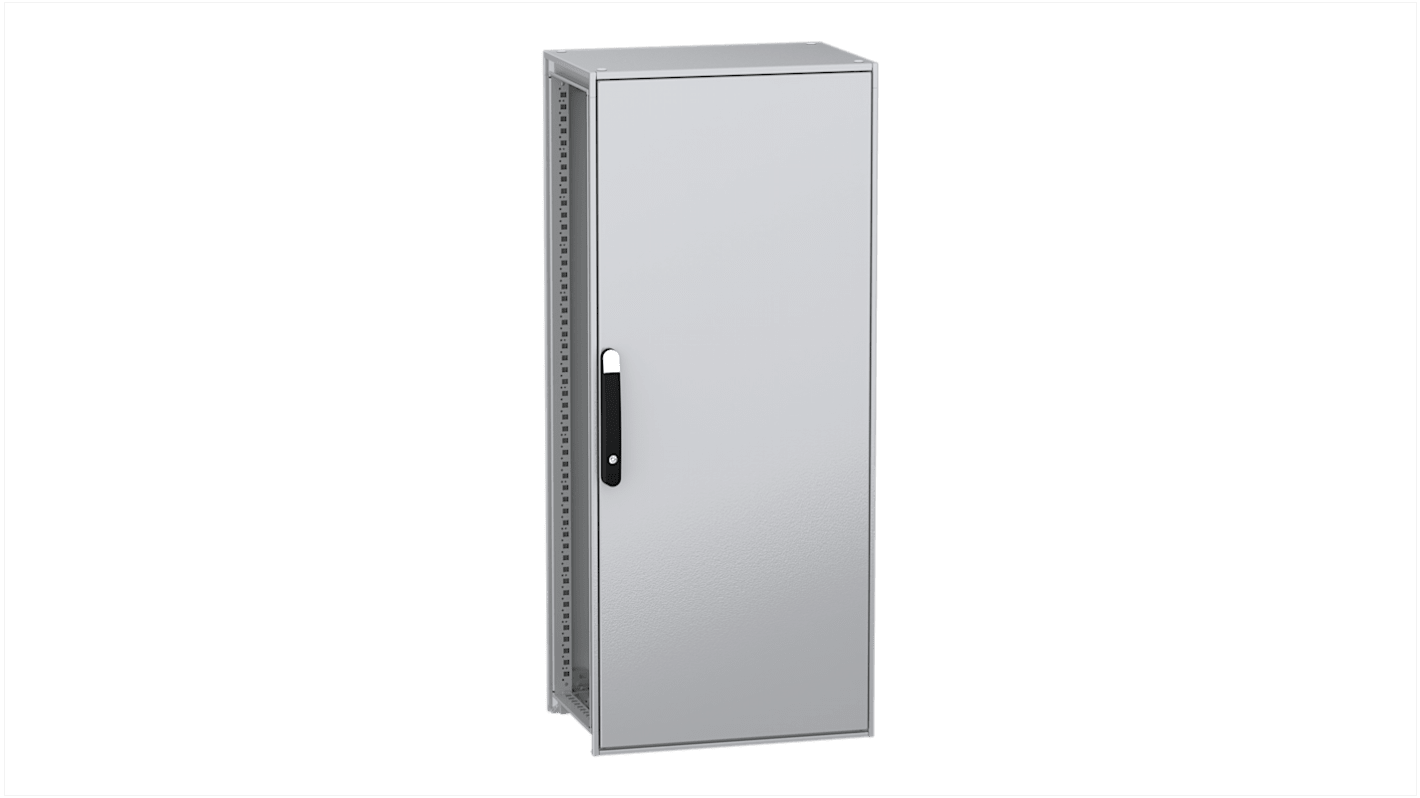

Schneider Electric PanelSeT SFN Series Galvanised Steel 1-Door Floor Standing Enclosure, Plain Door, IP55 400 mm, 600 mm
- RS Stock No.:
- 285-5486
- Mfr. Part No.:
- NSYSFN14640
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£667.66
(exc. VAT)
£801.19
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £667.66 |
*price indicative
- RS Stock No.:
- 285-5486
- Mfr. Part No.:
- NSYSFN14640
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Doors | 1 | |
| Product Type | Floor Standing Enclosure | |
| IP Rating | IP55 | |
| Series | PanelSeT SFN | |
| Door Type | Plain | |
| Body Material | Galvanised Steel | |
| Colour | Grey, Black | |
| External Width | 600mm | |
| External Depth | 400mm | |
| External Height | 1400mm | |
| NEMA Rating | NEMA 3R/12 | |
| Mounting plate | No | |
| Colour RAL | RAL 7035, RAL 9005 | |
| Standards/Approvals | cUL, UL, IEC 62208 | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Doors 1 | ||
Product Type Floor Standing Enclosure | ||
IP Rating IP55 | ||
Series PanelSeT SFN | ||
Door Type Plain | ||
Body Material Galvanised Steel | ||
Colour Grey, Black | ||
External Width 600mm | ||
External Depth 400mm | ||
External Height 1400mm | ||
NEMA Rating NEMA 3R/12 | ||
Mounting plate No | ||
Colour RAL RAL 7035, RAL 9005 | ||
Standards/Approvals cUL, UL, IEC 62208 | ||
IK Rating IK10 | ||
RoHS Status: Exempt
The Schneider Electric PanelSeT SFN electrical enclosure is a floor-standing modular solution made from decarbonized steel. With an IP55 degree of protection, it offers a versatile and reliable option for various applications.
Constructed from galvanised steel for durability
Reversible door with a 4-point locking system for security
Comes with 2 sliding rails and 4 mounting plate quick-fixing brackets for easy installation
Environmental-friendly design with Epoxy-polyester powder surface finish
Meets NEMA 3R/12 and IP55 standards for protection against environmental elements
