Sensata Cynergy3 RSF40 Series Horizontal Polypropylene Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 869-7564
- Distrelec Article No.:
- 304-10-172
- Mfr. Part No.:
- RSF44YFP
- Brand:
- Sensata / Cynergy3
Subtotal (1 unit)*
£17.15
(exc. VAT)
£20.58
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 29 left, ready to ship
- Plus 56 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.15 |
*price indicative
- RS Stock No.:
- 869-7564
- Distrelec Article No.:
- 304-10-172
- Mfr. Part No.:
- RSF44YFP
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Device Type | Float | |
| Mounting Type | Horizontal | |
| Switch Output | NO/NC | |
| Body Material | Polypropylene | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 120V | |
| Maximum Current | 600 mA | |
| Gasket Material | Nitrile | |
| Series | RSF40 | |
| Standards Met | NSF Approved, WRAS | |
Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Device Type Float | ||
Mounting Type Horizontal | ||
Switch Output NO/NC | ||
Body Material Polypropylene | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Gasket Material Nitrile | ||
Series RSF40 | ||
Standards Met NSF Approved, WRAS | ||
- COO (Country of Origin):
- CN

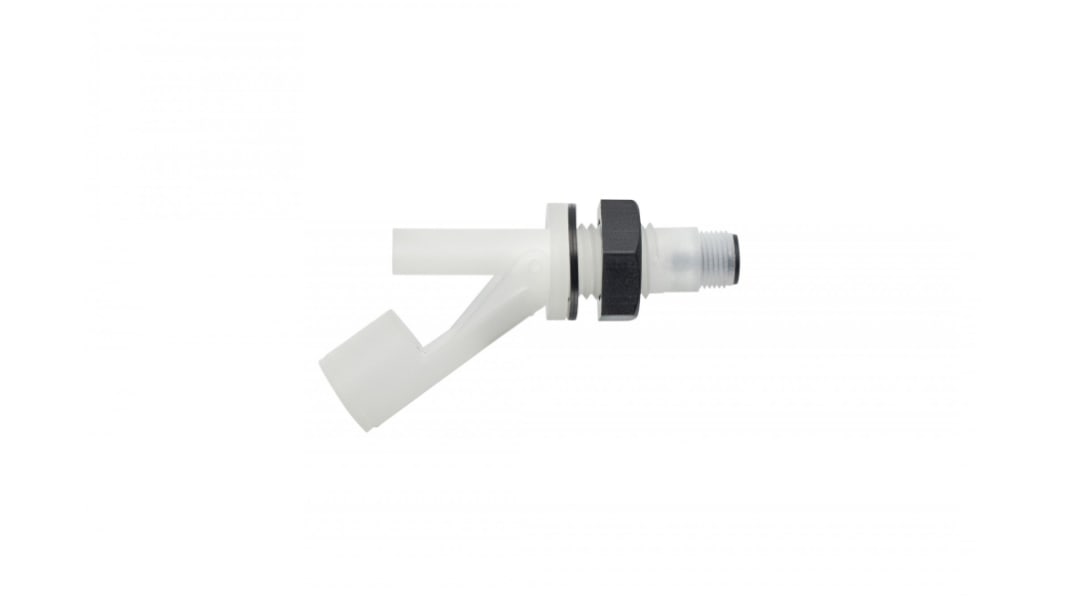

Sensata Cynergy3 Internal Horizontal Float Switch, 120V DC, 240V AC - RSF40 Series - RSF44YFP
This horizontal float switch from Sensata Cynergy3 is a simple yet highly reliable way to monitor liquid levels in a tank. It indicates when liquid has reached a pre-determined level and can be electronically linked to another device such as an alarm or pump for convenient use. The float is simple to install by fitting it to the inside of the tank and securing it in place with a nylon nut. You'll find this float switch used in applications such as commercial washing machines and evaporator units.
Features & Benefits
• Polypropylene body material for high strength and good chemical resistance
• Switch action can be reversed by rotating the float through 180º for versatile use
• Nitrile rubber gasket to prevent leakage
• Wide operating temperature range of -20°C to +100°C for use in harsh environments
• Switch action can be reversed by rotating the float through 180º for versatile use
• Nitrile rubber gasket to prevent leakage
• Wide operating temperature range of -20°C to +100°C for use in harsh environments
How do I know what type of float switch to use with a specific liquid?
You should consider the specific gravity of your liquid when choosing a float switch, as it must be greater than the float's specific gravity in order for the device to function properly.
