Sensata Cynergy3 RSF80 Series Horizontal External Nylon Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

View all Float Switches

Subtotal (1 unit)*

£19.81

(exc. VAT)

£23.77

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 1 left, ready to ship
  • Plus 51 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£19.81

*price indicative

RS Stock No.:
725-9861
Mfr. Part No.:
RSF83H100R
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Device Type

Float

Mounting Type

Horizontal External

Switch Output

NO/NC

Body Material

Nylon

Cable Length

1m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+75°C

Maximum AC Voltage

300V

Maximum DC Voltage

300V

Maximum Current

600 mA

Series

RSF80

Standards Met

WRAS

COO (Country of Origin):
CN

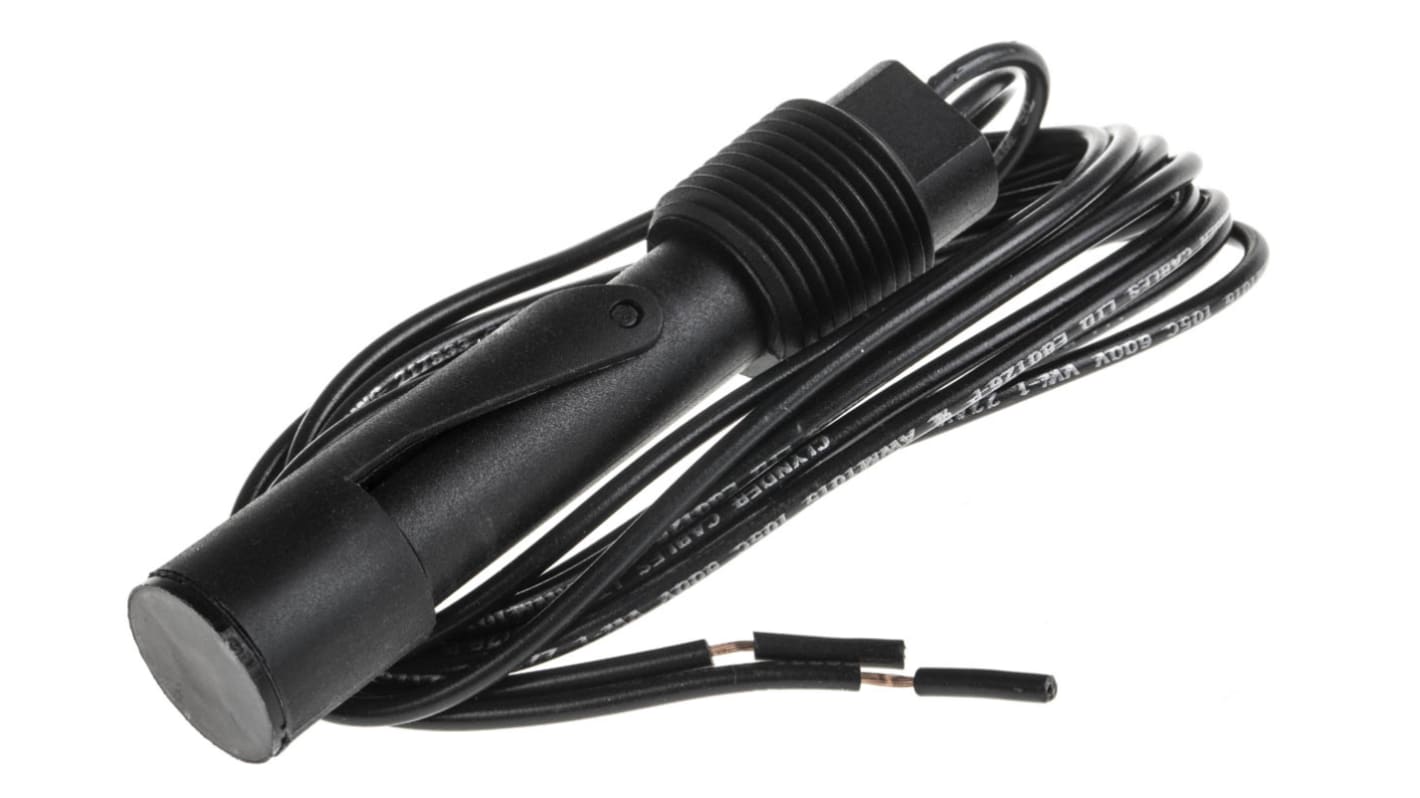

Sensata Cynergy3 Horizontal Float Switch, 600mA, 300V AC/DC - RSF80 Series - RSF83H100R


This horizontal float switch from Sensata Cynergy3 monitors high and low liquid levels in a tank. It's designed for mounting on the outside of the tank, making it a good choice for situations where it's difficult to access the inside of the tank. It's made from a robust nylon material that's compatible with oils, diesel and other harsh liquids for use in demanding applications. You'll often find a float switch like this one used in vending machines and commercial washing machines.

Features & Benefits


• Ample cable length of 1m for a flexible electrical connection
• Wide operating temperature range of -20°C to +75°C for use in demanding applications
• PVC cable sheath to protect wiring from moisture and dust
• Switch action can be reversed by rotating it through 180° for versatility

What are the most important factors to consider when choosing a float switch?


The most important factors to consider when choosing a float switch are the type and flow rate of the fluid you're monitoring, as well as the electrical switching load.
