Sensata Cynergy3 SSF67 Series Vertical Stainless Steel Float Switch, Float, Direct Load, 250V ac Max, 120V dc Max
- RS Stock No.:
- 492-8930
- Mfr. Part No.:
- SSF67A25B150
- Brand:
- Sensata / Cynergy3
Subtotal (1 unit)*
£223.73
(exc. VAT)
£268.48
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £223.73 |
*price indicative
- RS Stock No.:
- 492-8930
- Mfr. Part No.:
- SSF67A25B150
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Cynergy3 | |
Device Type | Float | |
Mounting Type | Vertical | |
Switch Output | Direct Load | |
Body Material | Stainless Steel | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +135°C | |
Maximum AC Voltage | 250V | |
Maximum DC Voltage | 120V | |
Maximum Current | 600 mA | |
Maximum Pressure | 10bar | |
Gasket Material | Nitrile | |
Series | SSF67 | |
Select all | ||
---|---|---|
Brand Sensata / Cynergy3 | ||
Device Type Float | ||
Mounting Type Vertical | ||
Switch Output Direct Load | ||
Body Material Stainless Steel | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +135°C | ||
Maximum AC Voltage 250V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Maximum Pressure 10bar | ||
Gasket Material Nitrile | ||
Series SSF67 | ||
- COO (Country of Origin):
- CN

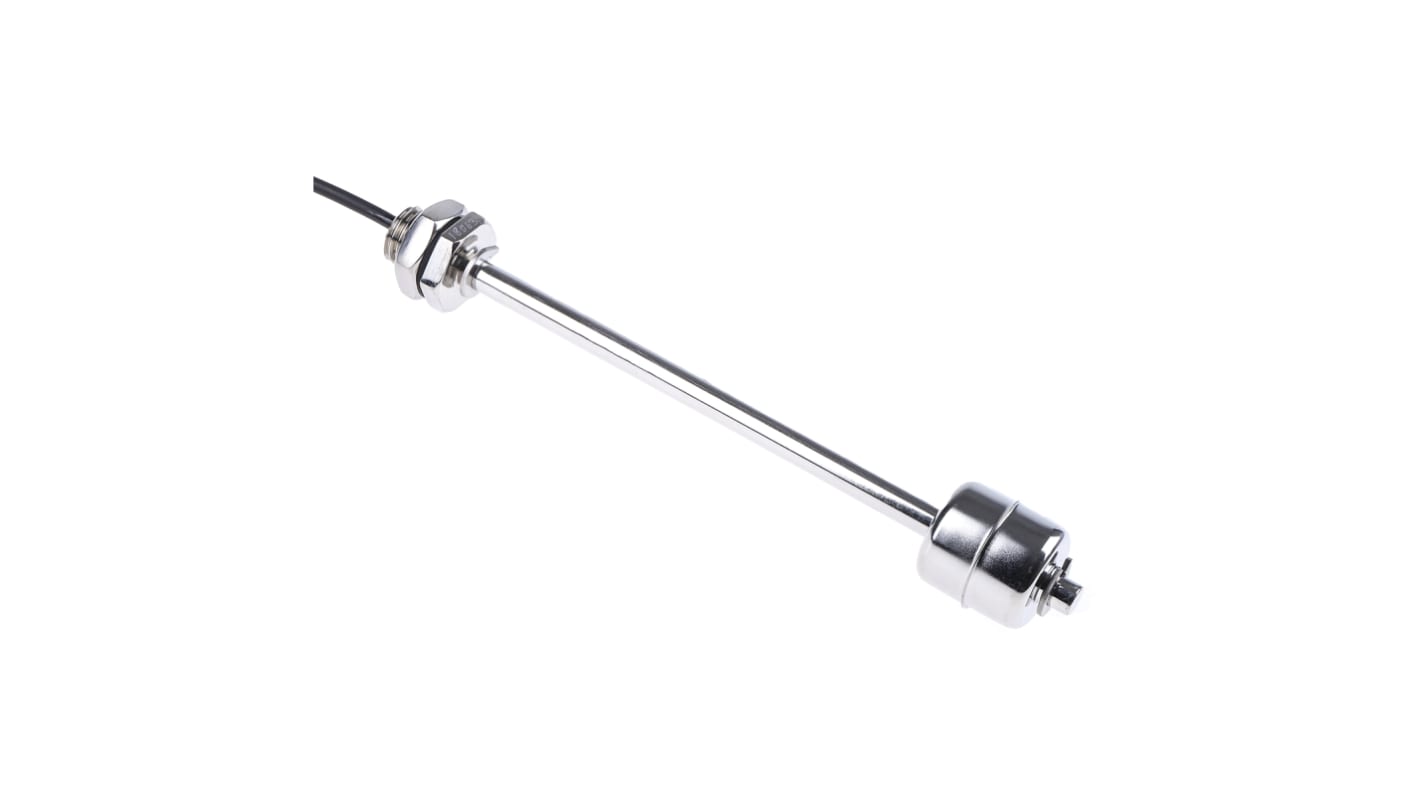

Sensata Cynergy3 Stainless Steel Vertical Float Switch, 600mA, 10 Bar - SSF67 Series - SSF67A25B150
Use this reliable Sensata Cynergy3 float switch to accurately control the level of liquid in a tank. It's made from high-quality stainless steel that's resistant to aggressive substances such as hydraulic fluid and chemicals. The versatile vertical sensor can be internally mounted either at the bottom or top of a tank and has a long reach of 177mm for deep penetration into the tank. It offers a number of switching options to suit various system requirements and can be used in hygienic applications.
Features & Benefits
• Nitrile rubber sealing gasket to prevent leakage and improve reliability
• Long cable length of 1m for flexible installation
• Broad operating temperature range of -20°C to +135°C for use in demanding conditions
• Long cable length of 1m for flexible installation
• Broad operating temperature range of -20°C to +135°C for use in demanding conditions
What kind of cable does this float switch have?
The switch has a conductor cable that's sheathed with high-performance ethylene tetrafluoroethylene (ETFE), also known as Tefzel. This material is highly durable and resistant to corrosion and heat, so it can withstand use in demanding applications. It's also an eco-friendly material as it's 100% recyclable.
