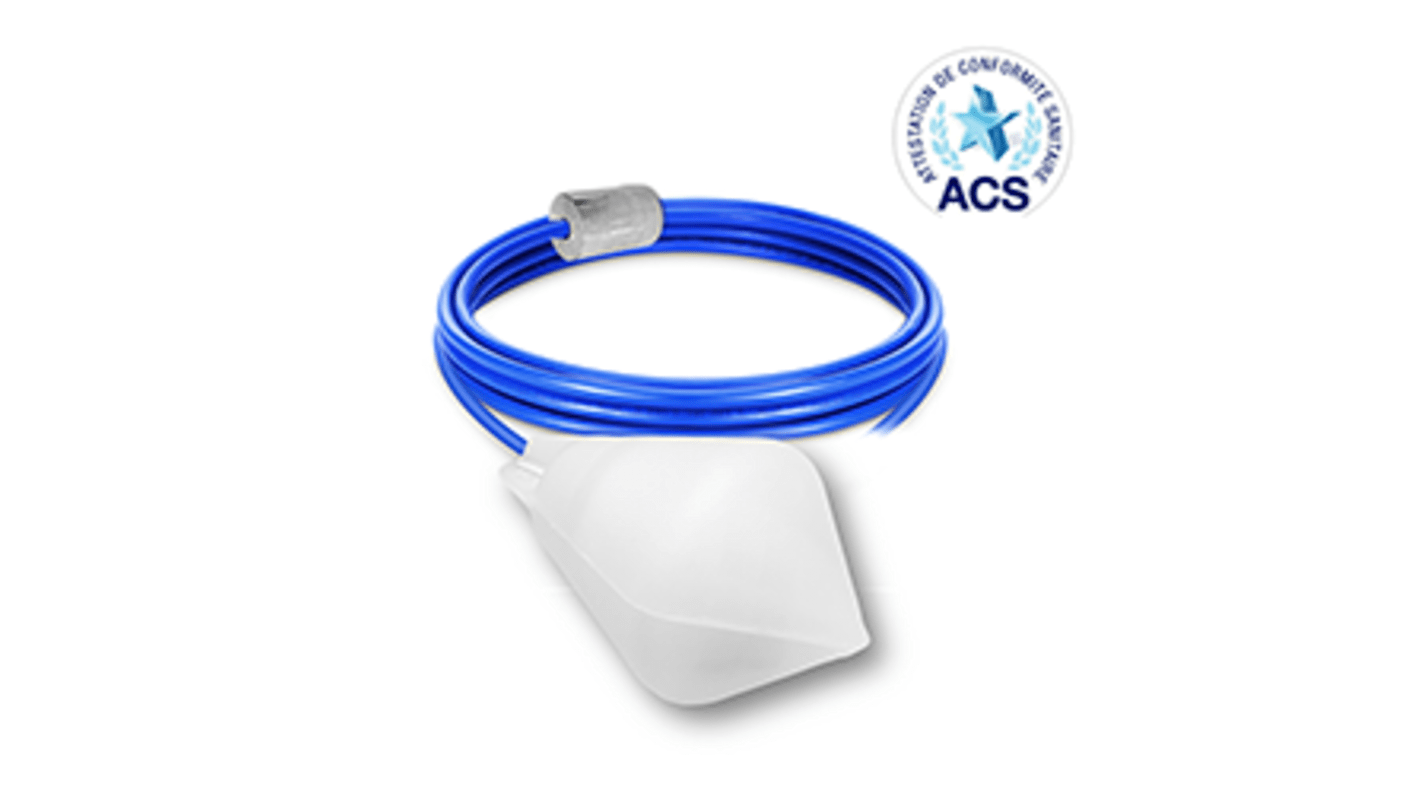

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max
- RS Stock No.:
- 208-5470
- Mfr. Part No.:
- ATS165EPACS10M
- Brand:
- ATMI
Subtotal (1 unit)*
£248.07
(exc. VAT)
£297.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £248.07 |
*price indicative
- RS Stock No.:
- 208-5470
- Mfr. Part No.:
- ATS165EPACS10M
- Brand:
- ATMI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ATMI | |
For Use With | Drinking water | |
Device Type | Float | |
Mounting Type | Cable Mount | |
Switch Output | SPDT | |
Body Material | Copolymer Polypropylene | |
Cable Length | 10m | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Maximum AC Voltage | 250V | |
Maximum DC Voltage | 125V | |
Maximum Pressure | 3.5bar | |
Select all | ||
---|---|---|
Brand ATMI | ||
For Use With Drinking water | ||
Device Type Float | ||
Mounting Type Cable Mount | ||
Switch Output SPDT | ||
Body Material Copolymer Polypropylene | ||
Cable Length 10m | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Maximum AC Voltage 250V | ||
Maximum DC Voltage 125V | ||
Maximum Pressure 3.5bar | ||
- COO (Country of Origin):
- FR
This ACS certified float level switch is constructed with special components for use in drinking water applications.
Thanks to its big switching angle of 165°, the ATS 165 protects the pump's engine and the electrical panels from jerking. This float the ideal solution for level control in tower tanks, for example.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.
This float level switch can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.
Thanks to its big switching angle of 165°, the ATS 165 protects the pump's engine and the electrical panels from jerking. This float the ideal solution for level control in tower tanks, for example.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.
This float level switch can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.
Maximum pressure 3.5 bar
Maximum temperature 85°C
Protection index IP68
Maximum temperature 85°C
Protection index IP68
