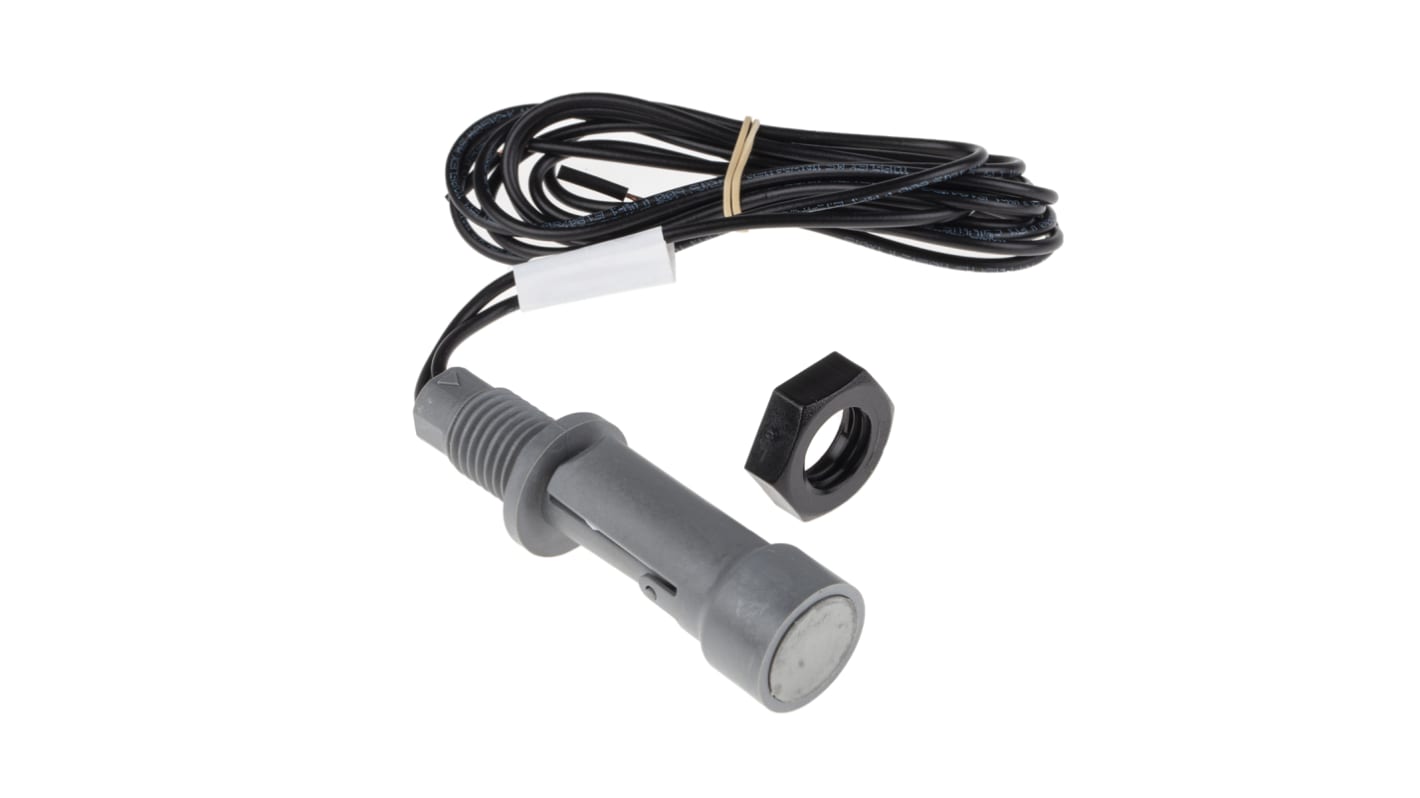

Sensata Cynergy3 LLF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, 1m Cable, SPNO, 300V ac Max, 300V

View all Float Switches
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
174-8361
Mfr. Part No.:
LLF46H100RF
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Mounting Type

Horizontal Internal

Switch Output

SPNO

Body Material

Polyphenylene Sulfide

Cable Length

1m

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+120°C

Maximum AC Voltage

300V

Maximum DC Voltage

300V

Maximum Current

1 A

Gasket Material

Nitrile

Series

LLF40

Standards Met

UL, WRAS

Current Rating

1 A

COO (Country of Origin):
GB

Sensata Cynergy3 Float Switch, Horizontal Internal Mounting Type, 1A Maximum Switching Current - LLF40 Series - LLF46H100RF


Prevent overfilling or underfilling in your tank using this horizontal internal float switch from Sensata Cynergy3. It triggers a warning when fluid levels fall below or rise above a preset range, ensuring an adequate supply in your containers. The switch's body is made from PPS for resistance to chemicals and corrosion, so you can use it in demanding applications. Thanks to a low switching current of 1A, this unit is an energy-efficient choice. As it has a maximum switching voltage of 300V AC/DC, you can use it in low-voltage applications. This float switch is used in applications such as vending machines and domestic appliances.

Features & Benefits


• Cable length of 1m for a flexible connection
• Cable sheathed in PVC for protection against abrasion and chemicals
• Nitrile rubber gasket is resistant to wear and chemicals for a leakproof seal

Can I change the switching action of this float switch?


Yes, you can easily change this switch's action from NO to NC or vice versa by inverting the float, making it a versatile choice.
