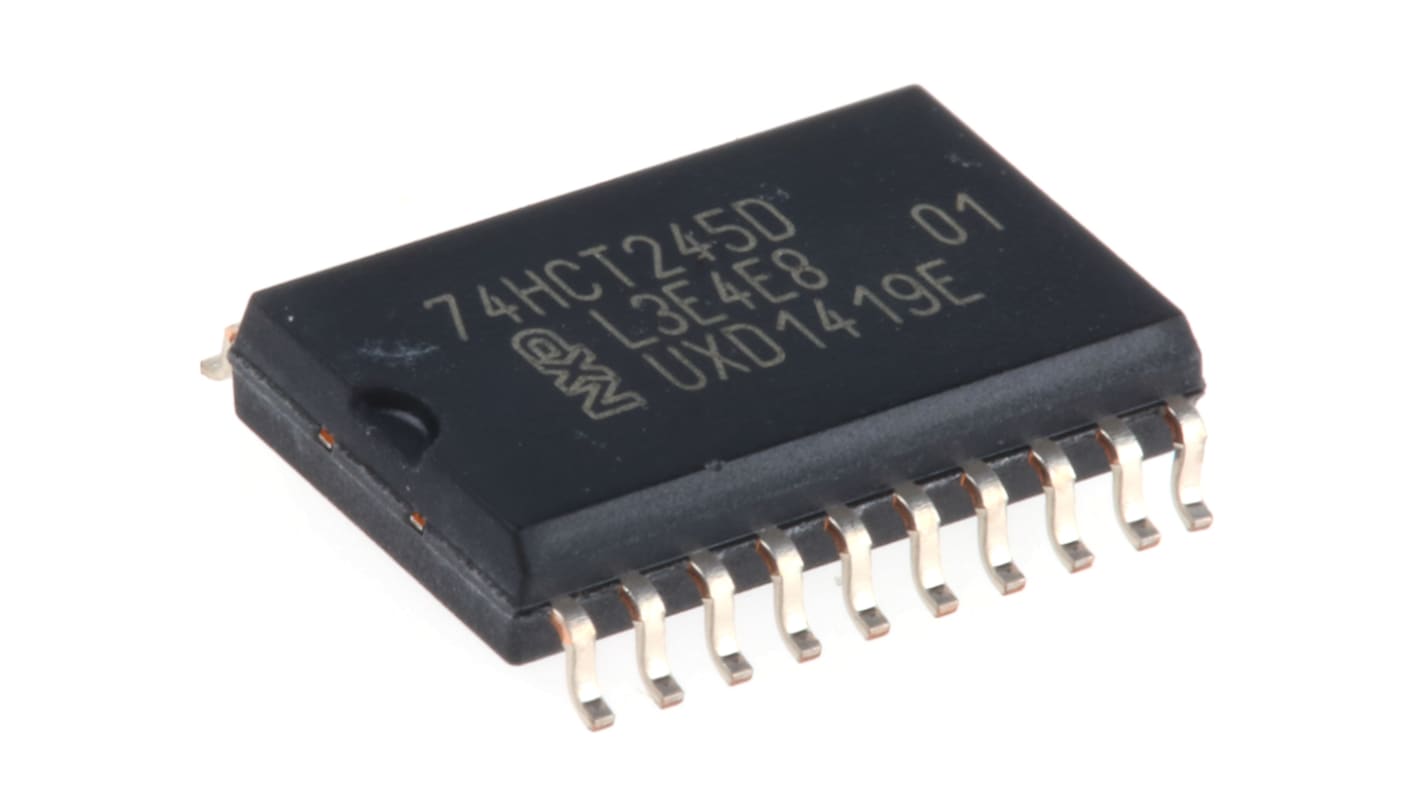

Nexperia 74HCT245D,652 Bus Transceiver Bus Transceiver, 20-Pin SOIC
- RS Stock No.:
- 113-0045
- Mfr. Part No.:
- 74HCT245D,652
- Brand:
- Nexperia
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 113-0045
- Mfr. Part No.:
- 74HCT245D,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Family | HCT | |
| Logic Function | Bus Transceiver | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 20 | |
| Number of Elements per Chip | 1 | |
| Maximum Propagation Delay Time @ Maximum CL | 22 ns@ 4.5 V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Dimensions | 13 x 7.6 x 2.45mm | |
| Height | 2.45mm | |
| Propagation Delay Test Condition | 50pF | |
| Width | 7.6mm | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Length | 13mm | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Family HCT | ||
Logic Function Bus Transceiver | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 20 | ||
Number of Elements per Chip 1 | ||
Maximum Propagation Delay Time @ Maximum CL 22 ns@ 4.5 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Dimensions 13 x 7.6 x 2.45mm | ||
Height 2.45mm | ||
Propagation Delay Test Condition 50pF | ||
Width 7.6mm | ||
Minimum Operating Supply Voltage 4.5 V | ||
Minimum Operating Temperature -40 °C | ||
Length 13mm | ||
Maximum Operating Temperature +125 °C | ||
74HCT Family Bus Transceivers, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
