Rexnord Beam Coupling, 210mm Outside Diameter, 75mm Bore, 138mm Length Coupler
- RS Stock No.:
- 808-7156
- Mfr. Part No.:
- OMEGA-E30-HUB-PB
- Brand:
- Rexnord
Bulk discount available
Subtotal (1 unit)*
£242.33
(exc. VAT)
£290.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £242.33 |
5 - 9 | £232.64 |
10 + | £222.93 |
*price indicative
- RS Stock No.:
- 808-7156
- Mfr. Part No.:
- OMEGA-E30-HUB-PB
- Brand:
- Rexnord
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Rexnord | |
Coupling Types | Beam Coupling | |
Bore | 75mm | |
Outside Diameter | 210mm | |
Length | 138mm | |
Torque Rating | 412Nm | |
Select all | ||
---|---|---|
Brand Rexnord | ||
Coupling Types Beam Coupling | ||
Bore 75mm | ||
Outside Diameter 210mm | ||
Length 138mm | ||
Torque Rating 412Nm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US

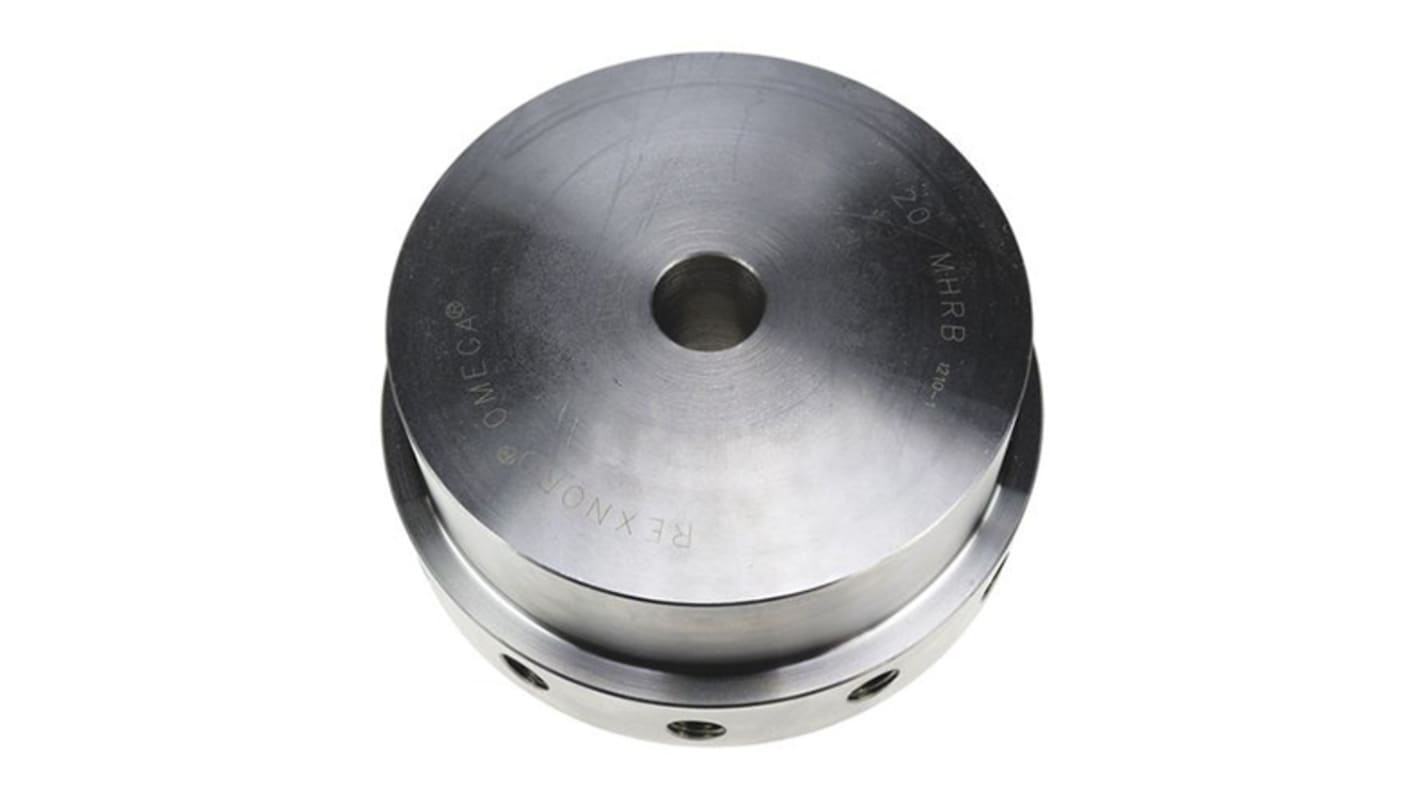

Rexnord Omega Elastomer Coupling - Steel Hub Pilot Bore
This elastomeric coupling hub is low maintenance requiring no lubrication. The soft polymer element (sold separately) is able to cope with, and correct for considerable mis-alignment. 2 piece polymer elements allow for quick removal and replacement without the need to disturb the hubs, shaft or remove equipment from its mountings.
Suitable for a diverse range of applications including centrifugal compressors and blowers, metal extruders, cooling towers, reciprocating pumps and forced draft fans.
Suitable for a diverse range of applications including centrifugal compressors and blowers, metal extruders, cooling towers, reciprocating pumps and forced draft fans.
Features and Benefits
Element E (short) and ES (long) available
For applications up to 7,500 rpm
Low maintenance
ATEX
For applications up to 7,500 rpm
Low maintenance
ATEX
Caution
One complete coupling requires the purchase of two hubs and a polymer connecting element
Approvals
ATEX approved
