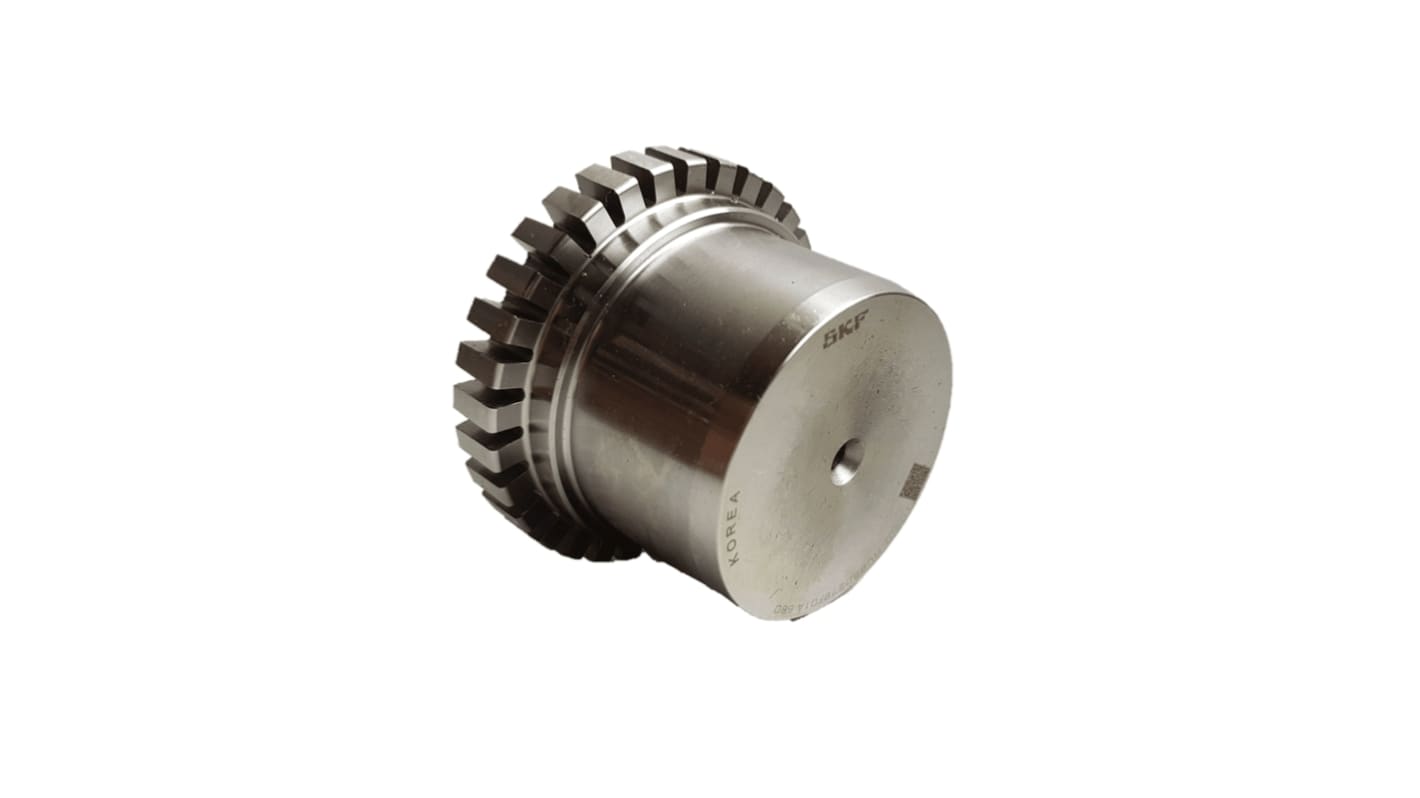

SKF Grid Coupling, 76mm Outside Diameter, 57mm Bore, 64mm Length Coupler
- RS Stock No.:
- 231-1922
- Mfr. Part No.:
- PHE 1060TGRSB
- Brand:
- SKF
Subtotal (1 unit)*
£64.14
(exc. VAT)
£76.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £64.14 |
*price indicative
- RS Stock No.:
- 231-1922
- Mfr. Part No.:
- PHE 1060TGRSB
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Coupling Types | Grid Coupling | |
Bore | 57mm | |
Outside Diameter | 76mm | |
Length | 64mm | |
Fastening Type | Set Screw | |
Torque Rating | 684Nm | |
Select all | ||
---|---|---|
Brand SKF | ||
Coupling Types Grid Coupling | ||
Bore 57mm | ||
Outside Diameter 76mm | ||
Length 64mm | ||
Fastening Type Set Screw | ||
Torque Rating 684Nm | ||
- COO (Country of Origin):
- KR
The SKF grid coupling has unique design of the grid and hub teeth enable these couplings to accommodate movement and stresses from all three planes, which can reduce vibration levels by as much as 30%. The tapered grid element is manufactured from a high strength alloy steel. The grid, which, is the primary wear component of the coupling is designed for quick and easy replacement unlike other couplings, the hubs and other components are not disturbed. This makes realignment virtually unnecessary and further reduces downtime and maintenance costs.
Coupling size 1060
Horizontal or a vertical position without modification
Horizontal or a vertical position without modification
