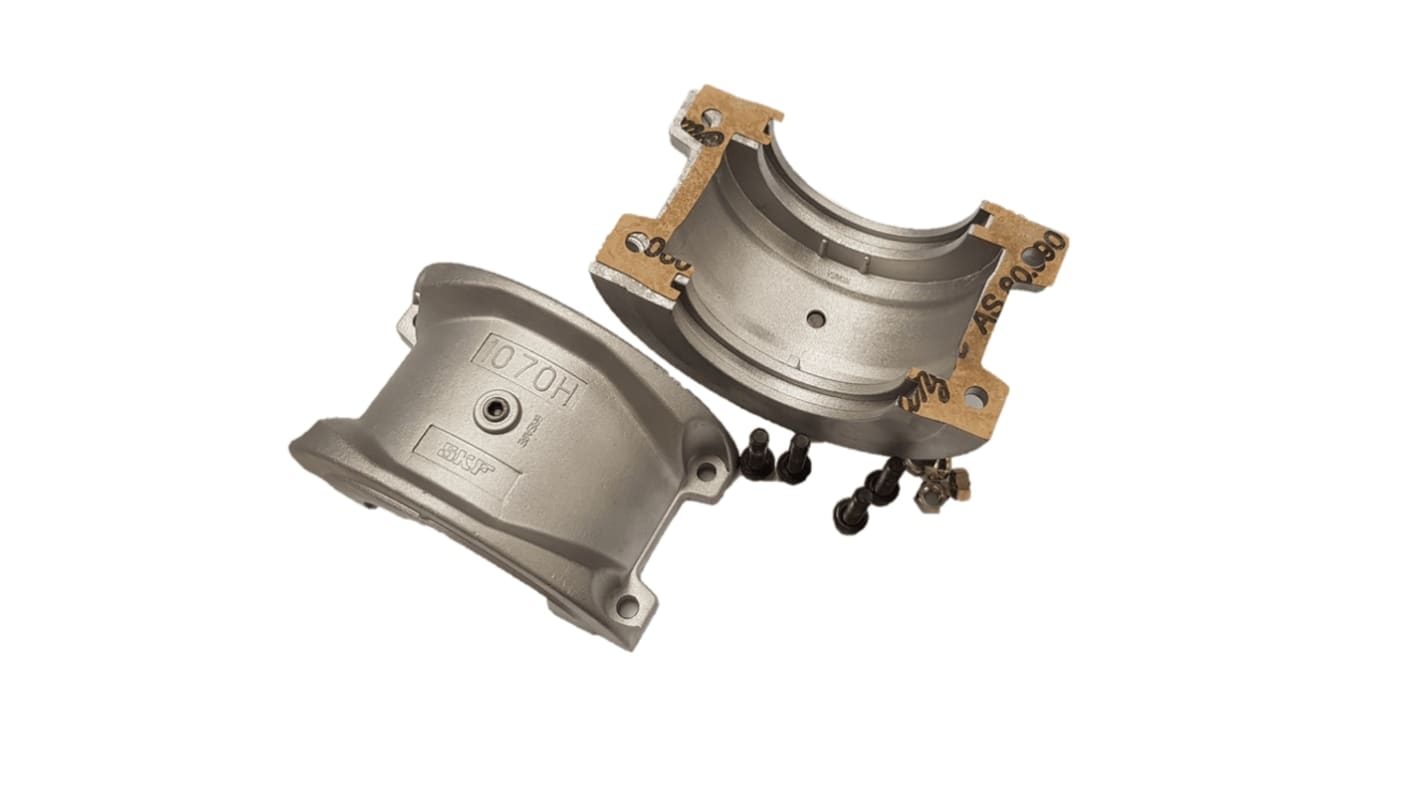

SKF Grid Coupling, 138mm Outside Diameter, 50mm Bore, 79mm Length Coupler
- RS Stock No.:
- 231-1918
- Mfr. Part No.:
- PHE 1050TGHCOVER
- Brand:
- SKF
Subtotal (1 unit)*
£42.98
(exc. VAT)
£51.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.98 |
*price indicative
- RS Stock No.:
- 231-1918
- Mfr. Part No.:
- PHE 1050TGHCOVER
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Coupling Types | Grid Coupling | |
Bore | 50mm | |
Outside Diameter | 138mm | |
Length | 79mm | |
Fastening Type | Horizontal Split Cover | |
Torque Rating | 435Nm | |
Select all | ||
---|---|---|
Brand SKF | ||
Coupling Types Grid Coupling | ||
Bore 50mm | ||
Outside Diameter 138mm | ||
Length 79mm | ||
Fastening Type Horizontal Split Cover | ||
Torque Rating 435Nm | ||
- COO (Country of Origin):
- KR
The SKF grid coupling has unique design of the grid and hub teeth enable these couplings to accommodate movement and stresses from all three planes, which can reduce vibration levels by as much as 30%. The tapered grid element is manufactured from a high strength alloy steel. The grid, which, is the primary wear component of the coupling is designed for quick and easy replacement unlike other couplings, the hubs and other components are not disturbed. This makes realignment virtually unnecessary and further reduces downtime and maintenance costs.
Coupling size 1050
Horizontal or a vertical position without modification
Horizontal or a vertical position without modification
