Ruland Beam Coupling, 19mm Outside Diameter, 8mm Bore, 31.8mm Length Coupler
- RS Stock No.:
- 186-4100
- Mfr. Part No.:
- FCMR19-8-5-A
- Brand:
- Ruland
Save 5% when you buy 10 units
Subtotal (1 unit)*
£54.28
(exc. VAT)
£65.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 5 | £54.28 |
6 - 9 | £52.11 |
10 + | £51.03 |
*price indicative
- RS Stock No.:
- 186-4100
- Mfr. Part No.:
- FCMR19-8-5-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 8mm | |
Coupling Types | Beam Coupling | |
Outside Diameter | 19mm | |
Length | 31.8mm | |
Misalignment - Angular | 3° | |
Misalignment - Parallel | 0.2mm | |
Misalignment - Axial | 0.13mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 8mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 19mm | ||
Length 31.8mm | ||
Misalignment - Angular 3° | ||
Misalignment - Parallel 0.2mm | ||
Misalignment - Axial 0.13mm | ||

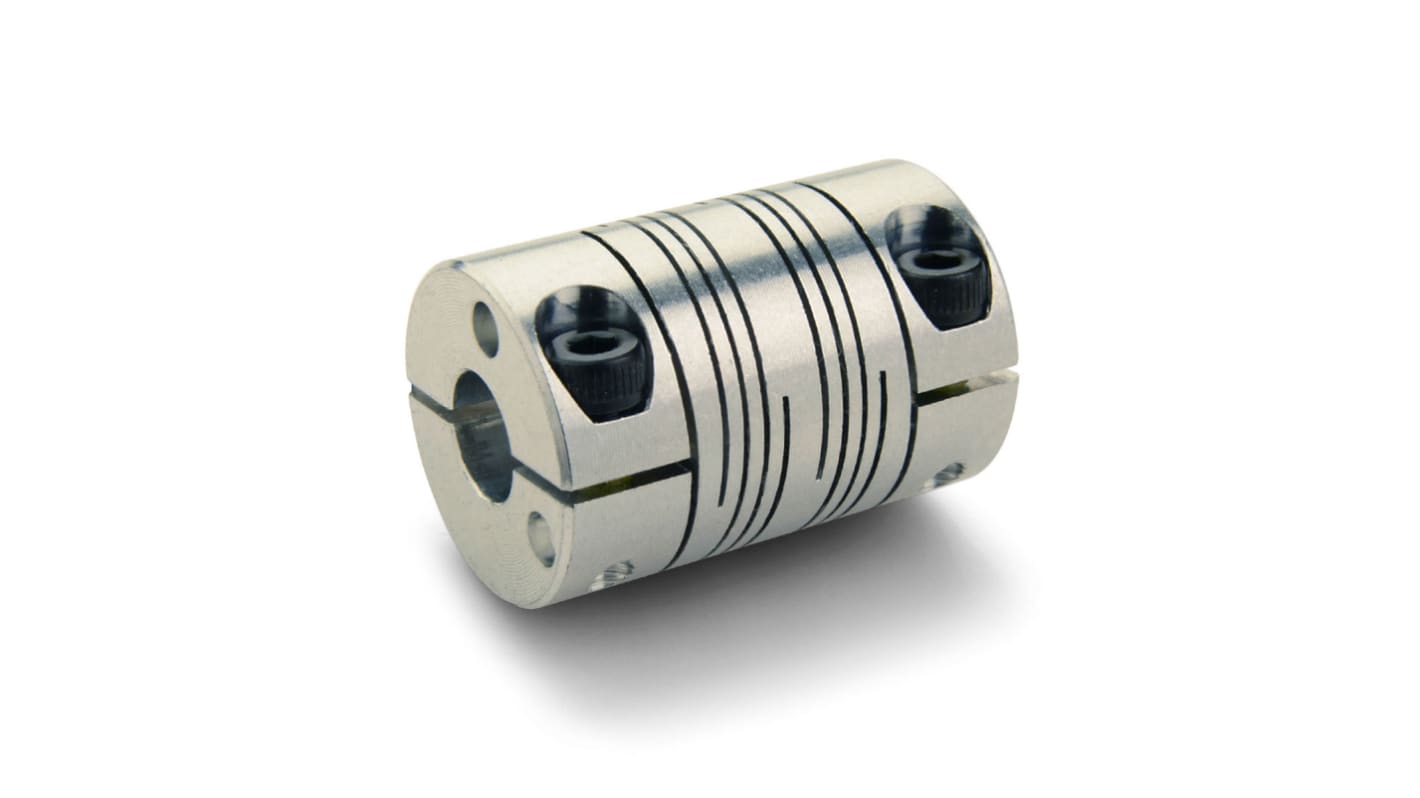

Ruland FCMR19-8-6-A is a six beam coupling with 8mm x 6mm bores, 19.1mm OD, and 31.8mm length. It is machined from a single piece of material and features two sets of three spiral cuts. This gives it higher torque capacity, lower windup, and larger body sizes than single or four beam couplings and allows for use in light duty power transmission applications such as coupling a servo motor to a lead screw. FCMR19-8-6-A is zero-backlash and has a balanced design for reduced vibration at high speeds of up to 6,000 RPM. Ruland supplies this spiral coupling with Nypatch® anti-vibration hardware that allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. All hardware is metric. FCMR19-8-6-A is made from 7075 aluminium for lightweight and low inertia. It is machined from bar stock that is sourced exclusively from North American mills. FCMR19-8-6-A is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.
