- RS Stock No.:
- 171-6703
- Mfr. Part No.:
- 707.25.2828
- Brand:
- Huco
13 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£38.65
(exc. VAT)
£46.38
(inc. VAT)
Units | Per unit |
1 + | £38.65 |
- RS Stock No.:
- 171-6703
- Mfr. Part No.:
- 707.25.2828
- Brand:
- Huco
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

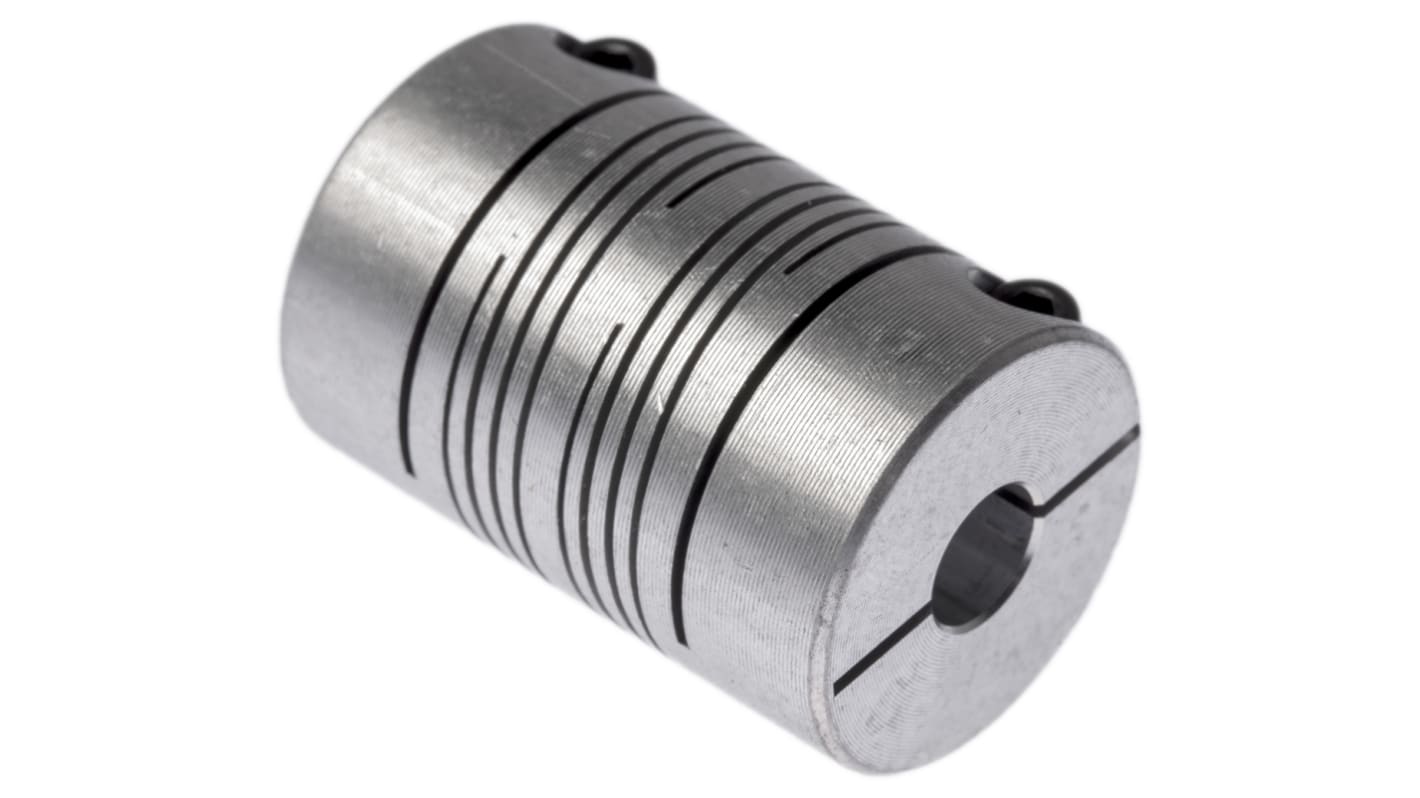

Huco Coupling
The Huco coupling has a 25mm OD. This is multi-beam type 6, aluminium clamp 8mm x 8mm coupling. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. Its 3 start helical cut design provides higher torque capability and reduced wind-up as compared to single beam versions.
Features and Benefits
• Torsionally rigid design
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
Applications
• High-end servo drives
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
Specifications
Attribute | Value |
---|---|
Bore | 8mm |
Coupling Types | Beam Coupling |
Outside Diameter | 25mm |
Length | 38.1mm |
Torque Rating | 10Nm |
Misalignment - Angular | 7° |
Misalignment - Parallel | 0.38mm |
