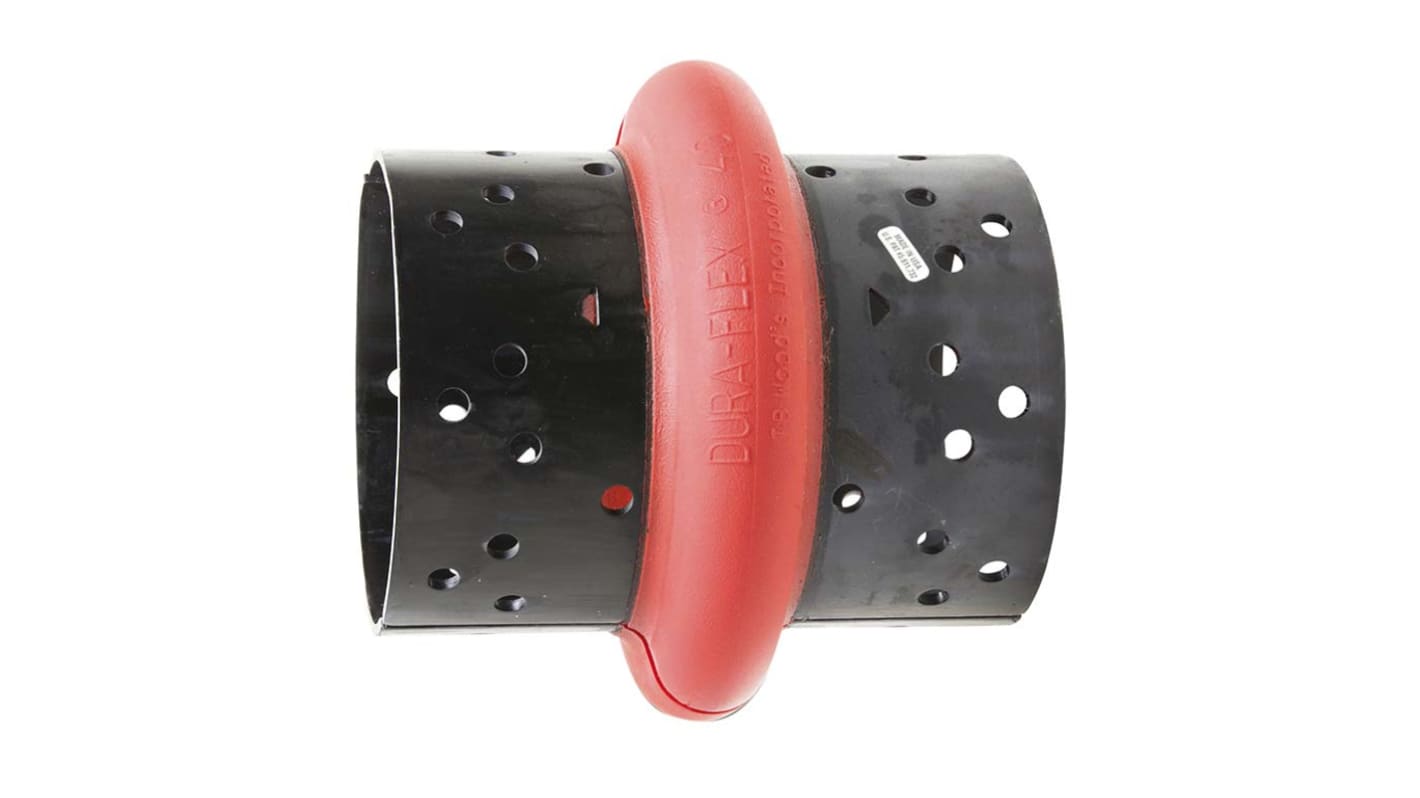

TB Woods 187mm OD Coupling
- RS Stock No.:
- 146-2832
- Mfr. Part No.:
- WES20M
- Brand:
- TB Woods
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-2832
- Mfr. Part No.:
- WES20M
- Brand:
- TB Woods
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TB Woods | |
| Coupling Types | Flexible Elastomer | |
| Outside Diameter | 187mm | |
| Length | 284mm | |
| Torque Rating | 260Nm | |
| Torsional Stiffness | 3120Nm/rad | |
| Misalignment - Angular | 3° | |
| Misalignment - Parallel | 2.4mm | |
Select all | ||
|---|---|---|
Brand TB Woods | ||
Coupling Types Flexible Elastomer | ||
Outside Diameter 187mm | ||
Length 284mm | ||
Torque Rating 260Nm | ||
Torsional Stiffness 3120Nm/rad | ||
Misalignment - Angular 3° | ||
Misalignment - Parallel 2.4mm | ||
- COO (Country of Origin):
- US
TB Wood’s Dura-Flex® couplings are designed from the ground up using finite element analysis to maximize flex life. Perfect for a wide variety of applications -- including those with uniform to heavy shock loads -- Dura-Flex® couplings employ a light weight element that absorbs shock loading and torsional vibration. These couplings are available in stock bore-to-size (BTS), Taper-Lock® and Sure-Grip® bushed (QD) hubs.
Up to 4. 50 kNm, 39,500 in/lb.
Easy to assemble/replace
High misalignment ratings
No maintenance/lubrication
Part-for-part interchangeable with industry standard design
Easy to assemble/replace
High misalignment ratings
No maintenance/lubrication
Part-for-part interchangeable with industry standard design
