Ruland Beam, 25mm Outside Diameter, 10mm Bore, 20mm Length Flexible Coupling

The RS PRO series of carbon film axial leaded resistors offer excellent long term stability and feature standard solder-plated copper leads. The carbon film is the most common axial leaded resistor which is used for applications where a very good tolerance and temperature coefficient are not necessary.

Available in resistances from 1 Ohm to 9.1 mOhm
0.25W power rating
5% tolerance
Resistor body 2.3 mm in diameter, 6.3 mm in length
Carbon film construction
Long-term stability
Solder plated copper leads

Carbon composition resistors are made from a moulded carbon powder that has been mixed with a phenolic resin to bind and create a uniform resistive body. It is then surrounded in an insulating case after attaching end leads.

The power rating of a resistor describes the amount of power that the resistor can dissipate safely.

Each of the colour bands has a specific meaning. The first two colours give the base value of the resistor, the next gives the multiplier and the final band the tolerance. If a resistor has five bands, it is a more precise resistor, in which the first three bands represent the base values, and the fourth and fifth represent the multiplier and tolerance respectively.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

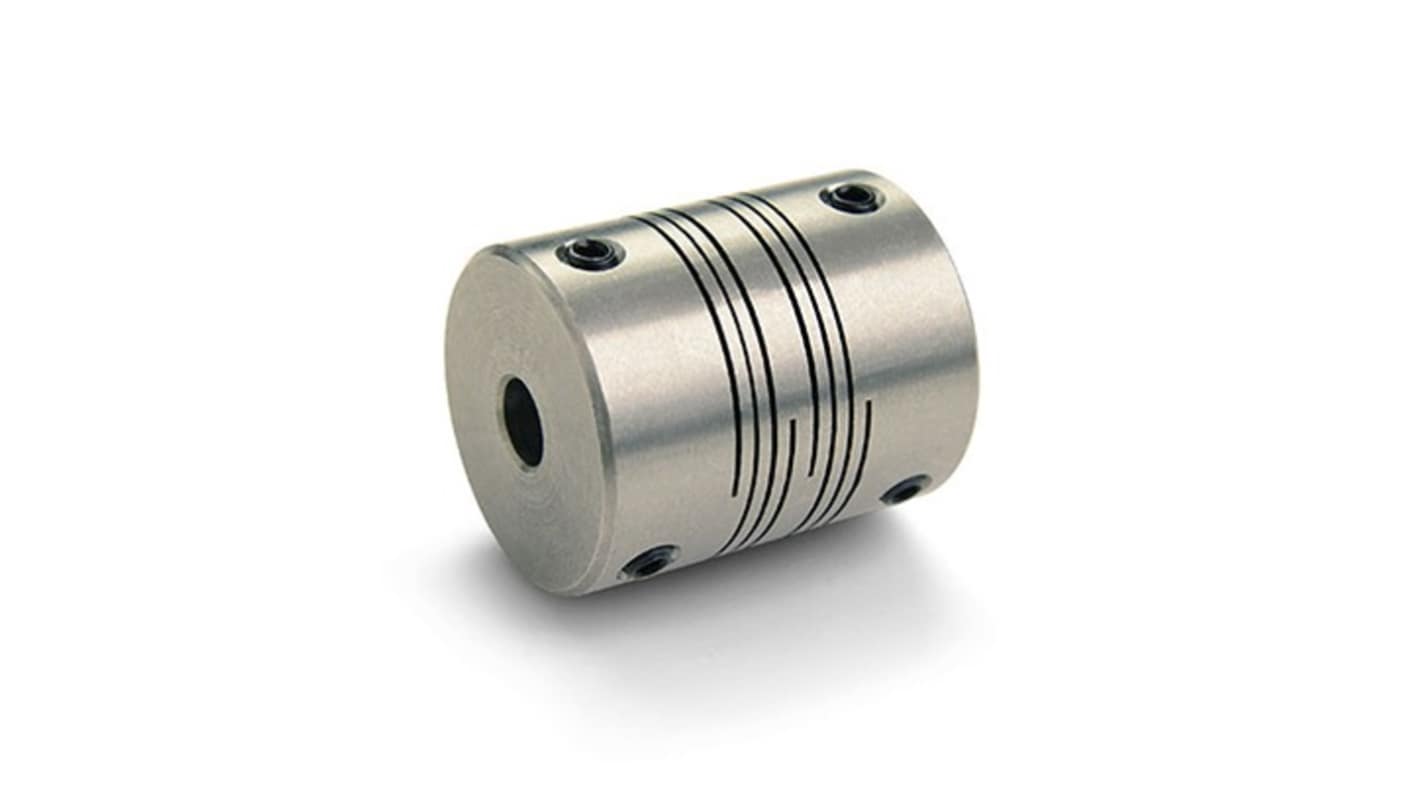

The Ruland Set screw style four beam coupling is expertly designed to meet the demands of precise mechanical applications. Manufactured from high-quality 303 stainless steel, it combines robustness and versatility, making it ideal for use in environments where reliability is crucial. With its unique spiral cut design, it offers enhanced torque capacity and minimal windup, ensuring optimal performance even at high speeds of up to 6,000 RPM. The compact size allows for seamless integration into tighter spaces, showcasing a balanced design which effectively reduces vibration during operation. Each coupling is meticulously crafted in the USA, adhering to stringent manufacturing standards, which ensures its compliance with RoHS3 and REACH regulations. Perfect for engineers and designers seeking a dependable component for their projects, this coupling guarantees zero backlash, thus enhancing the longevity and accuracy of the mechanical systems it joins.

Machined from a single piece of 303 stainless steel for maximum durability
Zero-backlash design to enhance precision in motion
Balanced construction reduces vibration for superior performance
Designed to support high torque while maintaining reliability
Compact dimensions allow for effective use in limited spaces

A comprehensive range of high stability carbon film resistors qualified and tested to the requirements of IEC 115 and IEC 115-2. The ruggedised welded cap and lead method of manufacture provides a considerable strength and resistance to damage. The coating materials and the colour bands are epoxy resin and are highly resistant to solvents, abrasion and chipping. Improvements in materials and processing have allowed the rated power to be improved. Excellent stability against changes in load conditions or moisture levels, with a low noise level and high reliability make these carbon film resistors suitable for a wide range of applications. Rated at 70°C in free air mounted horizontally. Climatic category 55/155/56.
