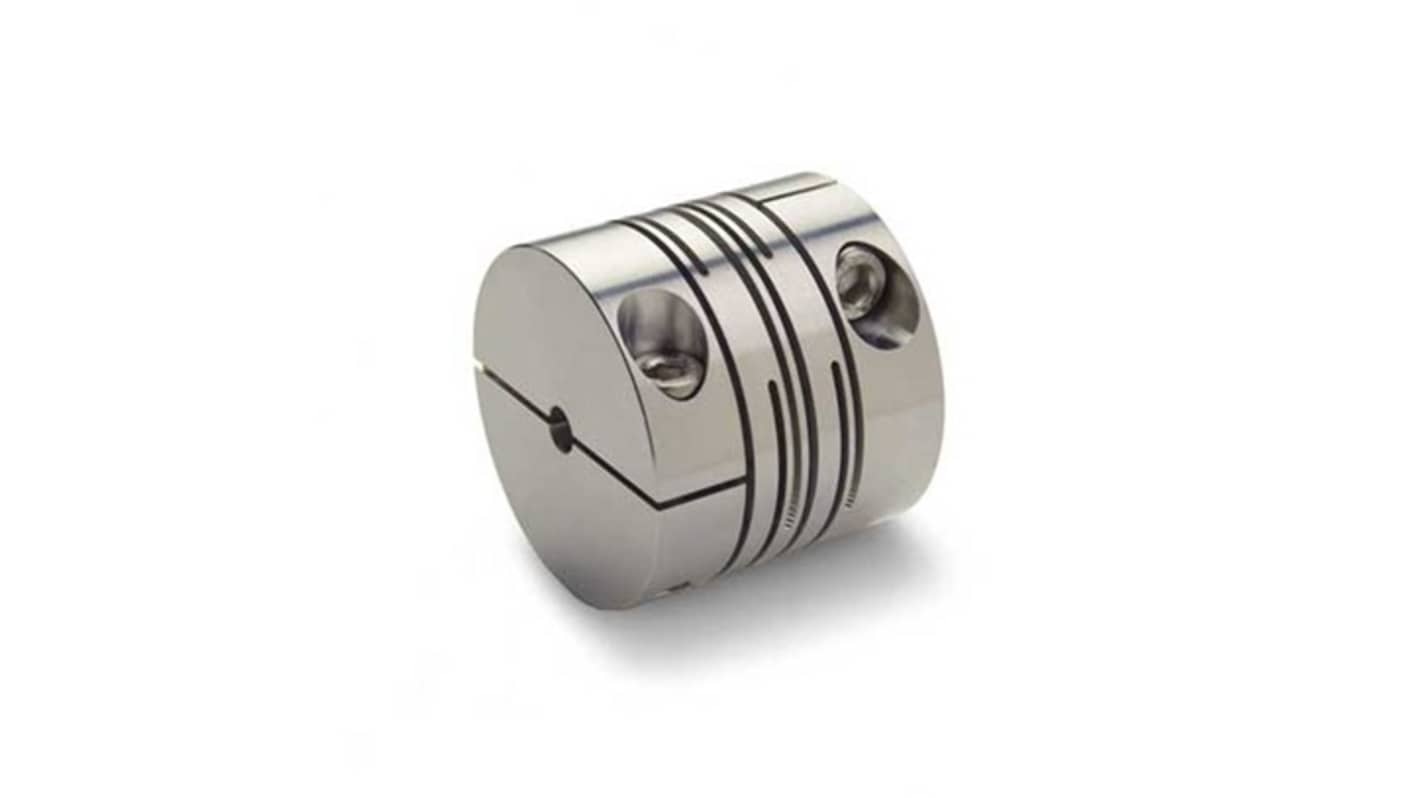

Ruland Flexible Beam, 20mm Outside Diameter, 5 mm, 9 mm Bore, 21.5mm Length Flexible Coupling
- RS Stock No.:
- 605-573
- Mfr. Part No.:
- MRSC20-9-5-A
- Brand:
- Ruland
Subtotal (1 unit)*
£128.78
(exc. VAT)
£154.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.78 |
*price indicative
- RS Stock No.:
- 605-573
- Mfr. Part No.:
- MRSC20-9-5-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore | 5 mm, 9 mm | |
| Coupling Types | Flexible Beam | |
| Outside Diameter | 20mm | |
| Length | 21.5mm | |
| Fastening Type | Clamp | |
| Torque Rating | 2.45Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Bore 5 mm, 9 mm | ||
Coupling Types Flexible Beam | ||
Outside Diameter 20mm | ||
Length 21.5mm | ||
Fastening Type Clamp | ||
Torque Rating 2.45Nm | ||
- COO (Country of Origin):
- IE
Recom 2W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R2S & R2D Series
Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Note
Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).
MTBF to MIL-HDBK 217F (+25°C).
Standards
UL60950-1, EN-60950-1
Approvals
CB, CSA, UL recognised component
The Ruland Clamp style slit coupling is manufactured from a single piece of material and has two sets of intermittent slit cuts allowing for a maintenance-free coupling with high torsional stiffness. It is commonly used in precise positioning applications found in semiconductor, medical, and test and measurement equipment. This short style slit coupling is ideal for compact installations.
Zero backlash
Requires full bearing support
REACH compliant
RoHS compliant
Requires full bearing support
REACH compliant
RoHS compliant
