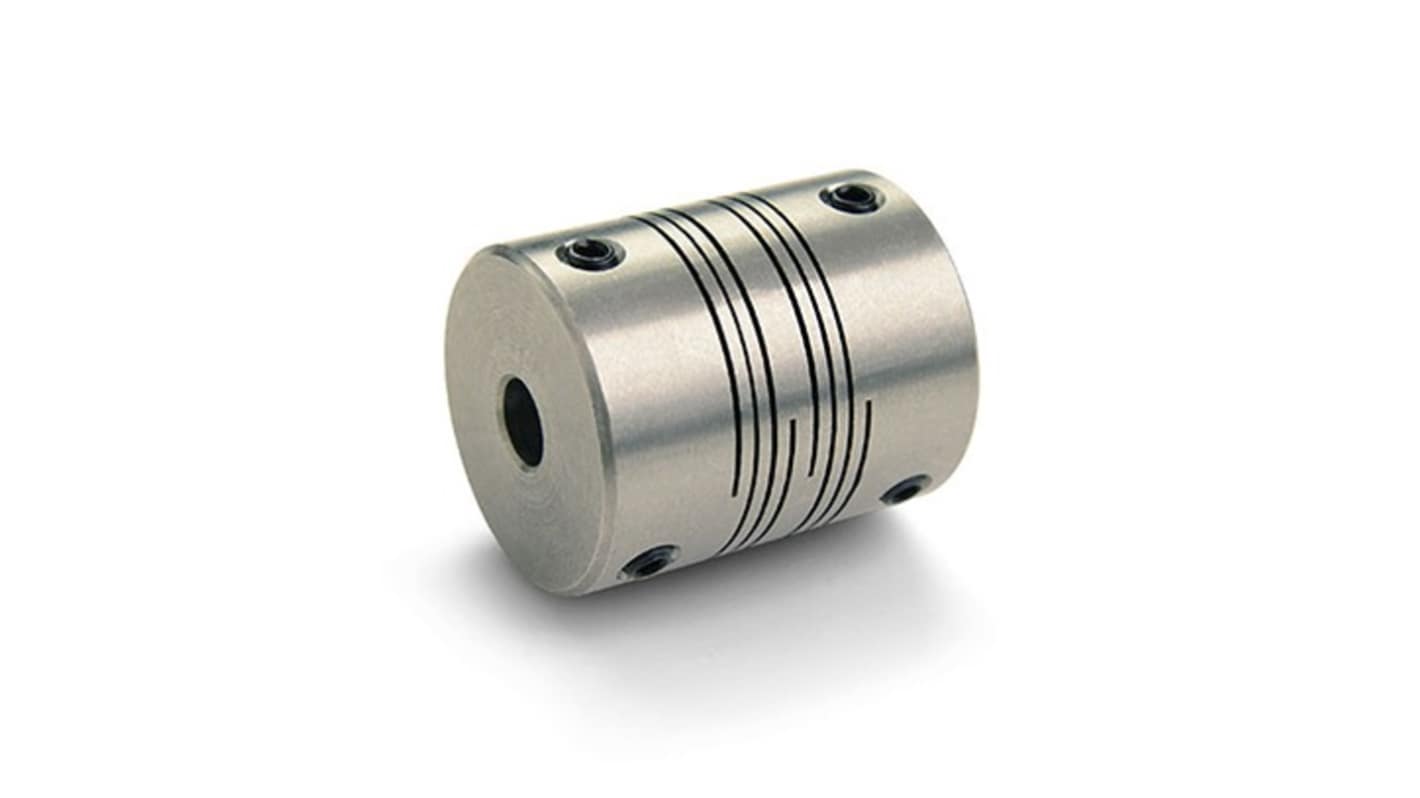

Ruland Beam, 22mm Outside Diameter, 7mm Bore, 27mm Length Flexible Coupling
- RS Stock No.:
- 604-748
- Mfr. Part No.:
- PSMR22-7-7-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£115.52
(exc. VAT)
£138.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £115.52 |
*price indicative
- RS Stock No.:
- 604-748
- Mfr. Part No.:
- PSMR22-7-7-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam | |
Bore | 7mm | |
Outside Diameter | 22mm | |
Length | 27mm | |
Fastening Type | Set Screw | |
Torque Rating | 3.05Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam | ||
Bore 7mm | ||
Outside Diameter 22mm | ||
Length 27mm | ||
Fastening Type Set Screw | ||
Torque Rating 3.05Nm | ||
- COO (Country of Origin):
- US
The Ruland Top-tier set screw style four beam coupling, engineered for exceptional performance in dynamic applications. Its unique construction from a single piece of 303 stainless steel showcases superior torque capacity and enhanced longevity. With an outer diameter of 22.2 mm and a length of 27.0 mm, this coupling also maintains a balanced design that effectively reduces vibrations at elevated speeds, supporting operations up to 6,000 RPM. The innovative spiral cut design accommodates greater body sizes compared to traditional single beam couplings and ensures zero backlash functionality. Additionally, it is crafted under stringent manufacturing controls in Marlborough, MA, to deliver consistent quality and reliability.
Designed for high torque capacity and minimal windup
Constructed from RoHS3 and REACH compliant materials
Incorporates rigorous testing standards for maximum torque capabilities
Features a metric hardware design for compatibility with various applications
Manufactured in compliance with strict quality control processes
Supports dynamic and static torque ratings for reliable performance
Constructed from RoHS3 and REACH compliant materials
Incorporates rigorous testing standards for maximum torque capabilities
Features a metric hardware design for compatibility with various applications
Manufactured in compliance with strict quality control processes
Supports dynamic and static torque ratings for reliable performance
