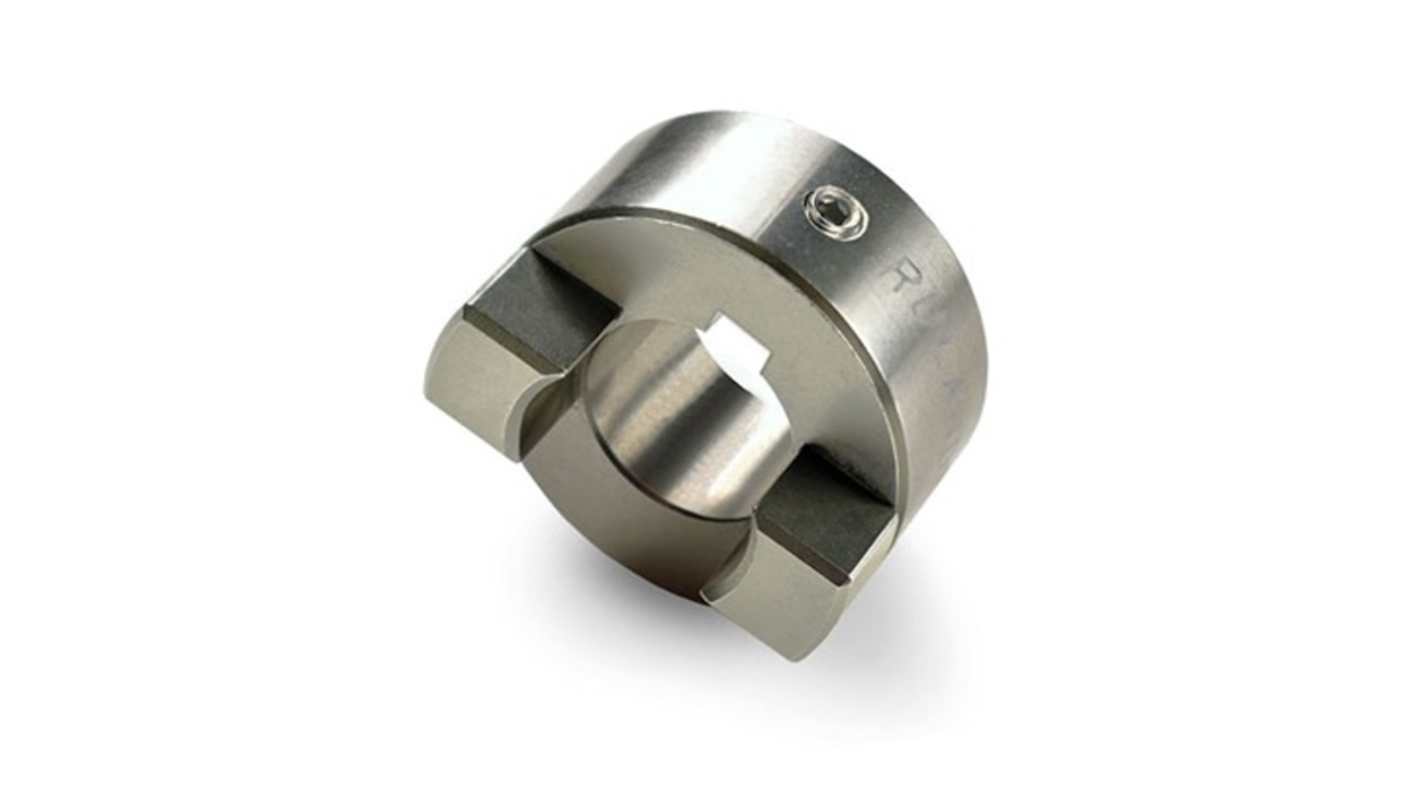

Ruland Oldham, 41mm Outside Diameter, 10mm Bore, 50.8mm Length Oldham Coupling
- RS Stock No.:
- 604-360
- Mfr. Part No.:
- MOSC41-10-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£170.93
(exc. VAT)
£205.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £170.93 |
*price indicative
- RS Stock No.:
- 604-360
- Mfr. Part No.:
- MOSC41-10-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 10mm | |
Coupling Types | Oldham | |
Outside Diameter | 41mm | |
Length | 50.8mm | |
Fastening Type | Set Screw | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 10mm | ||
Coupling Types Oldham | ||
Outside Diameter 41mm | ||
Length 50.8mm | ||
Fastening Type Set Screw | ||
- COO (Country of Origin):
- US
The Ruland Set Screw Oldham Coupling Hub is a component of a three-piece design consisting of two anodized aluminum hubs press-fit onto a center disk. This design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Disks are available in three materials, allowing users to tailor the couplings performance to their specific application. It can accommodate all forms of misalignment and is especially useful in applications with high parallel misalignment (up to 10% of the OD).
Balanced design for reduced vibration at high speeds
Operates with low bearing loads protecting sensitive system components such as bearings
Machined from bar stock that is sourced exclusively from North American mills
RoHS compliant
REACH compliant
Zero backlash
Operates with low bearing loads protecting sensitive system components such as bearings
Machined from bar stock that is sourced exclusively from North American mills
RoHS compliant
REACH compliant
Zero backlash
