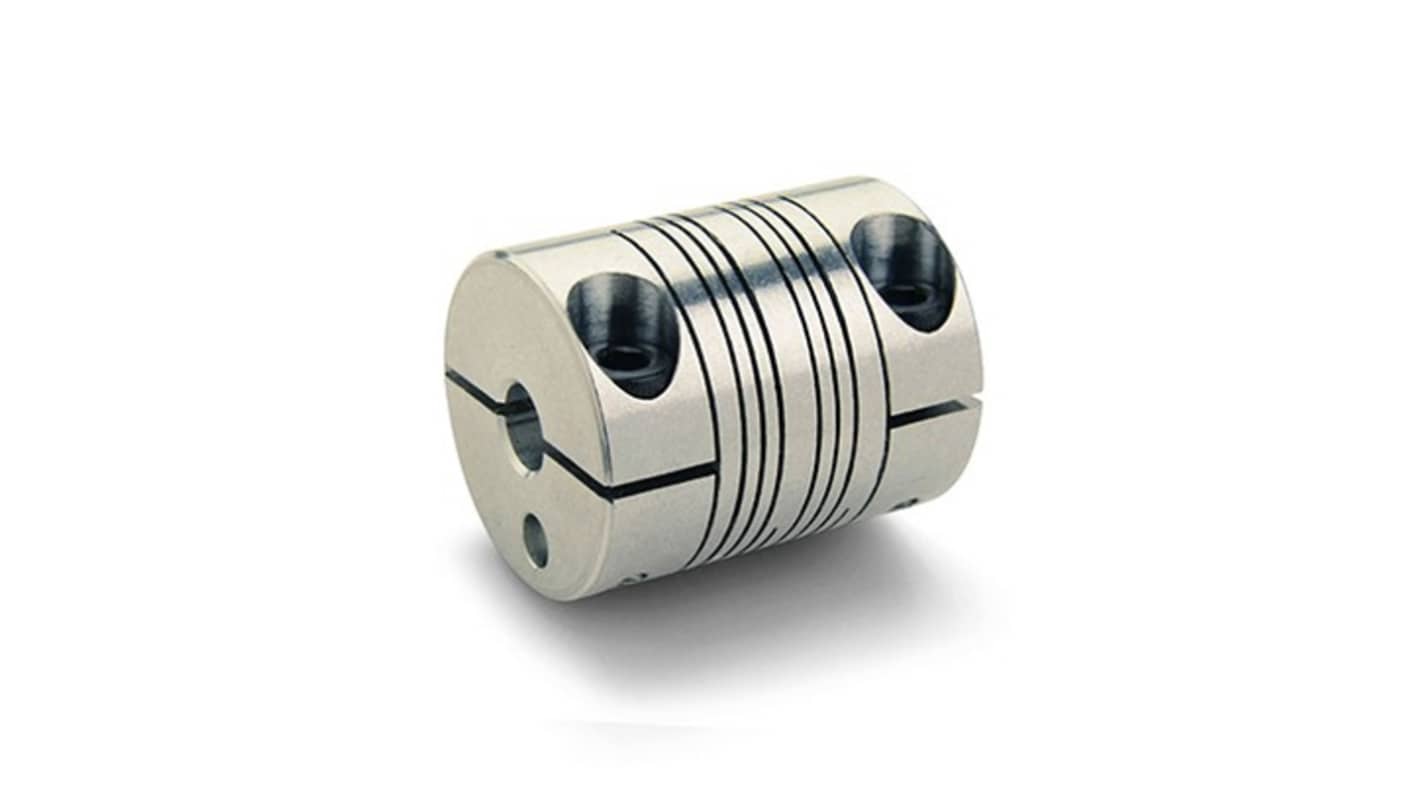

Ruland Beam, 31.8mm Outside Diameter, 9 mm, 10 mm Bore, 38.1mm Length Flexible Coupling
- RS Stock No.:
- 603-810
- Mfr. Part No.:
- PCMR32-10-9-A
- Brand:
- Ruland
Subtotal (1 unit)*
£78.71
(exc. VAT)
£94.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.71 |
*price indicative
- RS Stock No.:
- 603-810
- Mfr. Part No.:
- PCMR32-10-9-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore | 9 mm, 10 mm | |
| Coupling Types | Beam | |
| Outside Diameter | 31.8mm | |
| Length | 38.1mm | |
| Fastening Type | Clamp | |
| Torque Rating | 4.6Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Bore 9 mm, 10 mm | ||
Coupling Types Beam | ||
Outside Diameter 31.8mm | ||
Length 38.1mm | ||
Fastening Type Clamp | ||
Torque Rating 4.6Nm | ||
- COO (Country of Origin):
- US
0402 TE Connectivity CPF Series Precision Resistors 40.2Ω-147Ω
CPF precision resistors are constructed from an alumina substrate with a Nichrome (NiCr) resistor layer. They feature an electroplated tin finish that is 100% matte. Offered in a range of standard case sizes these chip resistors have uniform, accurate dimensions that enable easy placement.
CPF series thin film precision resistors from TE Connectivity provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.
CPF series thin film precision resistors from TE Connectivity provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.
Features
High precision
High stability
Accurate dimensions
Temperature range of -55°C to +155°C
Range of resistance values available to suit every application
High stability
Accurate dimensions
Temperature range of -55°C to +155°C
Range of resistance values available to suit every application
Product Application Information
Suitable applications for CPF precision resistors include communications, industrial controls, instrumentation and medical applications.
The Ruland Clamp style four beam coupling is designed to connect shafts with precision and efficiency, ensuring seamless performance in your application. Engineered from a single piece of 7075 aluminum, it achieves a remarkable balance between lightweight construction and robust torque capacity. The carefully crafted design features spiral cuts that provide zero backlash and reduce vibration at high speeds, making it ideal for dynamic environments. Capable of accommodating misalignments with ease, this coupling is engineered to excel at speeds up to 6,000 RPM while maintaining the utmost reliability. With stringent manufacturing processes and adherence to high standards, this product reflects quality and durability, suitable for various industrial applications.
Guaranteed zero-backlash performance enhances operational accuracy
The balanced design minimizes vibrations, ensuring smooth functionality
Precision machined from high-grade 7075 aluminum for lightweight yet sturdy construction
Can handle high speeds up to 6,000 RPM for demanding applications
Constructed to exceed DIN standards for maximum torque capabilities
Features robust spiral cuts for improved torque capacity and lower windup
The balanced design minimizes vibrations, ensuring smooth functionality
Precision machined from high-grade 7075 aluminum for lightweight yet sturdy construction
Can handle high speeds up to 6,000 RPM for demanding applications
Constructed to exceed DIN standards for maximum torque capabilities
Features robust spiral cuts for improved torque capacity and lower windup
Surface Mount - 0402 - CPF Series
