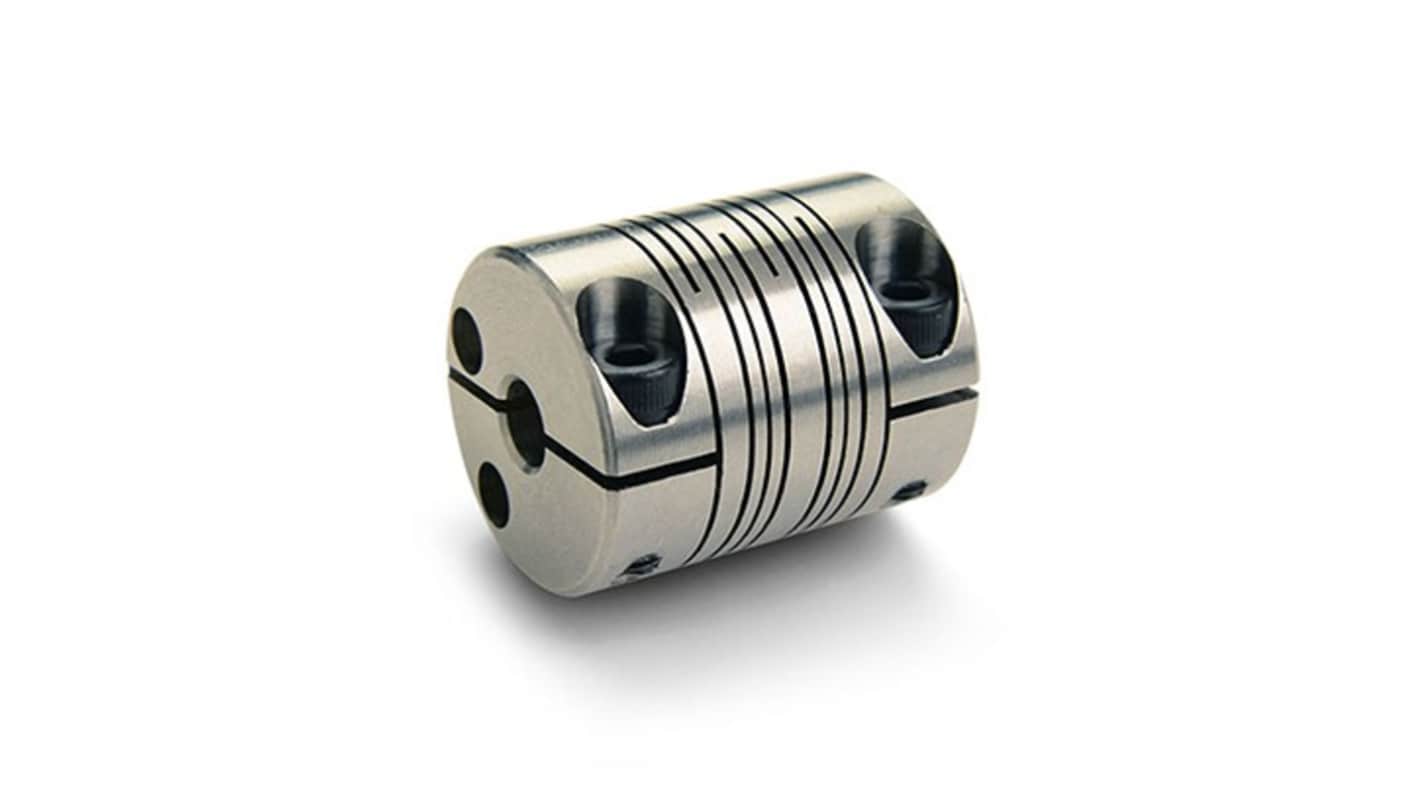

Ruland Beam, 31.8mm Outside Diameter, 10mm Bore, 38.1mm Length Flexible Coupling
- RS Stock No.:
- 603-795
- Mfr. Part No.:
- PCMR32-10-10-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£169.94
(exc. VAT)
£203.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £169.94 |
*price indicative
- RS Stock No.:
- 603-795
- Mfr. Part No.:
- PCMR32-10-10-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam | |
Bore | 10mm | |
Outside Diameter | 31.8mm | |
Length | 38.1mm | |
Fastening Type | Clamp | |
Torque Rating | 4.6Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam | ||
Bore 10mm | ||
Outside Diameter 31.8mm | ||
Length 38.1mm | ||
Fastening Type Clamp | ||
Torque Rating 4.6Nm | ||
- COO (Country of Origin):
- US
SY Z Series Cassette Valves
Compact, lightweight body ported design
Easily configured and expandable valve system
Valves supplied complete with sealing discs
High flow, fast response
Standard, DIN rail mounting
24Vdc solenoid voltage
Low power consumption
Easily configured and expandable valve system
Valves supplied complete with sealing discs
High flow, fast response
Standard, DIN rail mounting
24Vdc solenoid voltage
Low power consumption
Note
'L' type connector must be ordered separately
The Ruland Clamp style four beam coupling is crafted from a single piece of 303 stainless steel, ensuring robust performance in demanding applications. Designed to accommodate 10mm x 10mm shafts, it boasts a compact form factor with a diameter of 31.8mm and a length of 38.1mm, making it ideal for precision engineering. The innovative spiral cut design increases torque capacity while minimizing windup, thus providing superior performance at high speeds. Able to handle angular misalignment of up to 3° and parallel misalignment of 0.38mm, this coupling also guarantees zero backlash for enhanced accuracy and reliability. Manufactured under strict quality controls in the USA, this product meets rigorous industry standards, making it a trusted choice for engineers.
Constructed from high-quality 303 stainless steel for increased durability
Balanced design helps reduce vibrations during high-speed operation
Zero-backlash functionality allows for precise torque transmission
Optimized for a maximum speed of up to 6,000 RPM
Compatible with metric hardware, ensuring ease of installation
Meets stringent RoHS3 and REACH compliance standards
Balanced design helps reduce vibrations during high-speed operation
Zero-backlash functionality allows for precise torque transmission
Optimized for a maximum speed of up to 6,000 RPM
Compatible with metric hardware, ensuring ease of installation
Meets stringent RoHS3 and REACH compliance standards
SMC SY Z Series
A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.
