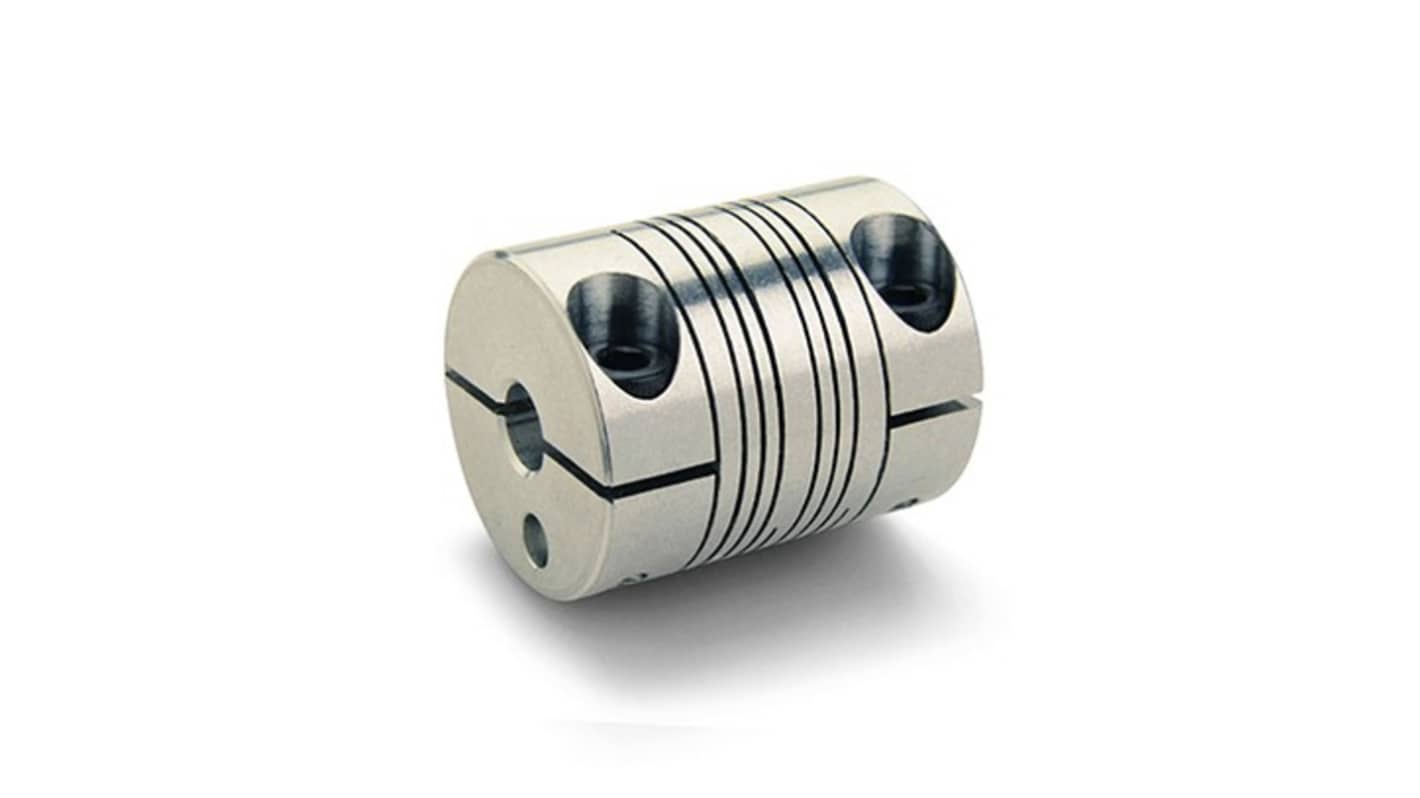

Ruland Beam, 30mm Outside Diameter, 10 mm, 11 mm Bore, 38mm Length Flexible Coupling
- RS Stock No.:
- 603-771
- Mfr. Part No.:
- MWC30-11-10-A
- Brand:
- Ruland
Subtotal (1 unit)*
£80.72
(exc. VAT)
£96.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £80.72 |
*price indicative
- RS Stock No.:
- 603-771
- Mfr. Part No.:
- MWC30-11-10-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam | |
Bore | 10 mm, 11 mm | |
Outside Diameter | 30mm | |
Length | 38mm | |
Fastening Type | Clamp | |
Torque Rating | 4.6Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam | ||
Bore 10 mm, 11 mm | ||
Outside Diameter 30mm | ||
Length 38mm | ||
Fastening Type Clamp | ||
Torque Rating 4.6Nm | ||
- COO (Country of Origin):
- US
Compact Force Gauge (CFG+)
Accurcay ±0.5% of full scale
Peak hold in tension and compression
Lightweight pastic case
Overload warning
Auto-off function
Powered by 4 x AAA batteries
RS232 output
CE mark
Peak hold in tension and compression
Lightweight pastic case
Overload warning
Auto-off function
Powered by 4 x AAA batteries
RS232 output
CE mark
Supplied with
Test hook, compression plate and short extension.
The Ruland Four beam coupling is engineered to provide exceptional performance in high-torque applications. The clamp style design ensures a secure fit between shafts with bore sizes of 11mm and 10mm, while its robust aluminum construction offers a lightweight yet strong solution. With a balanced design, this coupling significantly reduces vibration during high-speed operation, making it suitable for applications up to 6,000 RPM. The meticulous machining process and proprietary methods guarantee a precise fit and enhanced functionality, ensuring this coupling not only meets but exceeds the demands of the most discerning engineers. Adhering to stringent manufacturing standards in Marlborough, MA, this coupling also features RoHS3 and REACH compliance, reflecting a commitment to quality and environmental responsibility.
Machined from a single piece of material for enhanced durability
Zero-backlash design ensures precise power transfer
Capability to handle dynamic torque for both reversing and non-reversing applications
Compatible with metric hex keys, facilitating easy installation
Designed to maintain performance in extreme temperature ranges
Zero-backlash design ensures precise power transfer
Capability to handle dynamic torque for both reversing and non-reversing applications
Compatible with metric hex keys, facilitating easy installation
Designed to maintain performance in extreme temperature ranges
