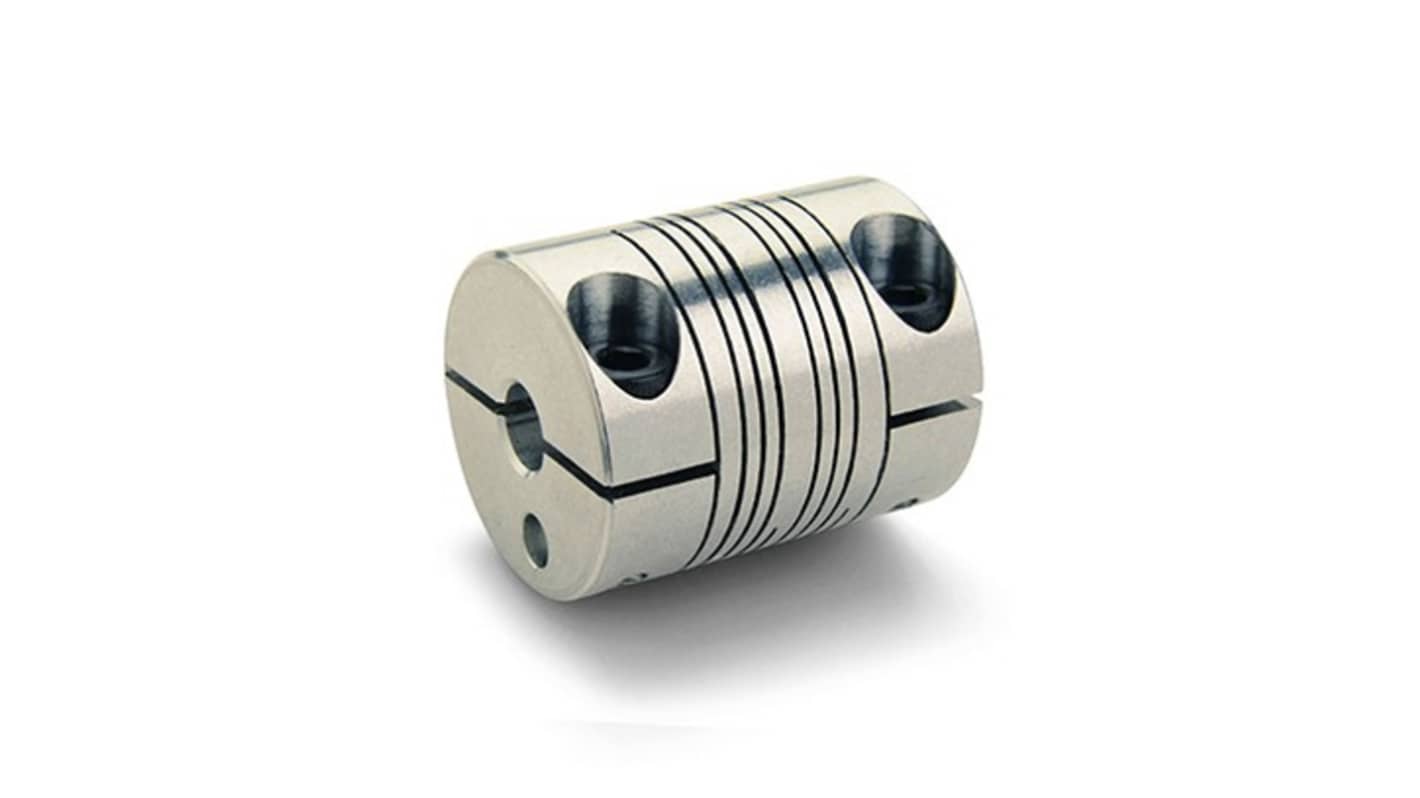

Ruland Beam, 30mm Outside Diameter, 8 mm, 11 mm Bore, 38mm Length Flexible Coupling
- RS Stock No.:
- 603-834
- Mfr. Part No.:
- MWC30-11-8-A
- Brand:
- Ruland
Subtotal (1 unit)*
£80.72
(exc. VAT)
£96.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £80.72 |
*price indicative
- RS Stock No.:
- 603-834
- Mfr. Part No.:
- MWC30-11-8-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore | 8 mm, 11 mm | |
| Coupling Types | Beam | |
| Outside Diameter | 30mm | |
| Length | 38mm | |
| Fastening Type | Clamp | |
| Torque Rating | 4.6Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Bore 8 mm, 11 mm | ||
Coupling Types Beam | ||
Outside Diameter 30mm | ||
Length 38mm | ||
Fastening Type Clamp | ||
Torque Rating 4.6Nm | ||
- COO (Country of Origin):
- US
0402 TE Connectivity CPF Series Precision Resistors 25.5kΩ-78.7kΩ
CPF precision resistors are constructed from an alumina substrate with a Nichrome (NiCr) resistor layer. They feature an electroplated tin finish that is 100% matte. Offered in a range of standard case sizes these chip resistors have uniform, accurate dimensions that enable easy placement.
CPF series thin film precision resistors from TE Connectivity provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.
CPF series thin film precision resistors from TE Connectivity provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.
Features
High precision
High stability
Accurate dimensions
Temperature range of -55°C to +155°C
Range of resistance values available to suit every application
High stability
Accurate dimensions
Temperature range of -55°C to +155°C
Range of resistance values available to suit every application
Product Application Information
Suitable applications for CPF precision resistors include communications, industrial controls, instrumentation and medical applications
The Ruland Clamp style four beam coupling combines the innovative design of machined beams with the practicality needed for precision applications. Crafted from aircraft-grade aluminum, the product boasts lightweight construction without compromising strength. It features an advanced zero-backlash design that ensures accurate torque transmission and enhanced performance, particularly at high speeds of up to 6,000 RPM. Ideal for scenarios with tight space constraints, this coupling allows for seamless interchanges from single beam couplings and effectively handles angular and parallel misalignment. Free from slippage issues, it maintains performance integrity under maximum torque limits. The machining process adheres to stringent quality controls and standards, guaranteeing reliability and operational consistency in various mechanical assemblies. With essential metrics fully integrated into its design, this coupling meets the demands of contemporary engineering applications.
Machined from a single piece of 7075 aluminum for superior strength and reduced inertia
Utilizes advanced spiral cuts for improved torque capacity and reduced windup
Engineered for high-speed applications, maintaining balance and minimizing vibration
Utilizes advanced spiral cuts for improved torque capacity and reduced windup
Engineered for high-speed applications, maintaining balance and minimizing vibration
