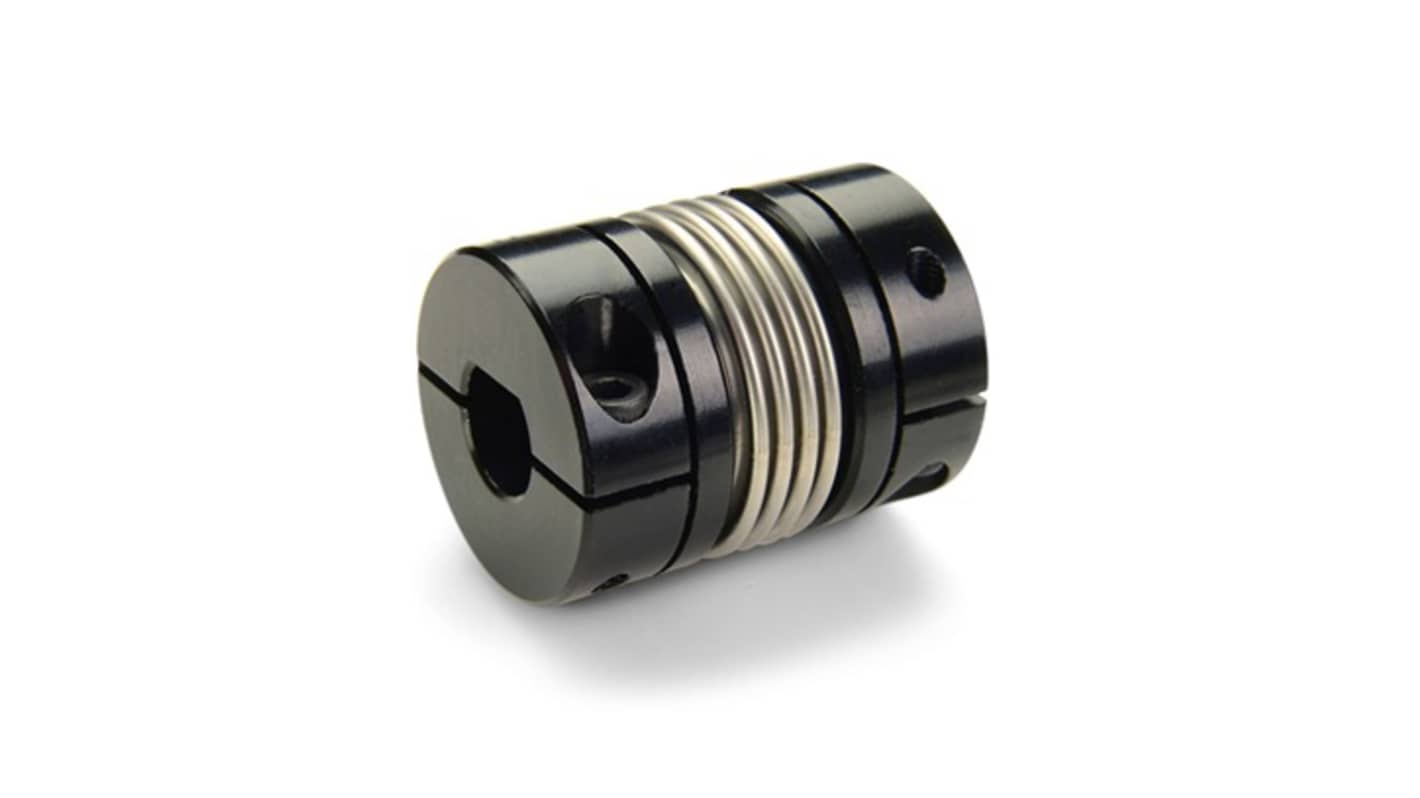

Ruland Bellows, 15mm Outside Diameter, 4/3.5 mm, 5/4.5 mm Bore, 27.3mm Length Bellows Coupling
- RS Stock No.:
- 603-572
- Mfr. Part No.:
- MBC15-5/4.5D-4/3.5D-A
- Brand:
- Ruland
Subtotal (1 unit)*
£224.23
(exc. VAT)
£269.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £224.23 |
*price indicative
- RS Stock No.:
- 603-572
- Mfr. Part No.:
- MBC15-5/4.5D-4/3.5D-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Coupling Types | Bellows | |
| Bore | 4/3.5 mm, 5/4.5 mm | |
| Outside Diameter | 15mm | |
| Length | 27.3mm | |
| Fastening Type | Clamp | |
| Torque Rating | 2.5Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Coupling Types Bellows | ||
Bore 4/3.5 mm, 5/4.5 mm | ||
Outside Diameter 15mm | ||
Length 27.3mm | ||
Fastening Type Clamp | ||
Torque Rating 2.5Nm | ||
- COO (Country of Origin):
- US
Jacks
Cable outer Ø 5 mm (size 4, 6, 8) / 7mm (size 9)
The Ruland High stiffness D-Bore bellows coupling allows for positive drive in applications where the coupling can not slip. It has fewer convolutions than comparably sized high misalignment styles allowing for increased torsional stiffness making it the ideal choice for precision positioning applications. It is comprised of two anodized aluminium hubs and a stainless steel bellows for lightweight and low inertia.
RoHS3 and REACH compliant
Balanced design for reduced vibration at high speeds up to 10000 RPM
Hardware is metric and tests beyond DIN 912 12.9 standards
Thin walls of the bellows are able to flex while remaining rigid under torsional loads
Balanced design for reduced vibration at high speeds up to 10000 RPM
Hardware is metric and tests beyond DIN 912 12.9 standards
Thin walls of the bellows are able to flex while remaining rigid under torsional loads
