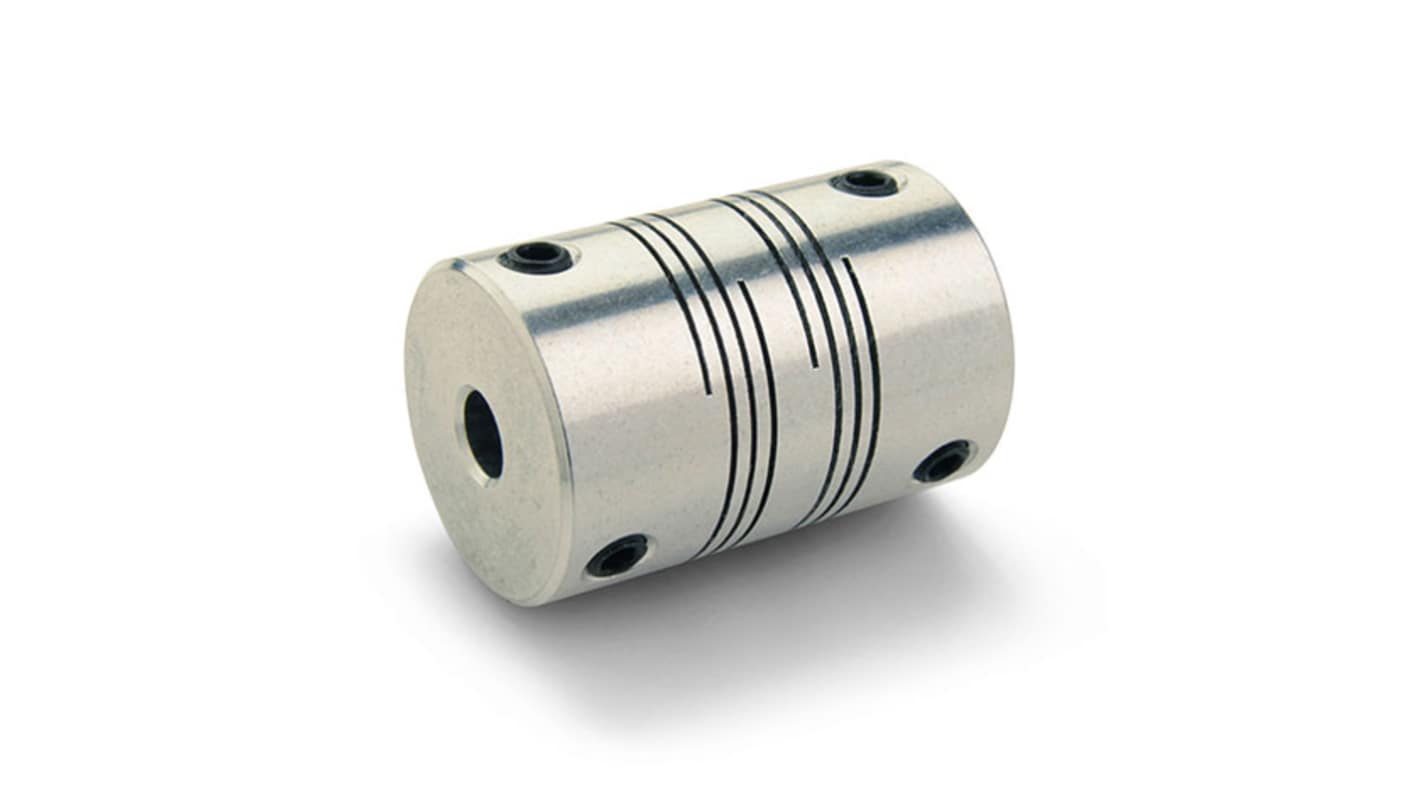

Ruland Beam Coupling, 15.9mm Outside Diameter, 5mm Bore, 25.4mm Length Flexible Beam Coupling
- RS Stock No.:
- 593-667
- Mfr. Part No.:
- FSMR16-5-5-A
- Brand:
- Ruland
Subtotal (1 unit)*
£44.88
(exc. VAT)
£53.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.88 |
*price indicative
- RS Stock No.:
- 593-667
- Mfr. Part No.:
- FSMR16-5-5-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Coupling Types | Beam Coupling | |
| Bore | 5mm | |
| Outside Diameter | 15.9mm | |
| Length | 25.4mm | |
| Fastening Type | Set Screw | |
| Torque Rating | 1.47Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 5mm | ||
Outside Diameter 15.9mm | ||
Length 25.4mm | ||
Fastening Type Set Screw | ||
Torque Rating 1.47Nm | ||
- COO (Country of Origin):
- US
The Ruland Six beam coupling is engineered for precision in light-duty power transmission applications, ensuring reliable performance while connecting servo motors to lead screws. Constructed from high-grade 7075 aluminium, it combines lightweight characteristics with superior torque capacity. Its unique design features zero backlash and balanced operation, making it ideal for high-speed applications of up to 6,000 RPM. Manufactured under stringent quality controls in the USA, this component adheres to RoHS3 and REACH standards, offering peace of mind regarding compliance and environmental safety. The coupling also showcases advanced machining techniques that enhance strength, reduce windup, and allow for larger body sizes compared to traditional couplings, thereby leading to improved overall performance.
Engineered with two sets of spiral cuts for heightened torque capacity
Installation instructions provide clear guidance for optimal use
Metric hardware ensures compatibility with a wide range of applications
Dynamic and static torque ratings guide operational capabilities
Designed for precision with specific misalignment tolerances
Manufactured in the USA, supporting local industry and strict quality controls
Installation instructions provide clear guidance for optimal use
Metric hardware ensures compatibility with a wide range of applications
Dynamic and static torque ratings guide operational capabilities
Designed for precision with specific misalignment tolerances
Manufactured in the USA, supporting local industry and strict quality controls
