Ruland Bellows Coupling, 50.8mm Outside Diameter, 15 mm, 22 mm Bore, 61.3mm Length Flexible Coupling
- RS Stock No.:
- 593-520
- Mfr. Part No.:
- MBC51-22-15-A
- Brand:
- Ruland
Subtotal (1 unit)*
£167.05
(exc. VAT)
£200.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £167.05 |
*price indicative
- RS Stock No.:
- 593-520
- Mfr. Part No.:
- MBC51-22-15-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Bellows Coupling | |
Bore | 15 mm, 22 mm | |
Outside Diameter | 50.8mm | |
Length | 61.3mm | |
Fastening Type | Clamp | |
Torque Rating | 45.2Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Bellows Coupling | ||
Bore 15 mm, 22 mm | ||
Outside Diameter 50.8mm | ||
Length 61.3mm | ||
Fastening Type Clamp | ||
Torque Rating 45.2Nm | ||
- COO (Country of Origin):
- US

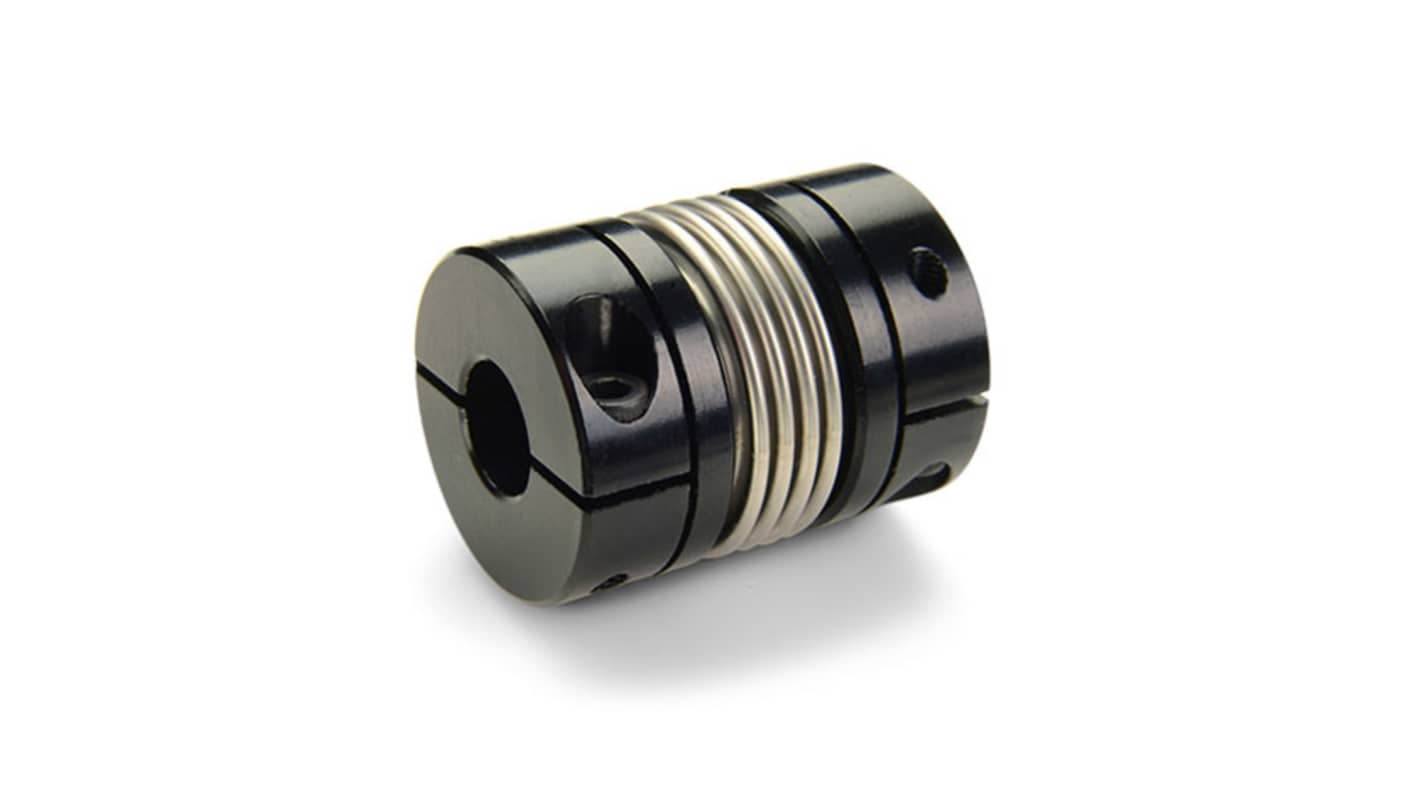

The Ruland High Stiffness Bellows Coupling offers a sophisticated solution for precision positioning applications. Engineered with a balanced design, it effectively reduces vibration even at high speeds of up to 10,000 RPM. With its unique configuration of two anodised aluminium hubs and a stainless steel bellows, this coupling is not only lightweight and low inertia but also exceptionally robust. The product's fewer convolutions permit greater torsional stiffness while accommodating various forms of misalignment. Manufactured meticulously in an ISO 9001:2015 certified facility, it adheres to stringent quality controls and is compliant with RoHS3 and REACH standards, ensuring reliability and safety in demanding environments.
Utilises a balanced design for minimal vibration
Constructed for high stiffness and durability
Optimised for precision positioning applications
Allows for diverse misalignment capabilities
Manufactured to strict quality assurance standards
Lightweight construction enhances performance efficiency
Complies with environmental and safety regulations
Constructed for high stiffness and durability
Optimised for precision positioning applications
Allows for diverse misalignment capabilities
Manufactured to strict quality assurance standards
Lightweight construction enhances performance efficiency
Complies with environmental and safety regulations
