Ruland Beam Coupling, 38.1mm Outside Diameter, 11 mm, 14 mm Bore, 57.2mm Length Flexible Beam Coupling
- RS Stock No.:
- 593-228
- Mfr. Part No.:
- FSMR38-14-11-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£280.86
(exc. VAT)
£337.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £280.86 |
*price indicative
- RS Stock No.:
- 593-228
- Mfr. Part No.:
- FSMR38-14-11-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam Coupling | |
Bore | 11 mm, 14 mm | |
Outside Diameter | 38.1mm | |
Length | 57.2mm | |
Fastening Type | Set Screw | |
Torque Rating | 21.52Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 11 mm, 14 mm | ||
Outside Diameter 38.1mm | ||
Length 57.2mm | ||
Fastening Type Set Screw | ||
Torque Rating 21.52Nm | ||
- COO (Country of Origin):
- US

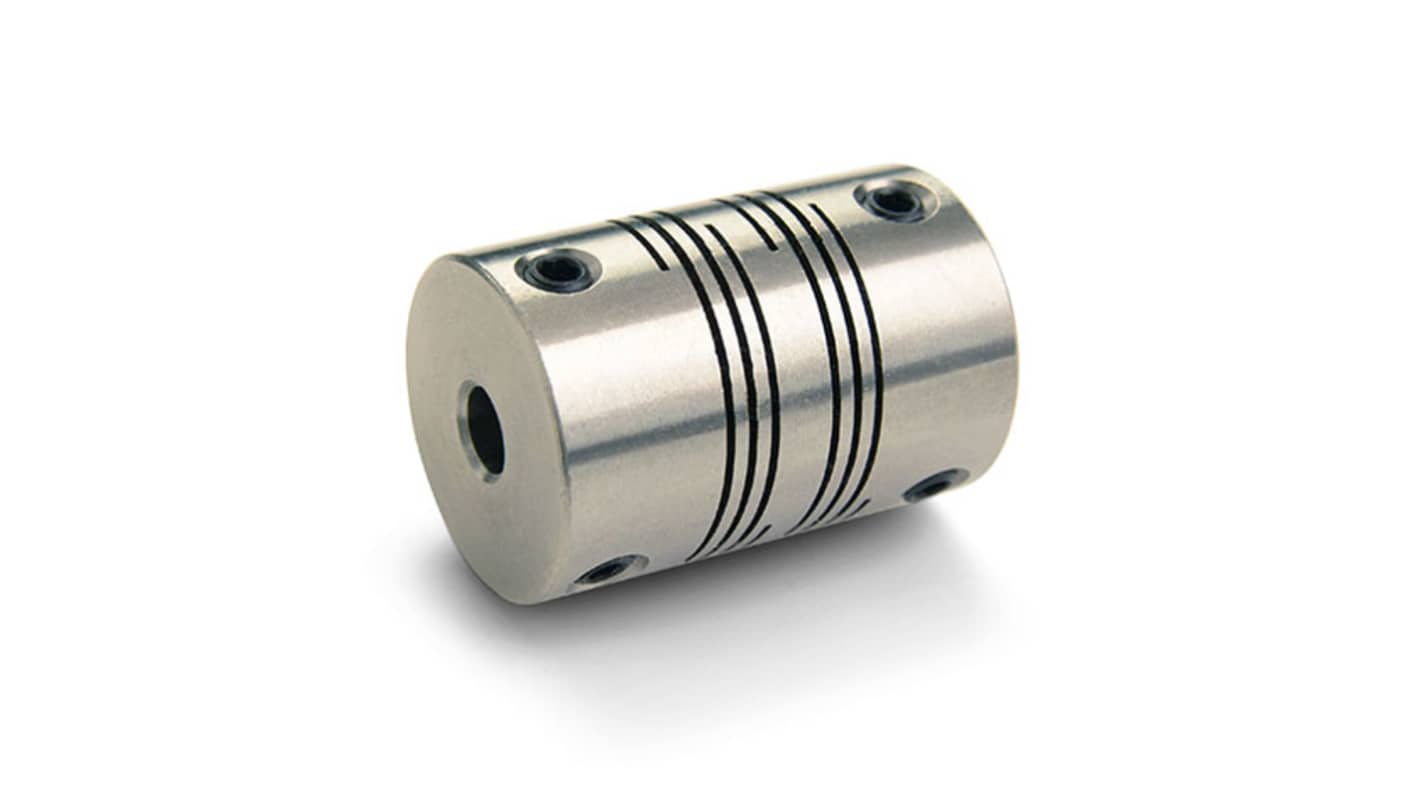

The Ruland Six beam coupling offers exceptional performance for light duty power transmission applications, seamlessly connecting servo motors to lead screws. Engineered from a single piece of 303 stainless steel, the coupling delivers a zero-backlash design alongside a balanced structure, ensuring reduced vibration and reliable operation at speeds up to 6,000 RPM. Its intricate construction incorporates two sets of spiral cuts, which enhance torque capacity and minimise windup, setting it apart from traditional couplings. With stringent manufacturing processes in place at the Marlborough, MA factory, each product is crafted to the highest standards, ensuring quality and durability. Whether you're tackling challenging alignment scenarios or require efficient torque transmission, this coupling serves as an ideal solution for modern machinery setups.
Manufactured in North America, adhering to strict quality controls
Features a user-friendly set screw style for easy installation
Meets RoHS3 and REACH compliance standards
Capable of accommodating significant angular and parallel misalignment
Provides reliable performance across a wide temperature range
Each coupling is subjected to rigorous testing beyond DIN 912 12.9 standards
Features a user-friendly set screw style for easy installation
Meets RoHS3 and REACH compliance standards
Capable of accommodating significant angular and parallel misalignment
Provides reliable performance across a wide temperature range
Each coupling is subjected to rigorous testing beyond DIN 912 12.9 standards
