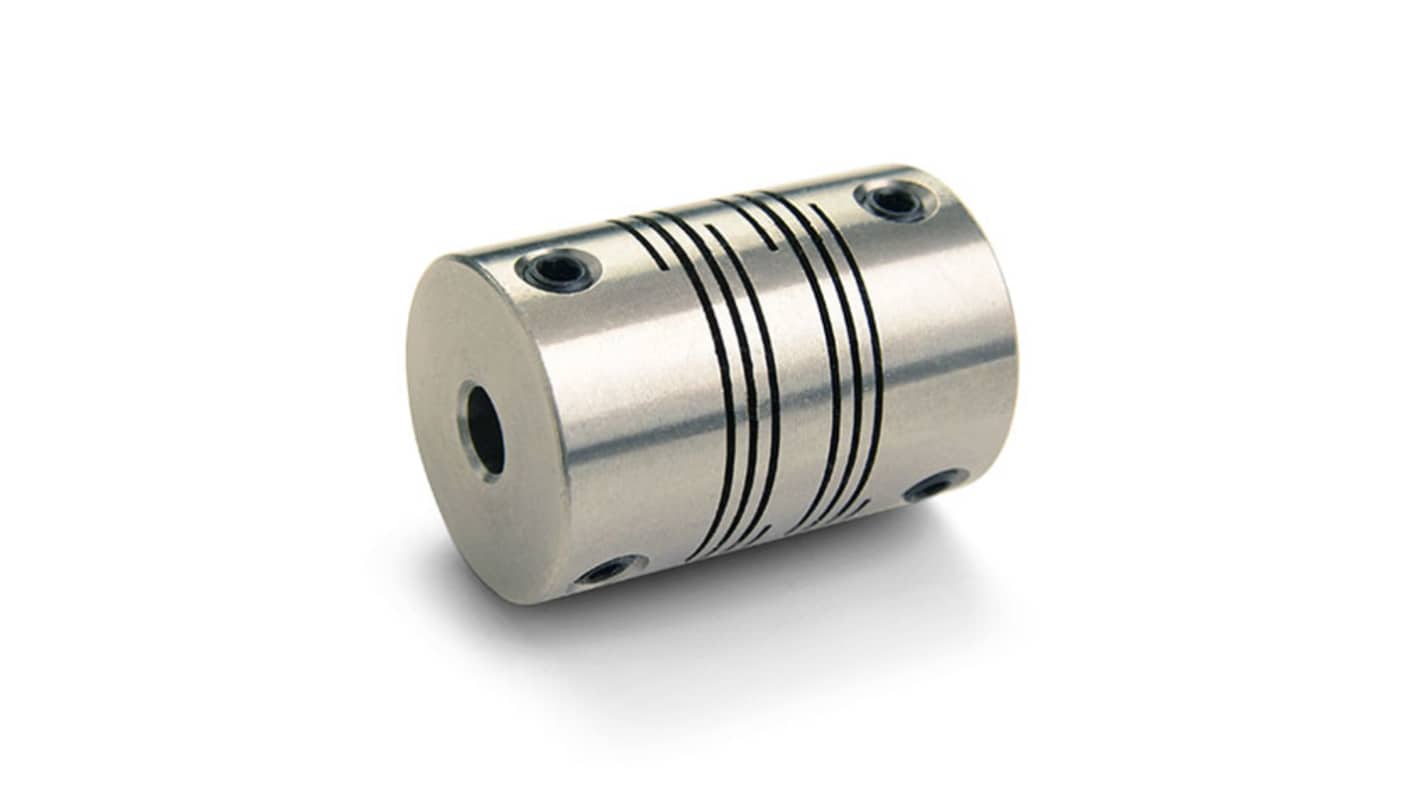

Ruland Beam Coupling, 38.1mm Outside Diameter, 14 mm, 19 mm Bore, 57.2mm Length Flexible Beam Coupling
- RS Stock No.:
- 591-182
- Mfr. Part No.:
- FSMR38-19-14-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£280.86
(exc. VAT)
£337.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £280.86 |
*price indicative
- RS Stock No.:
- 591-182
- Mfr. Part No.:
- FSMR38-19-14-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 14 mm, 19 mm | |
Coupling Types | Beam Coupling | |
Outside Diameter | 38.1mm | |
Length | 57.2mm | |
Fastening Type | Set Screw | |
Torque Rating | 16.42Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 14 mm, 19 mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 38.1mm | ||
Length 57.2mm | ||
Fastening Type Set Screw | ||
Torque Rating 16.42Nm | ||
- COO (Country of Origin):
- US
The Ruland Six beam coupling boasts a set screw style design, ideal for light duty power transmission applications. Machined from a single piece of 303 stainless steel, it is engineered for superior torque capacity and a balanced configuration, ensuring reduced vibration even at high speeds of up to 6,000 RPM. The coupling features precision-engineered spiral cuts, which enhance its performance over typical single or four beam couplings by allowing for greater body sizes and increased torque holding capabilities. Its zero-backlash design significantly minimises operational slippage, making it a reliable choice for connecting servo motors to lead screws. Manufactured under stringent controls in Marlborough, MA, this product adheres to high-quality standards, offering peace of mind for users in demanding environments.
Features precision spiral cuts for improved torque capacity and performance
Manufactured to exceed DIN 912 12.9 standards for maximum torque capabilities
Designed for seamless integration in light duty power transmission applications
Metric hardware allows for easy compatibility with European standards
RoHS3 and REACH compliant, making it a responsible choice for environmentally-conscious consumers
Manufactured to exceed DIN 912 12.9 standards for maximum torque capabilities
Designed for seamless integration in light duty power transmission applications
Metric hardware allows for easy compatibility with European standards
RoHS3 and REACH compliant, making it a responsible choice for environmentally-conscious consumers
