Ruland Bellows Coupling, 50.8mm Outside Diameter, 18 mm, 22 mm Bore, 61.3mm Length Bellows Coupling
- RS Stock No.:
- 590-974
- Mfr. Part No.:
- MBCK51-22-18-A
- Brand:
- Ruland
Subtotal (1 unit)*
£188.40
(exc. VAT)
£226.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £188.40 |
*price indicative
- RS Stock No.:
- 590-974
- Mfr. Part No.:
- MBCK51-22-18-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 18 mm, 22 mm | |
Coupling Types | Bellows Coupling | |
Outside Diameter | 50.8mm | |
Length | 61.3mm | |
Fastening Type | Clamp | |
Torque Rating | 45.2Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 18 mm, 22 mm | ||
Coupling Types Bellows Coupling | ||
Outside Diameter 50.8mm | ||
Length 61.3mm | ||
Fastening Type Clamp | ||
Torque Rating 45.2Nm | ||
- COO (Country of Origin):
- US

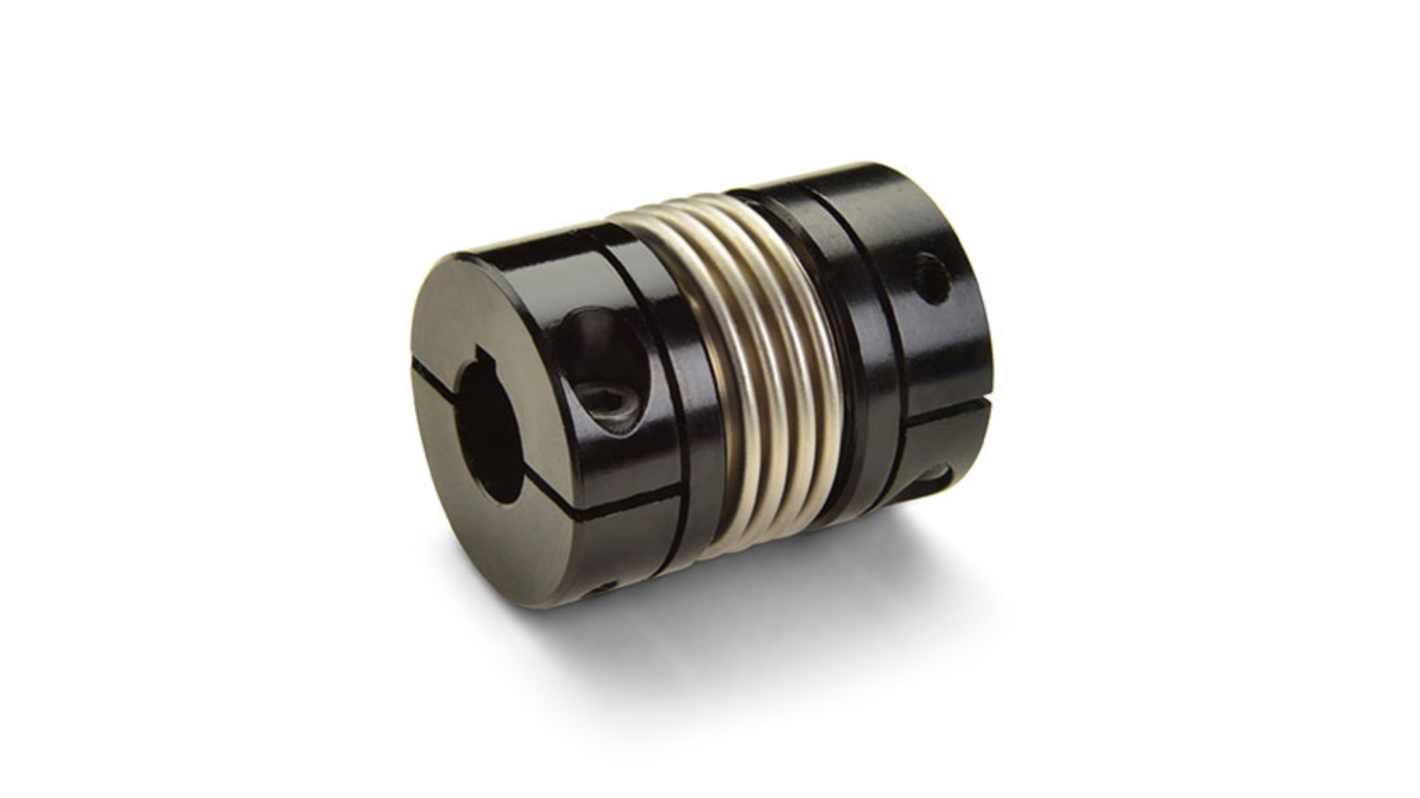

The Ruland High Stiffness Bellows Coupling has fewer convolutions than comparably sized increased misalignment styles, providing increased torsional stiffness, making it ideal for precision positioning applications. It is comprised of two anodized aluminium hubs and a stainless steel bellows for a lightweight and low inertia design. Engineered with a balanced design, it reduces vibration at high speeds up to 10,000 RPM. The thin walls of the bellows flex while remaining rigid under torsional loads, accommodating all forms of misalignment.
Machined from meticulously selected bar stock that is sourced exclusively from North American mills
RoHS compliant
Zero backlash
Balanced design
Conflict Minerals compliant
Epoxy bellows attachment
RoHS compliant
Zero backlash
Balanced design
Conflict Minerals compliant
Epoxy bellows attachment
