RS PRO Beam Coupling, 19.05mm Outside Diameter, 6mm Bore, 31.75mm Length Flexible Beam Coupling
- RS Stock No.:
- 132-168
- Brand:
- RS PRO
Subtotal (1 unit)*
£29.29
(exc. VAT)
£35.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 192 unit(s) shipping from 27 October 2025
- Plus 999,999,807 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.29 |
*price indicative
- RS Stock No.:
- 132-168
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bore | 6mm | |
| Coupling Types | Beam Coupling | |
| Outside Diameter | 19.05mm | |
| Length | 31.75mm | |
| Fastening Type | Clamping | |
| Bellows Material | Aluminium | |
| Series | BCC | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Bore 6mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 19.05mm | ||
Length 31.75mm | ||
Fastening Type Clamping | ||
Bellows Material Aluminium | ||
Series BCC | ||
- COO (Country of Origin):
- CN

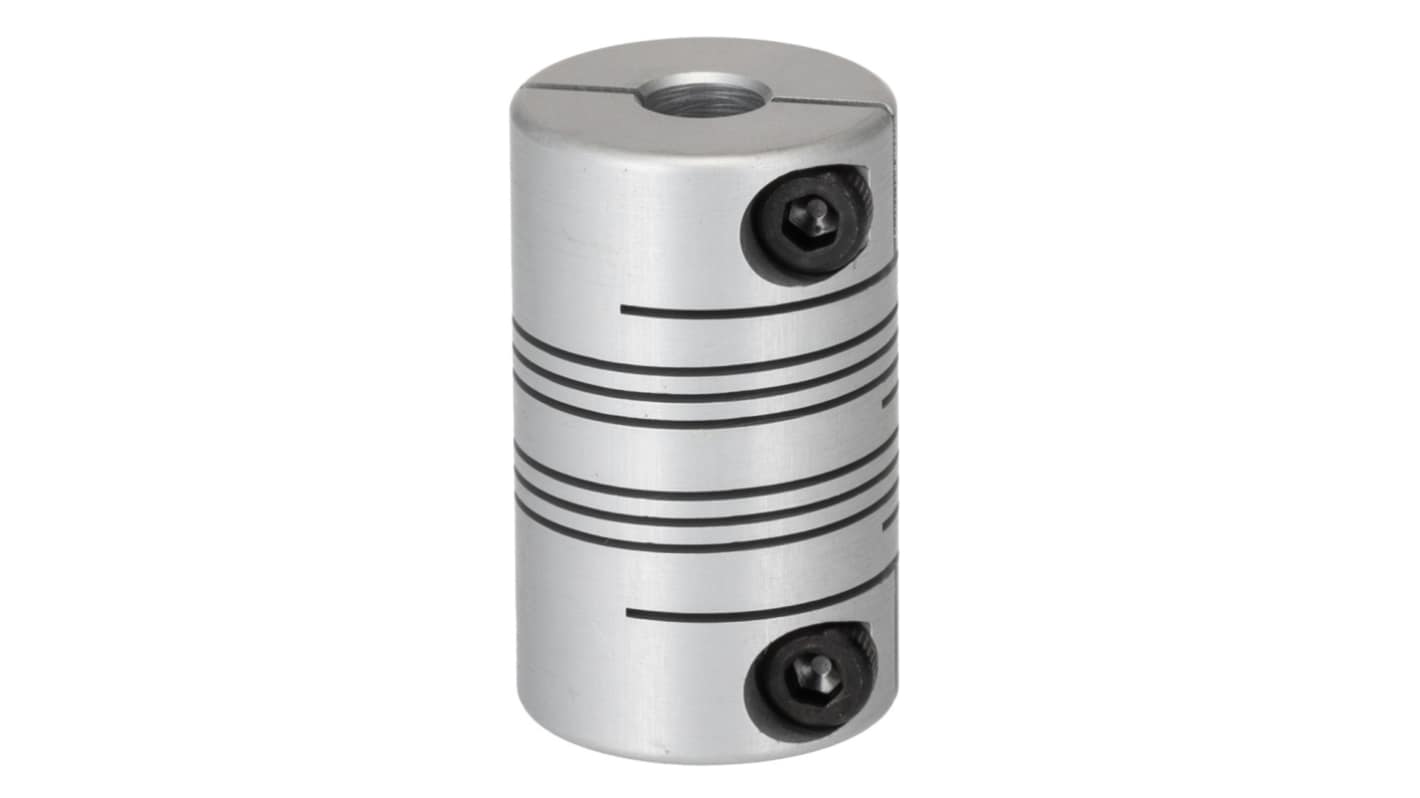

RS PRO 6mm Aluminium BCC Flexible Beam Coupling
A BCC series six beam coupling for use where a degree of motion is required between shafts. Each coupling is manufactured as a single piece eliminating mechanical joints and possible failure points.
The clamp fastening beam coupling is constructed from Aluminium for strength and will delivery increased torque capacity with higher torsional stiffness. The BCC series coupling is designed with two sets of cuts around the centre accommodating a higher level of parallel misalignment compared to single beam couplings.
The BCC series coupling features a M3 socket head cap screw at each end for easy installation.
Features and Benefits
BCC six beam coupling
6mm bore
19.05mm outer diameter
22.23mm maximum clearance diameter
31.75mm length
Clamp fastening
One piece Aluminium 7075 A
M3 socket screws
+0.025 mm / -0.000 mm bore tolerance
+0.000 mm / -0.013 mm recommended shaft tolerance
