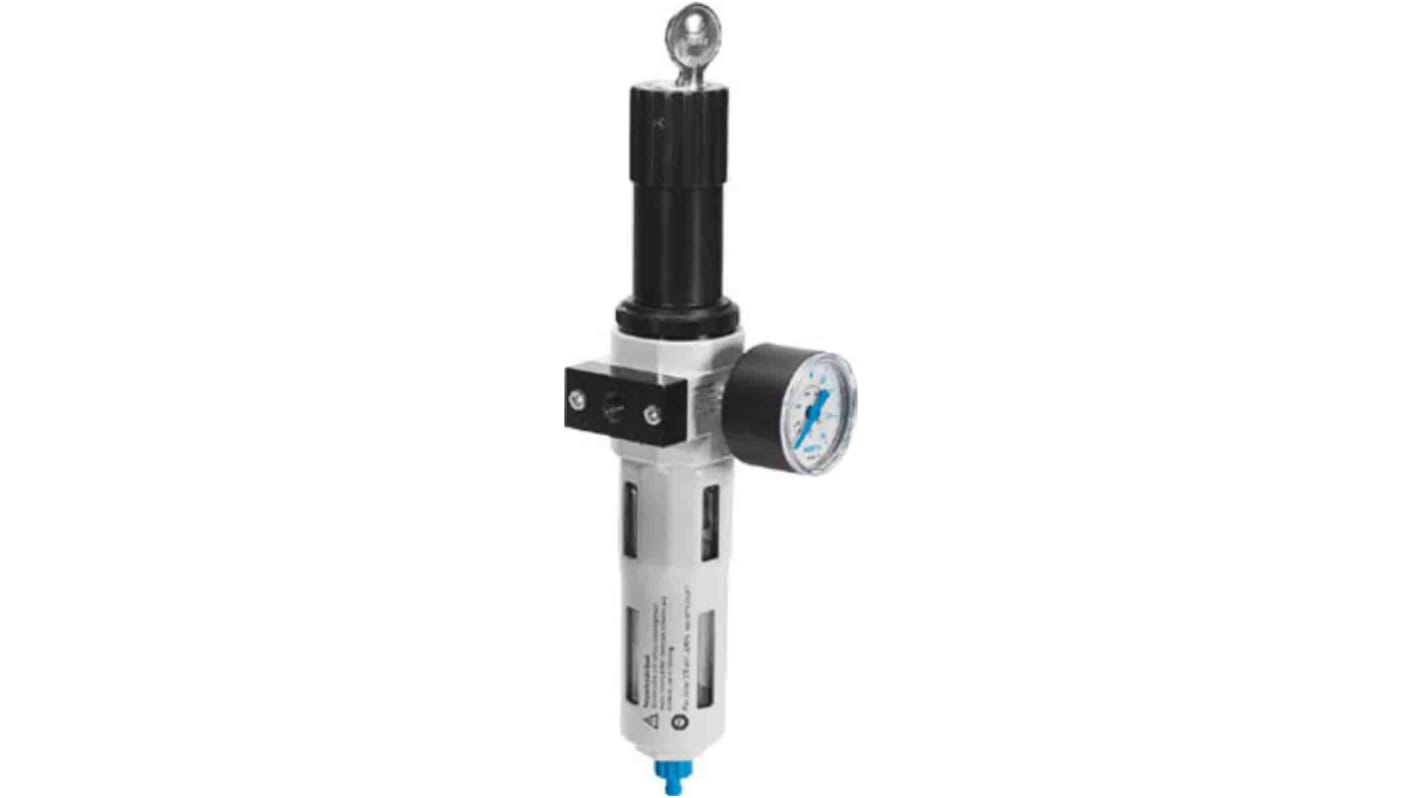

Festo D Filter Regulator, 40 μm, 1/2 in G, Manual, 12 bar, 194756
- RS Stock No.:
- 202-9755
- Mfr. Part No.:
- LFRS-1/2-D-MIDI
- Brand:
- Festo
Subtotal (1 unit)*
£286.99
(exc. VAT)
£344.39
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £286.99 |
*price indicative
- RS Stock No.:
- 202-9755
- Mfr. Part No.:
- LFRS-1/2-D-MIDI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Size | 1/2 in G | |
| Product Type | Filter Regulator | |
| Maximum Flow Rate | 3400L/min | |
| Maximum Operating Pressure | 12 bar | |
| Series | D | |
| Connection Thread Standard | G | |
| Drain Type | Manual | |
| Filtration Size | 40μm | |
| Pressure Gauge Port Size | 1/2 in | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Bowl Material | Polycarbonate | |
| Pressure Gauge Port Thread Standard | G | |
| Pressure Setting Range | 0.5 to 12 bar | |
| Model Number | 194756 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Port Size 1/2 in G | ||
Product Type Filter Regulator | ||
Maximum Flow Rate 3400L/min | ||
Maximum Operating Pressure 12 bar | ||
Series D | ||
Connection Thread Standard G | ||
Drain Type Manual | ||
Filtration Size 40μm | ||
Pressure Gauge Port Size 1/2 in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Bowl Material Polycarbonate | ||
Pressure Gauge Port Thread Standard G | ||
Pressure Setting Range 0.5 to 12 bar | ||
Model Number 194756 | ||
- COO (Country of Origin):
- HU
The Festo D series filter regulator has a G1/2 pneumatic connection with metal bowl guard and pressure gauge. It has 40 μm degree of filtration manual condensate drain.
Size -Midi
Actuator lock=Rotary knob with integrated lock
Assembly position=Vertical +/- 5°
