Festo DB Filter Regulator, 5 μm, 1/4 in G, Semi Automatic, 7 bar
- RS Stock No.:
- 202-9702
- Mfr. Part No.:
- LFR-1/4-DB-7-5M-MINI-H
- Brand:
- Festo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£89.53
(exc. VAT)
£107.44
(inc. VAT)
- RS Stock No.:
- 202-9702
- Mfr. Part No.:
- LFR-1/4-DB-7-5M-MINI-H
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Size | 1/4 in G | |
| Product Type | Filter Regulator | |
| Maximum Operating Pressure | 7 bar | |
| Maximum Flow Rate | 1000L/min | |
| Connection Thread Standard | G | |
| Series | DB | |
| Drain Type | Semi Automatic | |
| Filtration Size | 5μm | |
| Pressure Gauge Port Size | 1/8 in G | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 44mm | |
| Standards/Approvals | RoHS | |
| Pressure Setting Range | 0.5 to 7 bar | |
| Pressure Gauge Port Thread Standard | G 1/8 | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Port Size 1/4 in G | ||
Product Type Filter Regulator | ||
Maximum Operating Pressure 7 bar | ||
Maximum Flow Rate 1000L/min | ||
Connection Thread Standard G | ||
Series DB | ||
Drain Type Semi Automatic | ||
Filtration Size 5μm | ||
Pressure Gauge Port Size 1/8 in G | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Overall Width 44mm | ||
Standards/Approvals RoHS | ||
Pressure Setting Range 0.5 to 7 bar | ||
Pressure Gauge Port Thread Standard G 1/8 | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- HU

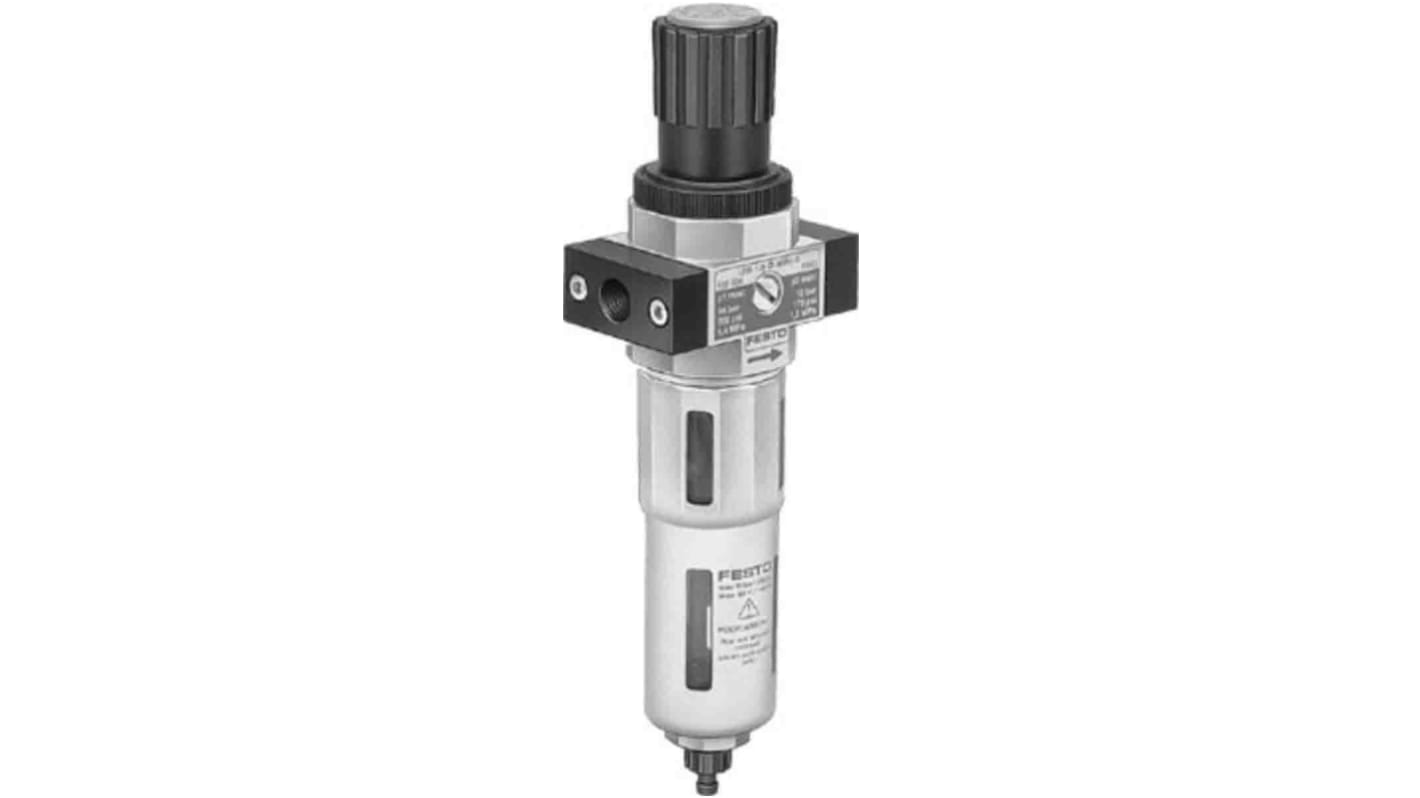

The Festo DB series filter regulator has a G1/4 pneumatic connection with metal bowl guard and with pressure gauge. It has 5 μm degree of filtration with semi-automatic condensate drain.
Size -Mini
Actuator lock=Rotary knob with lock
