Festo G 3/8 Filter Regulator, 40 μm, G 1/2, Automatic, 12 bar, 530224

View all Filter Regulators

Subtotal (1 unit)*

£414.20

(exc. VAT)

£497.04

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 +£414.20

*price indicative

Sponsored
Image of Festo MS-Series Product
Image of Festo Logo
MS-Series Products
Discover Festo's innovative MS-Series range of products, designed for optimal performance in automation. Enhance your industrial processes today.
Browse the range
RS Stock No.:
202-9354
Mfr. Part No.:
MSB6-1/2:J2D1A1-WP
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Filter Regulator

Port Size

G 1/2

Maximum Operating Pressure

12 bar

Maximum Flow Rate

3100L/min

Series

G 3/8

Drain Type

Automatic

Filtration Size

40μm

Overall Length

186mm

Minimum Operating Temperature

5°C

Maximum Operating Temperature

60°C

Overall Height

303.5mm

Standards/Approvals

ISO8573-1:2010 (7:4:-), RoHS, ISO8573-1:2010 (7:4:4)

Overall Width

100mm

Pressure Setting Range

4.5 to 12 bar

Model Number

530224

COO (Country of Origin):
HU

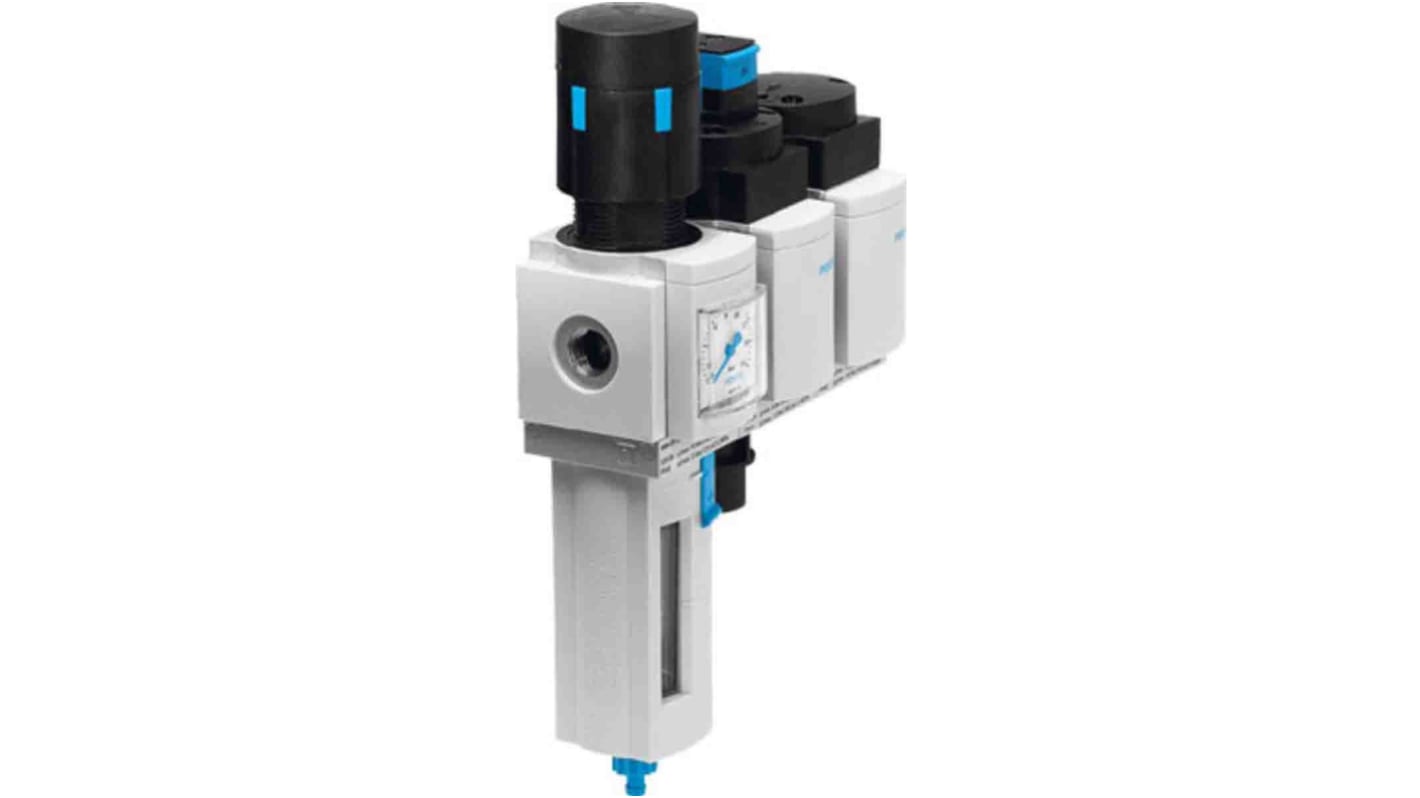

The Festo service unit combination MSB6-1/2:J2D1A1-WP Comprising filter regulator, electrical on-off valve, pneumatic soft-start valve, wall mounting plate. Maximum output pressure 12 bar, 40 μm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard., fully automatic condensate drain., flow direction from left to right.

Size Maxi

Series D

Actuator lock Rotary knob with lock

Assembly position Vertical +/- 5°

Grade of filtration 40 μm
