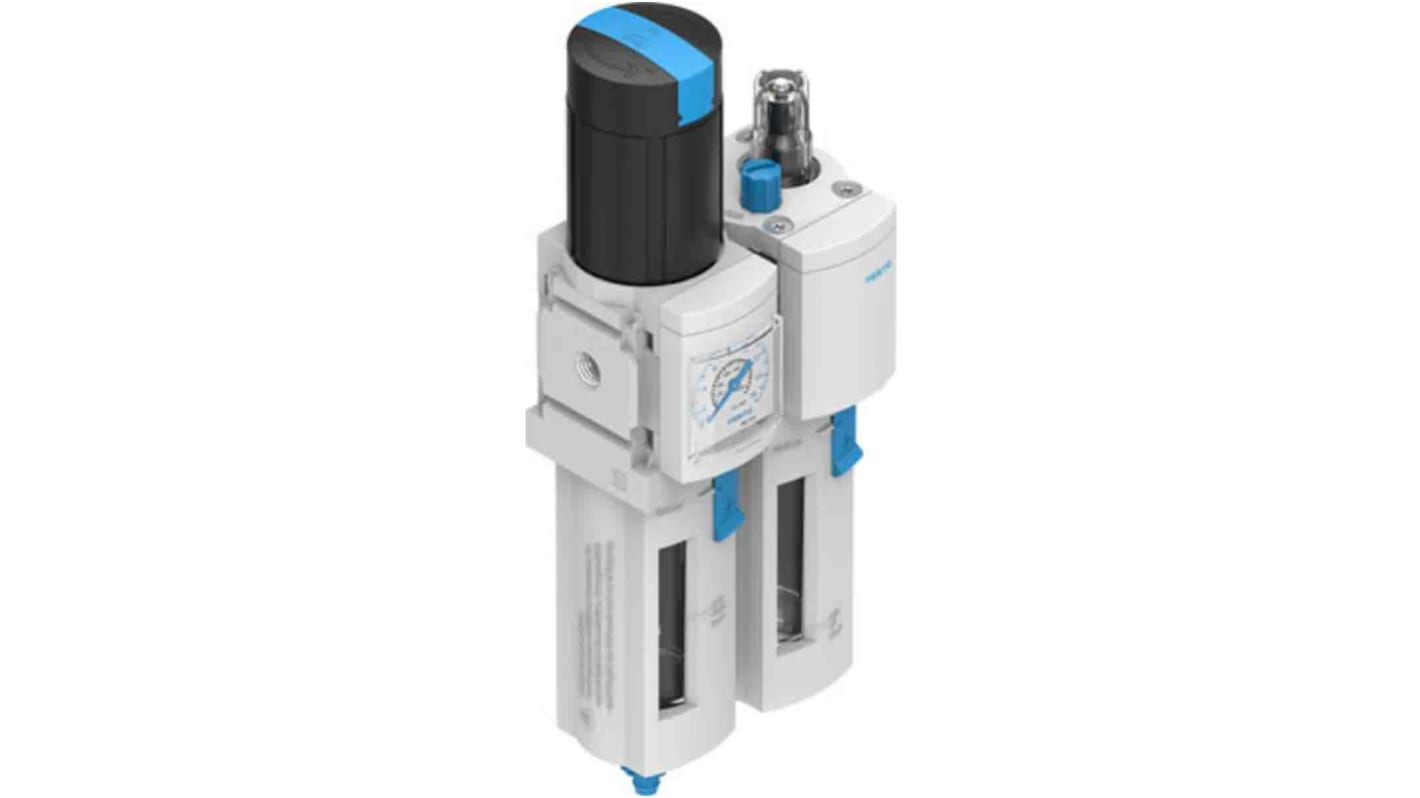

Festo MS Plastic Filter Regulator, 40μm, G 1/4, Manual, 14 bar, 531109
- RS Stock No.:
- 202-9316
- Mfr. Part No.:
- MSB4-1/4-FRC1:J5M1
- Brand:
- Festo
Subtotal (1 unit)*
£127.72
(exc. VAT)
£153.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £127.72 |
*price indicative
- RS Stock No.:
- 202-9316
- Mfr. Part No.:
- MSB4-1/4-FRC1:J5M1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Port Connection | G 1/4 | |
Maximum Operating Pressure | 14 bar | |
Manufacturer Series | MS | |
Drain Type | Manual | |
Filtration Size | 40µm | |
Maximum Ambient Operating Temperature | +60°C | |
Minimum Process Operating Temperature | -10°C | |
Minimum Operating Pressure | 1.5bar | |
Bowl Material | Plastic | |
Model Number | 531109 | |
Ambient Operating Temperature Range | -10 → +60°C | |
Process Operating Temperature Range | -10 → +60°C | |
Maximum Process Operating Temperature | +60°C | |
Minimum Ambient Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Operating Pressure 14 bar | ||
Manufacturer Series MS | ||
Drain Type Manual | ||
Filtration Size 40µm | ||
Maximum Ambient Operating Temperature +60°C | ||
Minimum Process Operating Temperature -10°C | ||
Minimum Operating Pressure 1.5bar | ||
Bowl Material Plastic | ||
Model Number 531109 | ||
Ambient Operating Temperature Range -10 → +60°C | ||
Process Operating Temperature Range -10 → +60°C | ||
Maximum Process Operating Temperature +60°C | ||
Minimum Ambient Operating Temperature -10°C | ||
- COO (Country of Origin):
- HU
Festo Series MS Filter Regulator, G 1/4 Port Connection, 14Bar Maximum Operating Pressure - MSB4-1/4-FRC1:J5M1, Numeric Part Number: 531109
This filter regulator is an essential component designed for efficient control of air pressure in pneumatic systems. With a compact design and robust construction, this high-temperature filter regulator ensures optimal performance even in demanding environments. It features manual drainage for easy maintenance and offers a filtration size of 40μm, making it suitable for a variety of applications requiring reliable air quality management.
Features & Benefits
• Operating pressure ranges from 1.5 bar to 14 bar
• Manual drain feature for straightforward maintenance
• 40μm filtration size for effective air purification
• Pressure gauge display for accurate monitoring
• Compact and robust design supports vertical mounting
• Compatible with lubricated operation for enhanced durability
• Manual drain feature for straightforward maintenance
• 40μm filtration size for effective air purification
• Pressure gauge display for accurate monitoring
• Compact and robust design supports vertical mounting
• Compatible with lubricated operation for enhanced durability
Applications
• Used in automation systems requiring consistent air pressure
• Suitable for compressed air treatment in pneumatic
• Ideal for use in high-temperature working environments
• Effective in systems using inert gases
• Suitable for compressed air treatment in pneumatic
• Ideal for use in high-temperature working environments
• Effective in systems using inert gases
What is the maximum ambient operating temperature for this device?
It operates effectively within an ambient temperature range of -10°C to +60°C, making it suitable for various environments without compromising performance.
Can this device accommodate lubricated operation?
Yes, lubricated operation is possible, and it is required to ensure optimal functioning when using this filter regulator.
How often should the condensate drain be manually rotated?
The drain should be checked and rotated as needed to maintain clean operation and prevent blockages, especially in high-humidity environments.
What type of materials are used in its construction?
The body is made of die-cast aluminium, while the bowl is constructed from durable plastic, ensuring longevity and resistance to corrosion.
