Festo G 1/4 Filter Regulator, 40 μm, 1/4 in G, Manual, 16 bar, 192631

View all Filter Regulators

Subtotal (1 unit)*

£144.12

(exc. VAT)

£172.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£144.12

*price indicative

RS Stock No.:
202-9245
Mfr. Part No.:
FRC-1/4-D-7-O-MINI
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Size

1/4 in G

Product Type

Filter Regulator

Maximum Flow Rate

1300L/min

Maximum Operating Pressure

16 bar

Series

G 1/4

Drain Type

Manual

Filtration Size

40μm

Pressure Gauge Port Size

Prepared For G1/8

Overall Length

104mm

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Overall Height

211mm

Overall Width

76mm

Bowl Material

Polycarbonate

Model Number

192631

Pressure Setting Range

0.5 to 7 bar

COO (Country of Origin):
HU

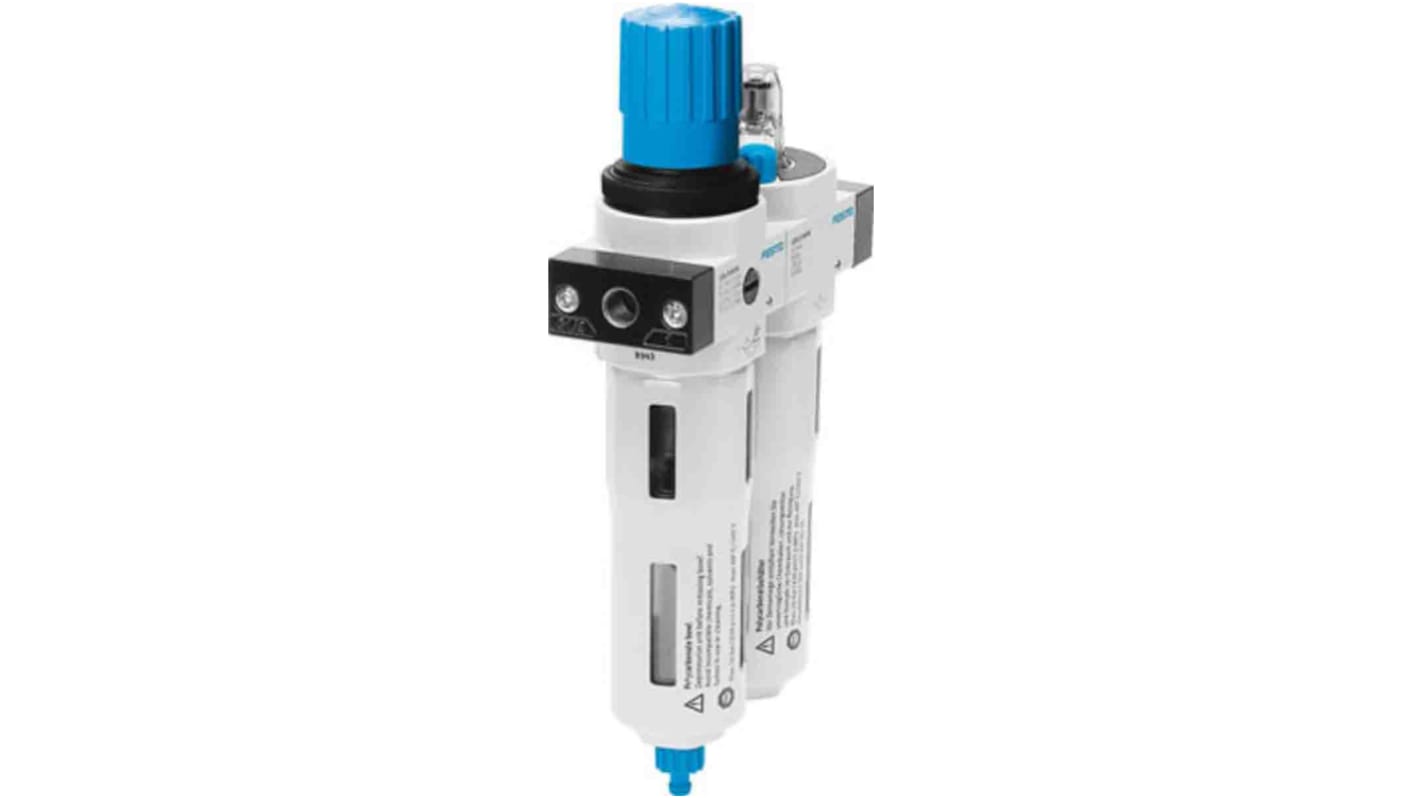

The Festo service unit FRC-1/4-D-7-O-MINI Filter regulator/lubricator combination has maximum output pressure 7 bar, 40 μm filter, with metal bowl guard. It has manual condensate drain. Without pressure gauge

Size Maxi

Series D

Actuator lock Rotary knob with lock

Assembly position Vertical +/- 5°

Grade of filtration 40 μm
