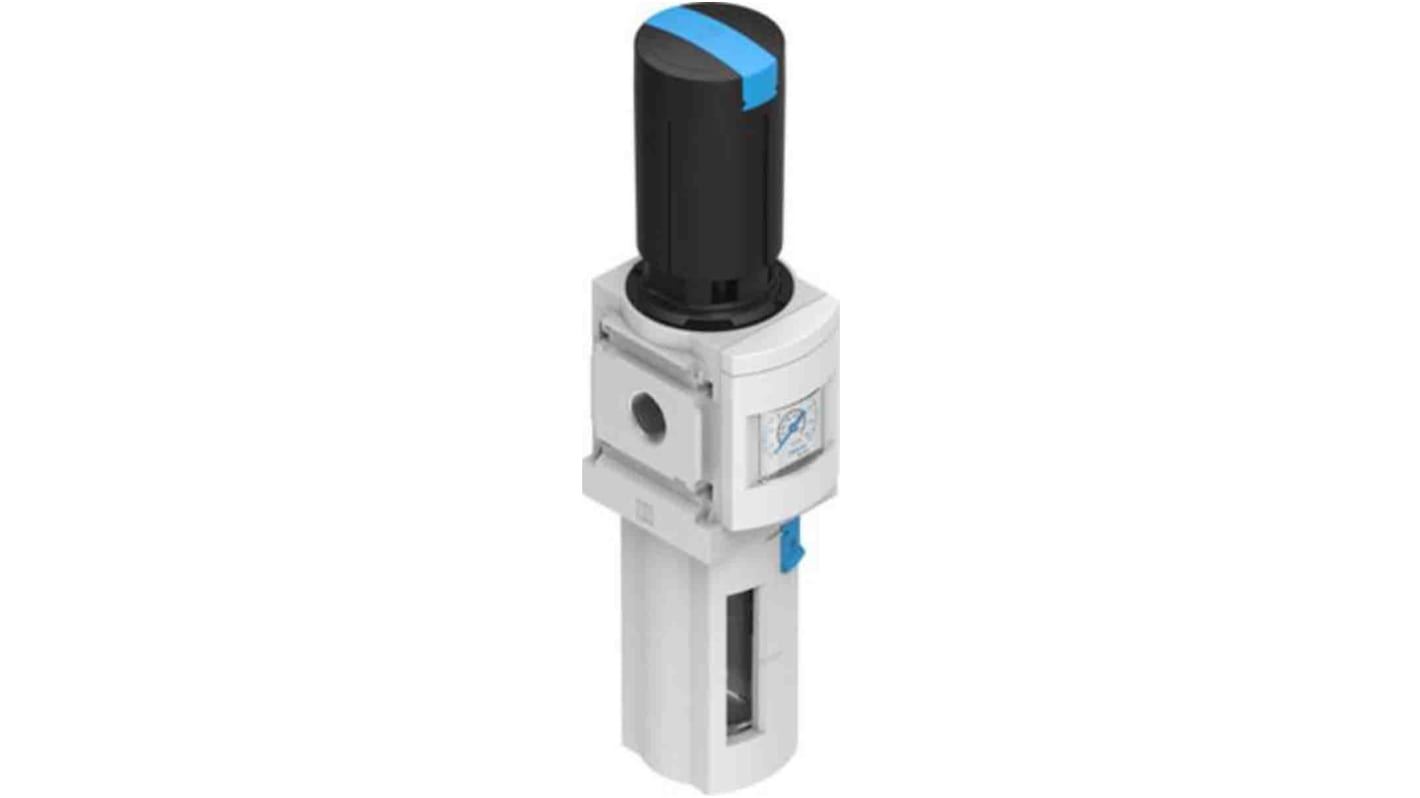

Festo G 1/2 Filter Regulator, 40 μm, 1/4 in G, Manual, 20 bar, 529200

RS Stock No.:: 202-4324
Mfr. Part No.:: MS6-LFR-1/4-D6-ERM-AS
Brand:: Festo

Festo G 1/2 Filter Regulator, 40 μm, 1/4 in G, Manual, 20 bar, 529200

Subtotal (1 unit)*

£87.28

(exc. VAT)

£104.74

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 2 unit(s) shipping from 09 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£87.28

*price indicative

MS-Series Products

Discover Festo's innovative MS-Series range of products, designed for optimal performance in automation. Enhance your industrial processes today.

Browse the range

RS Stock No.:: 202-4324
Mfr. Part No.:: MS6-LFR-1/4-D6-ERM-AS
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Filter Regulator
	Port Size	1/4 in G
	Maximum Operating Pressure	20 bar
	Maximum Flow Rate	2800L/min
	Series	G 1/2
	Connection Thread Standard	G
	Drain Type	Manual
	Filtration Size	40μm
	Pressure Gauge Port Size	1/4 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	Conforms to RoHS, ISO8573-1:2010
	Model Number	529200
	Pressure Gauge Port Thread Standard	G
	Pressure Setting Range	0.3 to 7 bar
	Bowl Material	Plastic

	Select all
	Brand Festo
	Product Type Filter Regulator
	Port Size 1/4 in G
	Maximum Operating Pressure 20 bar
	Maximum Flow Rate 2800L/min
	Series G 1/2
	Connection Thread Standard G
	Drain Type Manual
	Filtration Size 40μm
	Pressure Gauge Port Size 1/4 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals Conforms to RoHS, ISO8573-1:2010
	Model Number 529200
	Pressure Gauge Port Thread Standard G
	Pressure Setting Range 0.3 to 7 bar
	Bowl Material Plastic

COO (Country of Origin):: HU

Festo Series MS Filter Regulator, G 1/4 Port Connection, 20 Bar Maximum Operating Pressure - MS6-LFR-1/4-D6-ERM-AS, Numeric Part Number: 529200

This filter regulator is designed for precise control of compressed air and inert gases in automation and mechanical systems. Featuring a robust design suitable for front panel or in-line installation, it caters to operational pressures ranging from 0.8 bar to 20 bar. This high-temperature filter regulator is equipped with a plastic bowl guard, ensuring durability even in demanding environments.

Features & Benefits

• Maintains constant output pressure for stable system performance

• Manual drain mechanism facilitates easy condensate removal

• Adjustable pressure regulation range from 0.3 bar to 7 bar

• High filtration efficiency with a size of 40μm

• Capable of handling ambient temperatures between -10°C and +60°C

• Integrated pressure gauge provides clear pressure readings

Applications

• Used with pneumatic systems requiring precise pressure control

• Ideal for needing moderate corrosion resistance

• Utilised in environments with varying ambient temperatures

• Suitable for industries involving food processing and automation

What is the maximum operating pressure of this device?

The maximum operating pressure is 20 bar, ensuring efficient regulation and stability in high-demand applications.

How does the filtration size impact performance?

The 40μm filtration size effectively removes particulates from the air or gas stream, contributing to cleaner output and improved equipment longevity.

Can this regulator operate within extreme temperatures?

Yes, it operates effectively within a temperature range of -10°C to +60°C, making it suitable for both cold and warm environments.

What installation options are available for this model?

It can be mounted either on the front panel or installed in-line, providing flexibility for various system configurations.

How does the manual drain work in everyday use?

The manual drain feature allows users to easily rotate a knob to remove condensate, promoting effortless maintenance and optimal performance.
