This Festo combination unit of filter, regulator and lubricator is compact and lightweight. It's used together with a compressor to clean, oil and control the pressure of compressed air. The unit's filter cartridge is capable of removing air contaminants up to 40 microns in size and offers good particle separation at a high airflow rate. Its manually draining filter bowl is made from transparent polycarbonate with a removable metal housing. This means you can clearly see when the filter needs to be drained.

• Maximum operating pressure of 16 bar
• Maximum condensate volume of 43 cm³
• Standard nominal flow rate of 3400 l/min
• Rotary knob with lock
• G 1/2 port connection
• Pneumatic connector of 55 mm
• Vertical assembly position of +/- 5°
• Supplied with a pressure gauge
• Operating temperature range of -10°C to +60°C
• Midi size

• This product is part of the FESTO D range of compressed air preparation components with reinforced polyamide housings
• All the units in this series are freely compatible with each other
• D series components are designed to be space-saving and comprise all the equipment necessary for industrial air preparation

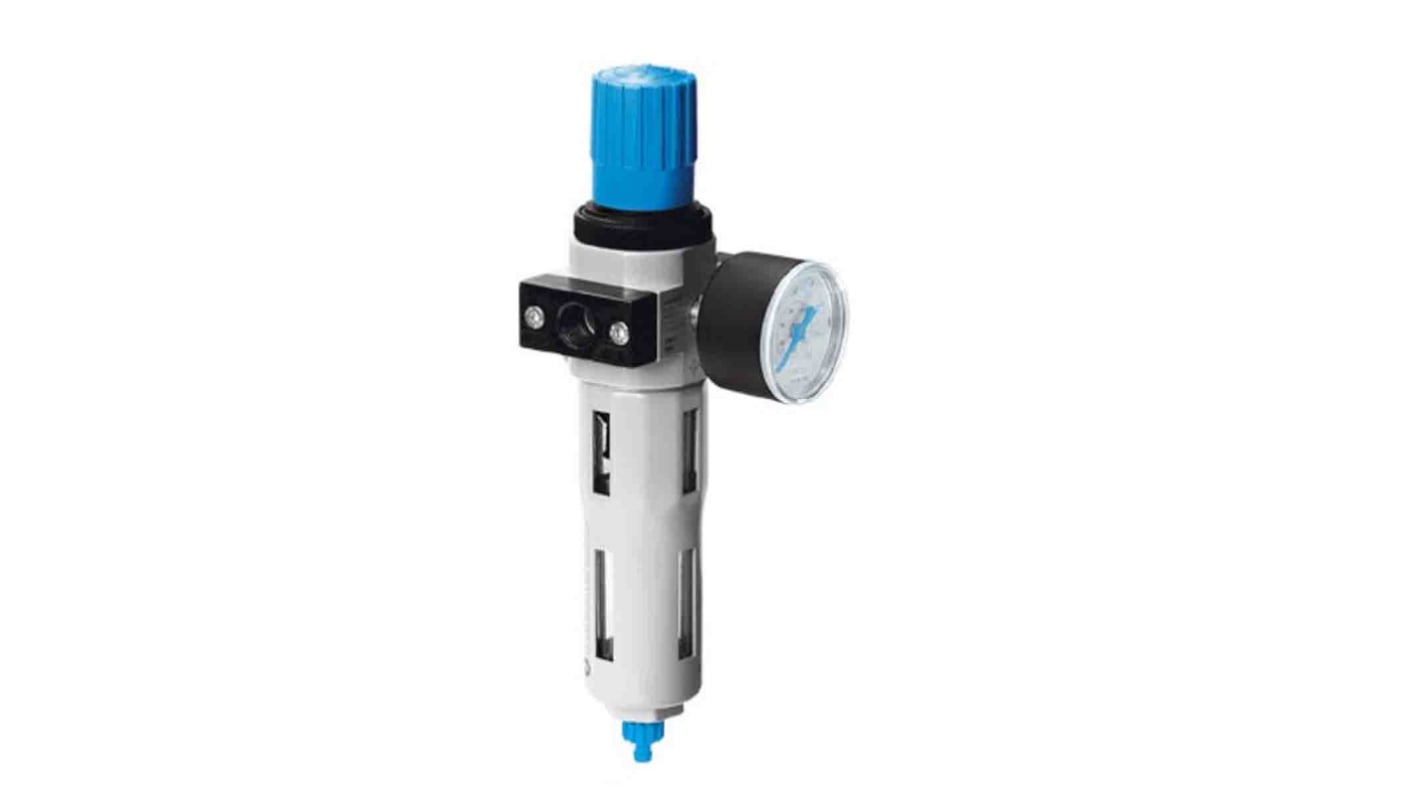

The Festo series D is a 1/2 port connection filter regulator with metal bowl guard and pressure gauge. It has 40μm degree of filtration with manual condensate drain. It has rotary knob with lock.

MIDI(55mm) pneumatic connector
Assembly position - vertical +/- 5°
