Festo MSB Filter Regulator, 40 μm, 1/2 in, Manual, 18 bar, 8025359
- RS Stock No.:
- 136-7056
- Distrelec Article No.:
- 301-69-030
- Mfr. Part No.:
- MSB6-1/2:C3:J1:D14-WP
- Brand:
- Festo
Subtotal (1 unit)*
£459.57
(exc. VAT)
£551.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £459.57 |
*price indicative
- RS Stock No.:
- 136-7056
- Distrelec Article No.:
- 301-69-030
- Mfr. Part No.:
- MSB6-1/2:C3:J1:D14-WP
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Filter Regulator | |
| Port Size | 1/2 in | |
| Maximum Flow Rate | 4000L/min | |
| Maximum Operating Pressure | 18 bar | |
| Connection Thread Standard | G | |
| Series | MSB | |
| Drain Type | Manual | |
| Filtration Size | 40μm | |
| Pressure Gauge Port Size | 1/2 in | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | ISO, RoHS | |
| Bowl Material | Plastic | |
| Pressure Gauge Port Thread Standard | G | |
| Model Number | 8025359 | |
| Pressure Setting Range | 0.8 to 18 bar | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Filter Regulator | ||
Port Size 1/2 in | ||
Maximum Flow Rate 4000L/min | ||
Maximum Operating Pressure 18 bar | ||
Connection Thread Standard G | ||
Series MSB | ||
Drain Type Manual | ||
Filtration Size 40μm | ||
Pressure Gauge Port Size 1/2 in | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals ISO, RoHS | ||
Bowl Material Plastic | ||
Pressure Gauge Port Thread Standard G | ||
Model Number 8025359 | ||
Pressure Setting Range 0.8 to 18 bar | ||
- COO (Country of Origin):
- HU

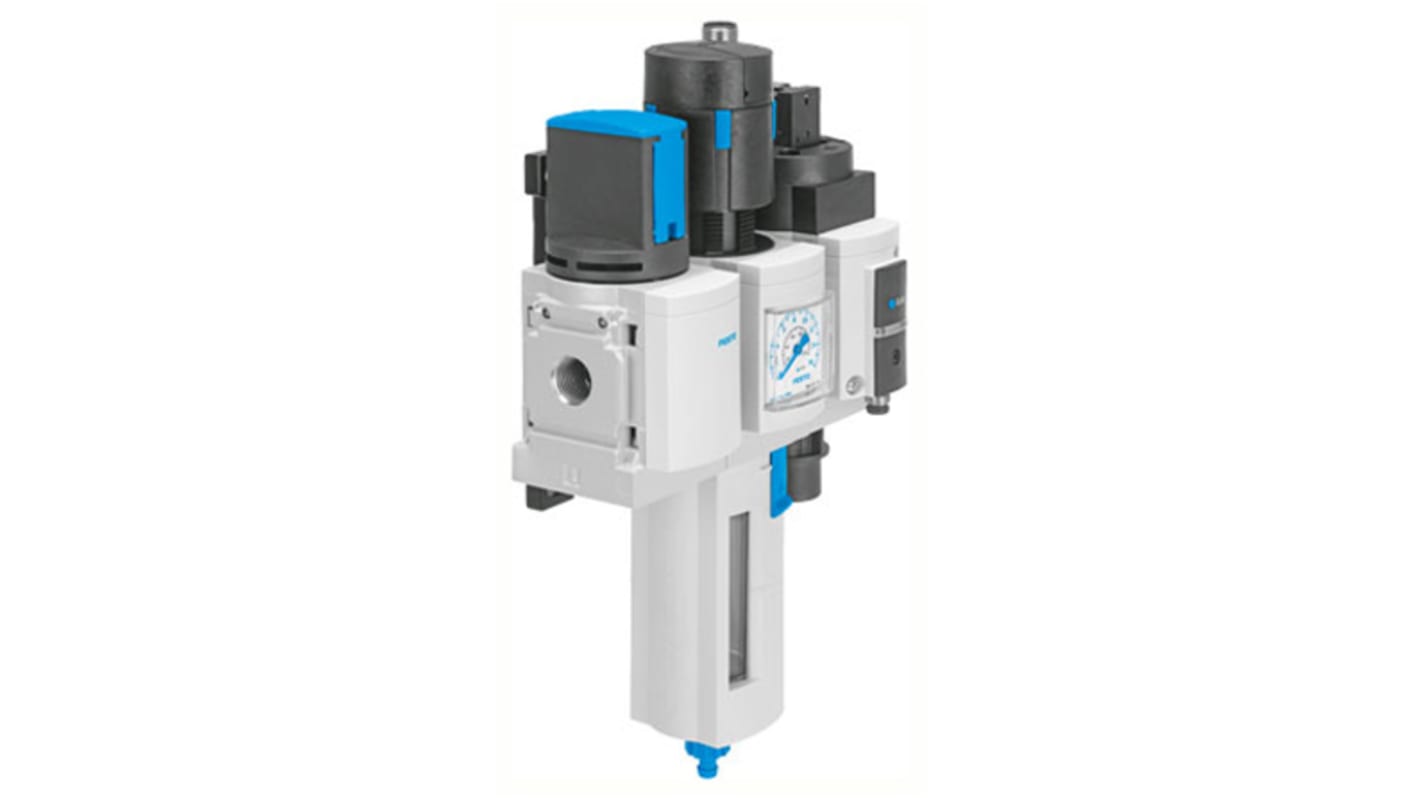

Festo Filter Regulator, Plastic Bowl Guard, 18 Bar Maximum Operating Pressure - MSB6-1/2:C3:J1:D14-WP
Want to make light work of controlling the flow speed of compressed gases and liquids? Put this filter regulator from Festo in charge. The unit is managed with a simple dial and incorporates a 40μm filter, keeping your flow pure so your equipment runs smoothly for longer. Thanks to a robust polycarbonate bowl and a housing made from durable die-cast aluminium, you can rest easy knowing this is a long-lasting filtering and flow-control solution.
Features & Benefits
• Broad operating pressure range between 0.8 and 18 bar for versatility
• Standard G1/2 port for easy installation
• Nominal flow rate of 4000L/min is suitable for fast-flowing systems
• Actuator lock can be used to ensure that flow remains constant
Applications
• Industrial automation
• Fluid delivery systems
• Pneumatic tools
In what temperatures can I use this filter regulator?
This filter has a wide operating temperature range between 0°C and +50°C, so you can use it in demanding environments.
How do I drain condensate from the filter?
This product has a manual rotary drain feature for the easy removal of build-up in the filter.
